Turbine
Ceiling Surface 4545
Product Companion
Turbine
Ceiling Surface
Product Characteristics:
DESIGN:
Already popular, we just made the clean and austere Point projector more intense.

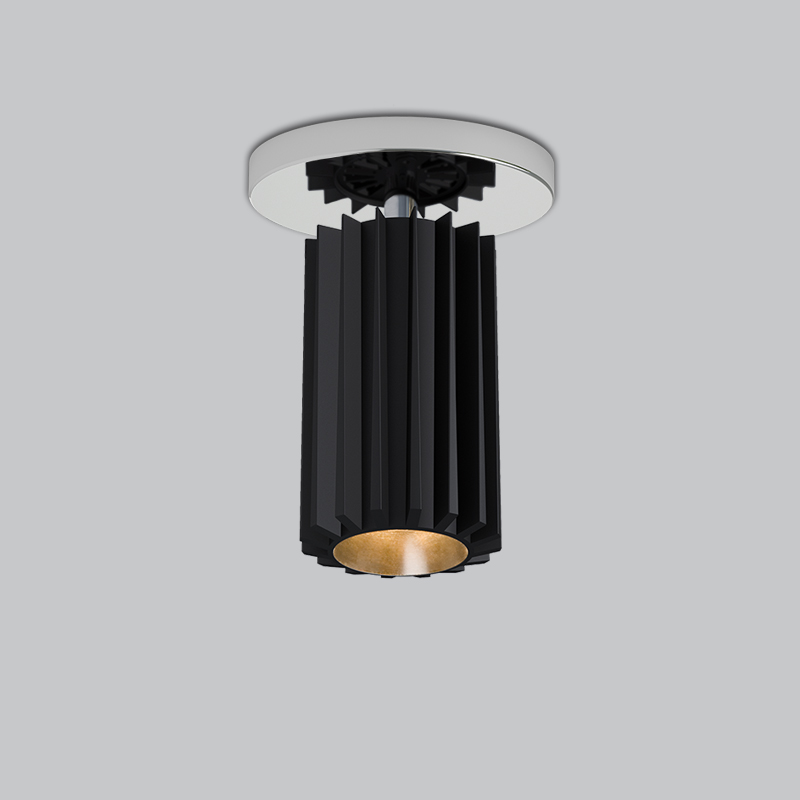

At the same time, we have added the similar sized Turbine, which has exposed black fins
for a cool look that really grinds out the lumens. These two projectors offer awesome thermal management design, and accommodate the new high intensity light engine which provides up to 1615 delivered lumens (18W - 40° optic).
INSTALLATION:
Both the Point and Turbine float on a round chrome ceiling mounted canopy and are
supplied without swivel.
STRUCTURE:
CNC machined aluminum housing with black or clear satin anodized finish. Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
OPTIC:
17° or 48° beam angle total internal reflecting (TIR) multi-lens (8W LED version). 20° or 40° beam angles total internal reflexion (TIR) for 11W and 18W LED version.
Finish CHR
Already popular, we just made the clean and austere Point projector more intense.
At the same time, we have added the similar sized Turbine, which has exposed black fins
for a cool look that really grinds out the lumens. These two projectors offer awesome thermal management design, and accommodate the new high intensity light engine which provides up to 1615 delivered lumens (18W - 40° optic).
INSTALLATION:
Both the Point and Turbine float on a round chrome ceiling mounted canopy and are
supplied without swivel.
STRUCTURE:
CNC machined aluminum housing with black or clear satin anodized finish. Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
OPTIC:
17° or 48° beam angle total internal reflecting (TIR) multi-lens (8W LED version). 20° or 40° beam angles total internal reflexion (TIR) for 11W and 18W LED version.
Finish CHR
Available Light Sources
LED.11.30.20.DP
11W, LED 3000K (Warm), 20° (Beam angle) PHASE DIMMING 120V
LED.11.30.20.DV
11W, LED 3000K (Warm), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.11.30.40.DP
11W, LED 3000K (Warm), 40° (Beam angle) PHASE DIMMING 120V
LED.11.30.40.DV
11W, LED 3000K (Warm), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.20.DP
18W, LED 3000K (Warm), 20° (Beam angle) PHASE DIMMING 120V
LED.18.30.20.DV
18W, LED 3000K (Warm), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.40.DP
18W, LED 3000K (Warm), 40° (Beam angle) PHASE DIMMING 120V
LED.18.30.40.DV
18W, LED 3000K (Warm), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.11.35.20.DP
11W, LED 3500K (Natural), 20° (Beam angle) PHASE DIMMING 120V
LED.11.35.20.DV
11W, LED 3500K (Natural), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.11.35.40.DP
11W, LED 3500K (Natural), 40° (Beam angle) PHASE DIMMING 120V
LED.11.35.40.DV
11W, LED 3500K (Natural), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.20.DP
18W, LED 3500K (Natural), 20° (Beam angle) PHASE DIMMING 120V
LED.18.35.20.DV
18W, LED 3500K (Natural), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.40.DP
18W, LED 3500K (Natural), 40° (Beam angle) PHASE DIMMING 120V
LED.18.35.40.DV
18W, LED 3500K (Natural), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.11.40.20.DP
11W, LED 4000K (Neutral), 20° (Beam angle) PHASE DIMMING 120V
LED.11.40.20.DV
11W, LED 4000K (Neutral), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.11.40.40.DP
11W, LED 4000K (Neutral), 40° (Beam angle) PHASE DIMMING 120V
LED.11.40.40.DV
11W, LED 4000K (Neutral), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.20.DP
18W, LED 4000K (Neutral), 20° (Beam angle) PHASE DIMMING 120V
LED.18.40.20.DV
18W, LED 4000K (Neutral), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.40.DP
18W, LED 4000K (Neutral), 40° (Beam angle) PHASE DIMMING 120V
LED.18.40.40.DV
18W, LED 4000K (Neutral), 40° (Beam angle) 0-10V DIMMING 120-277V
