Product Characteristics:
Design :

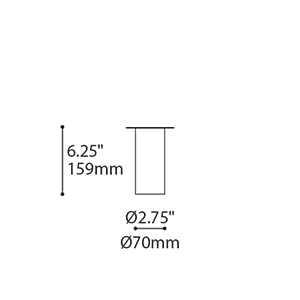

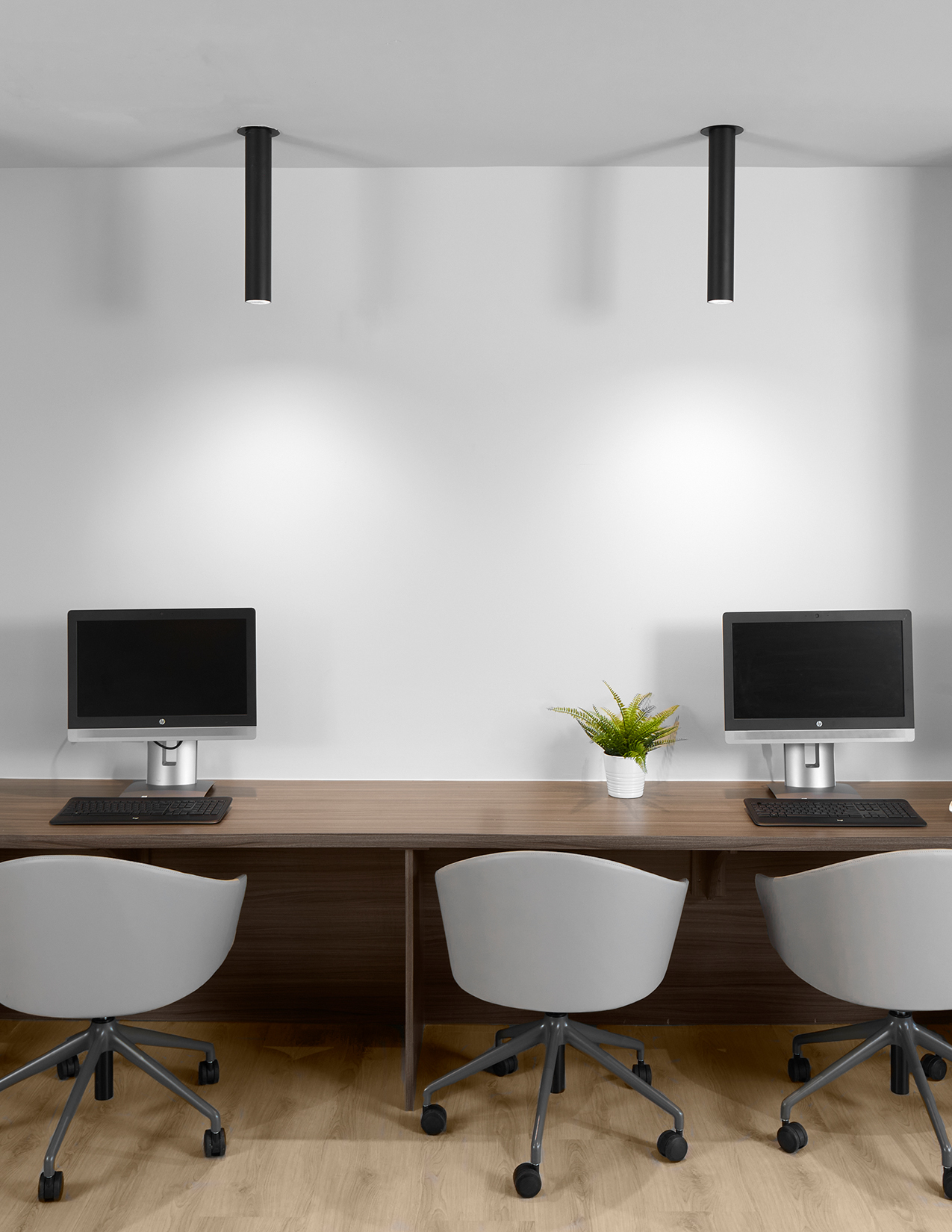

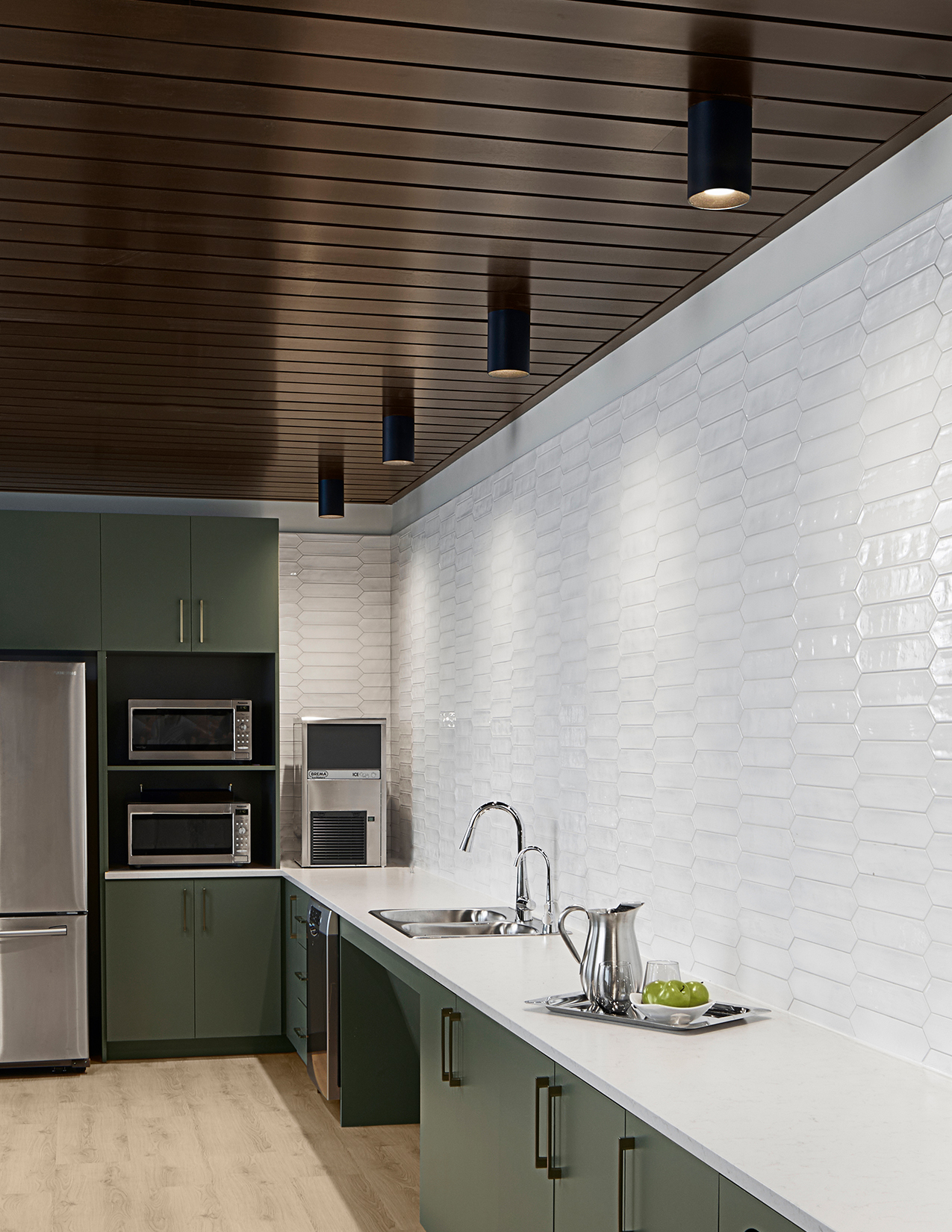

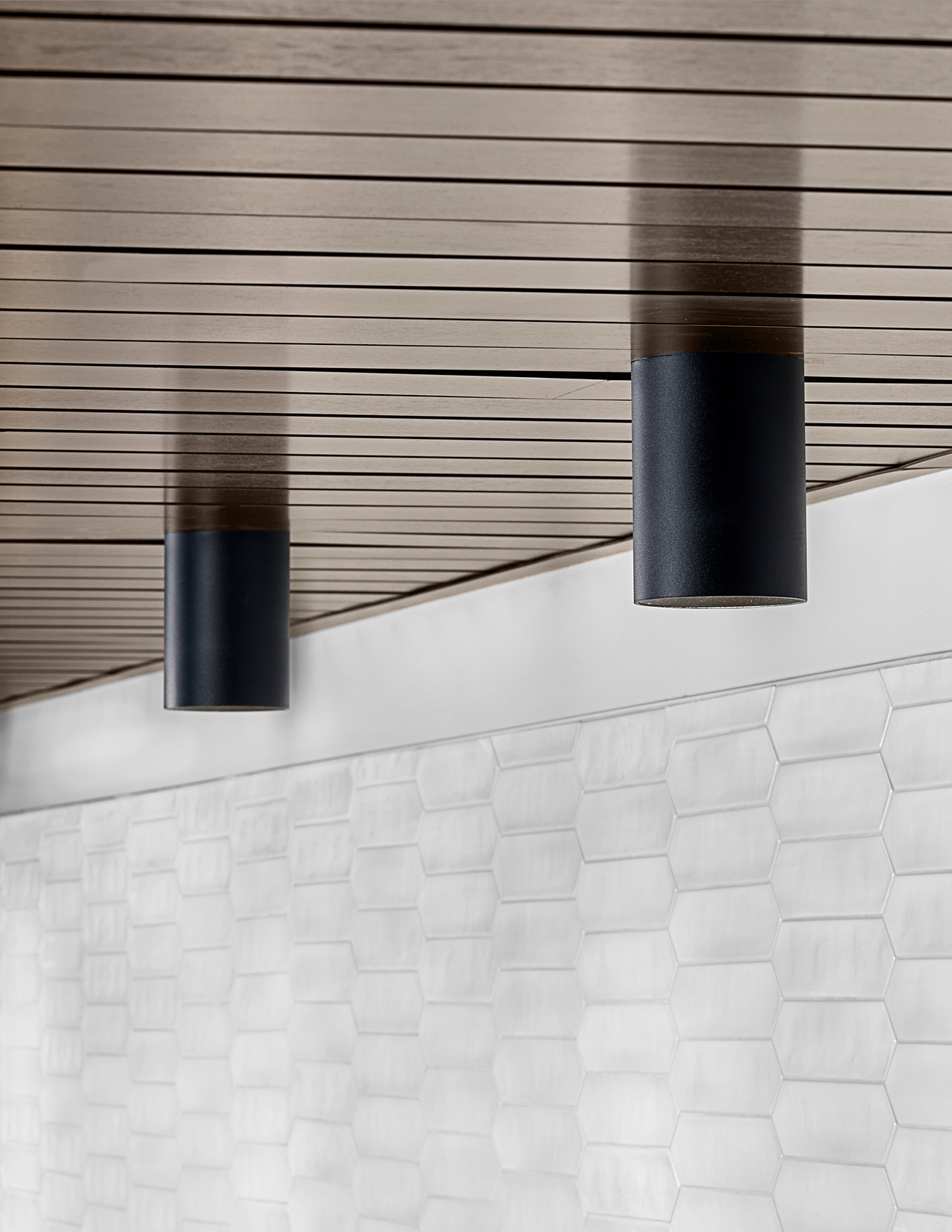

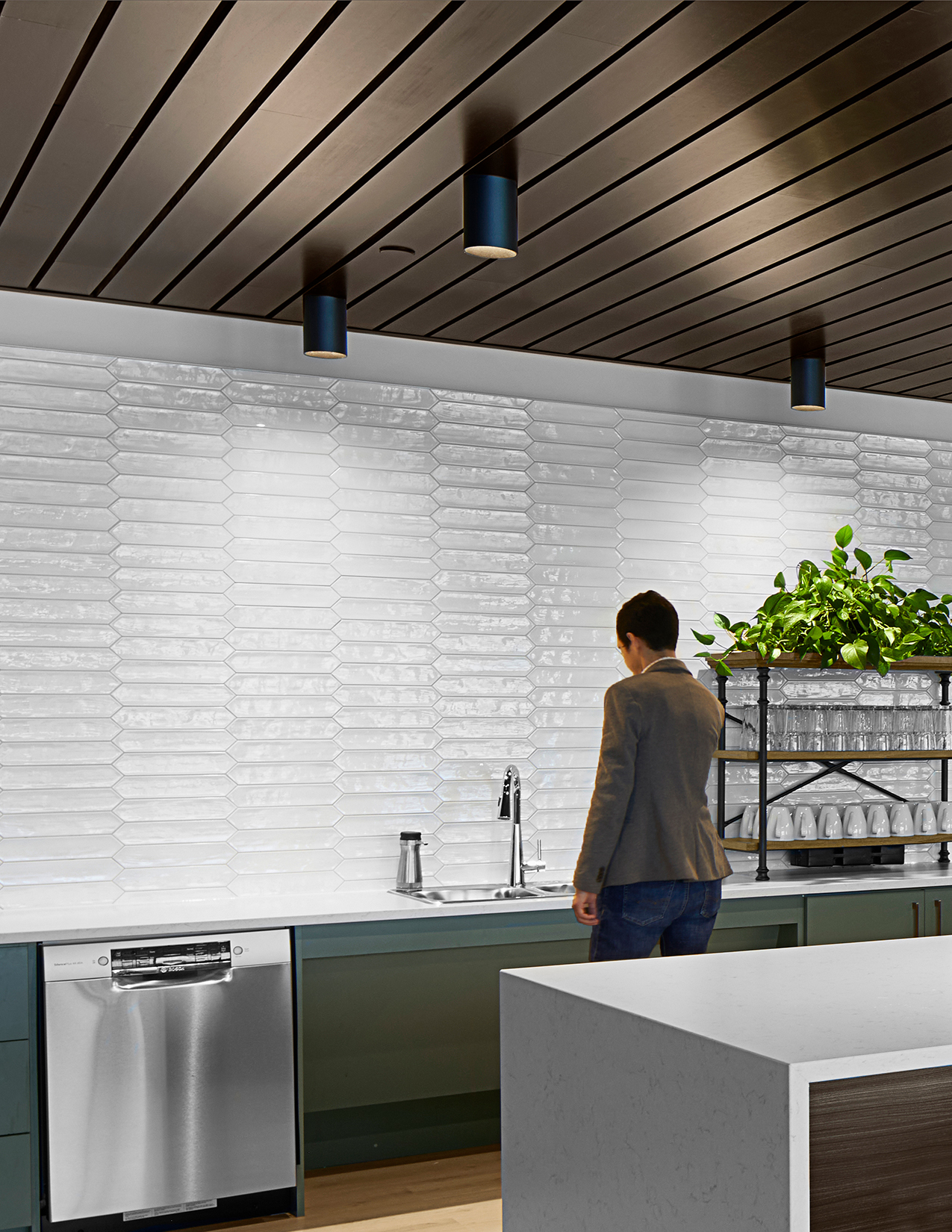

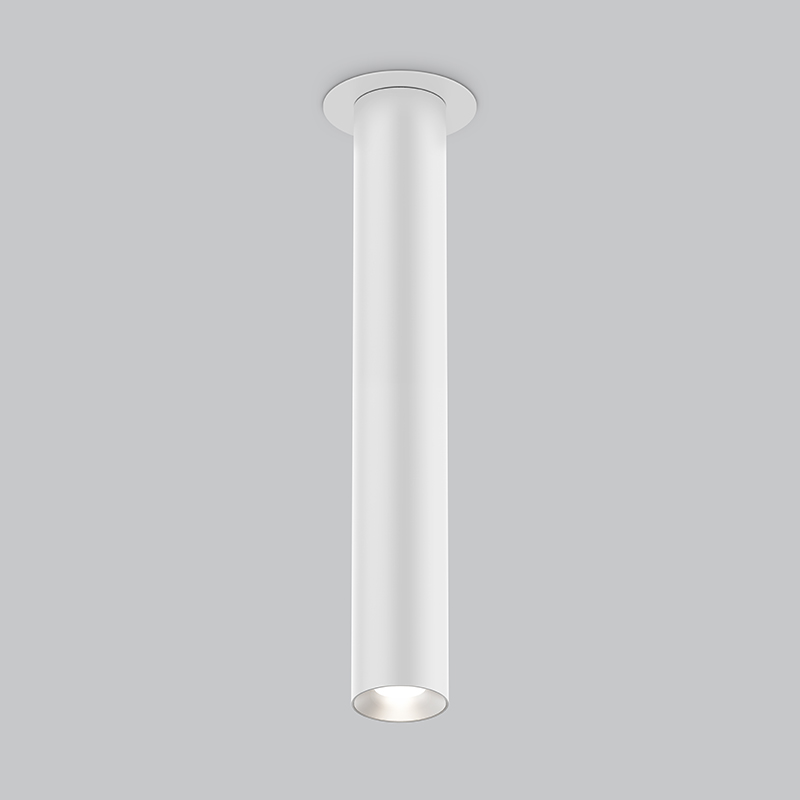

Scout is the simplest of cylinders. The exterior is clean with no visible seams or hardware. Inside, a wealth of technology remains hidden. With its 2 diameters, 3 lengths, 5 tube colors and 3 mounting options, Scout is a powerful design asset.
Installation :

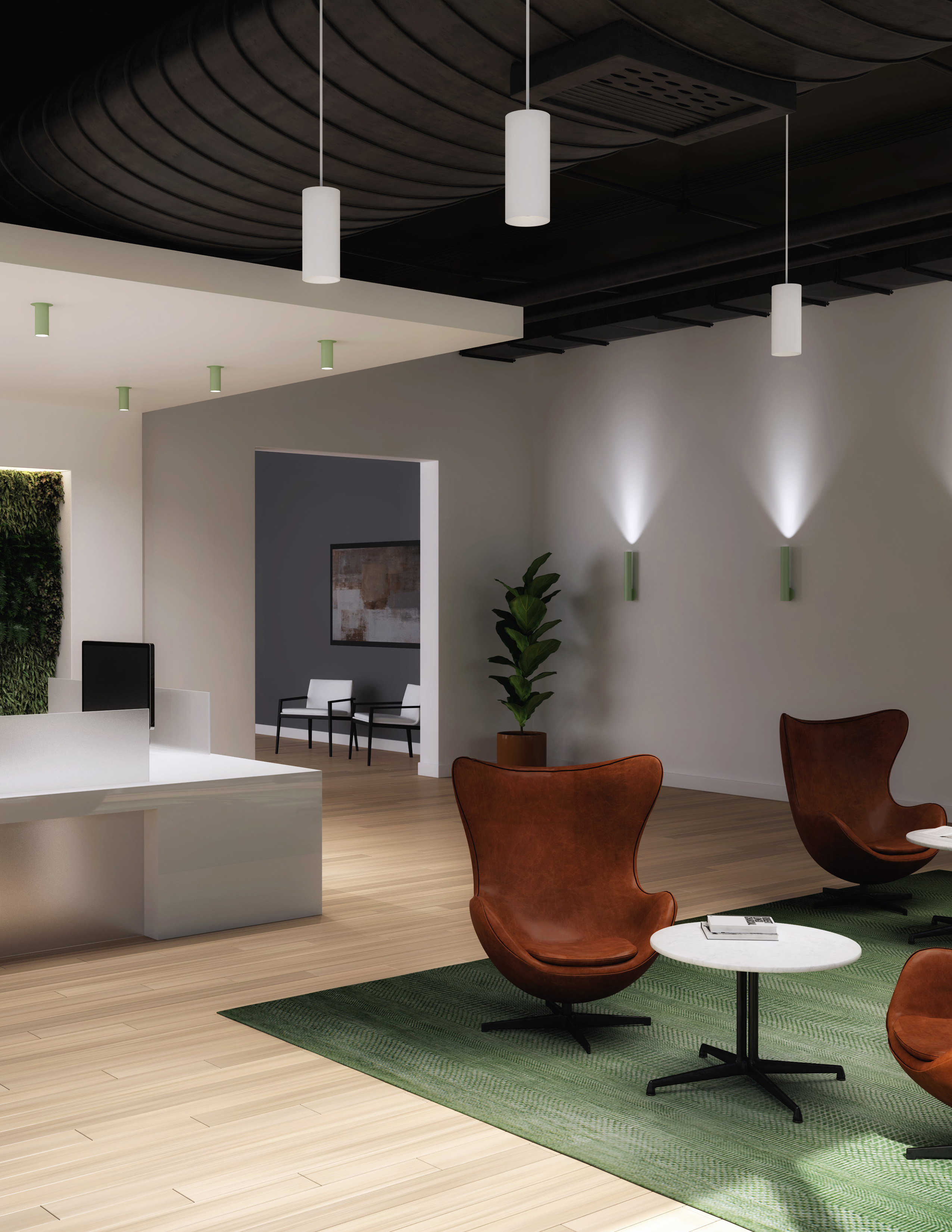

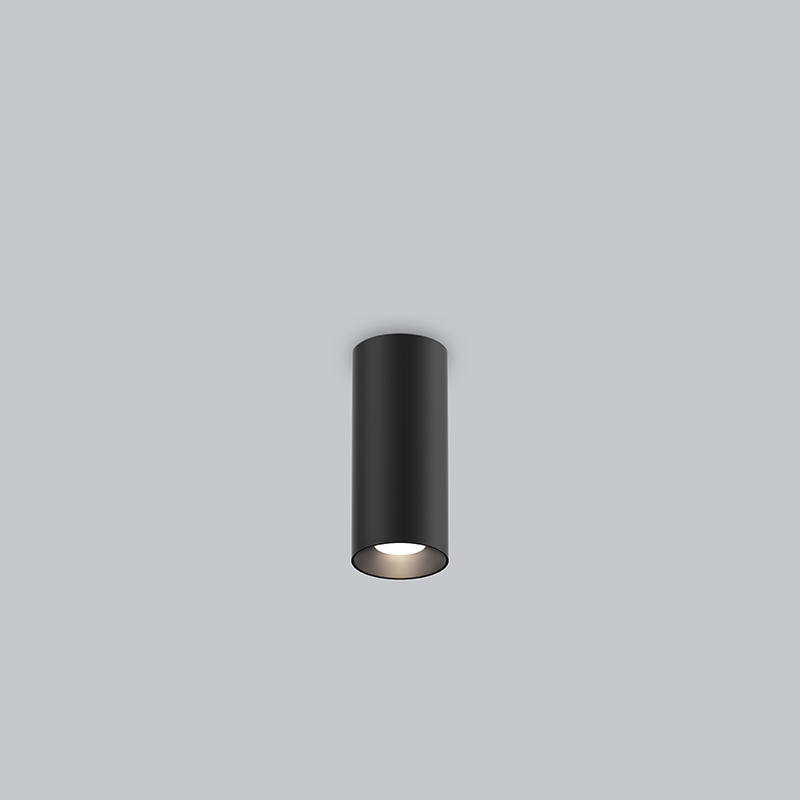

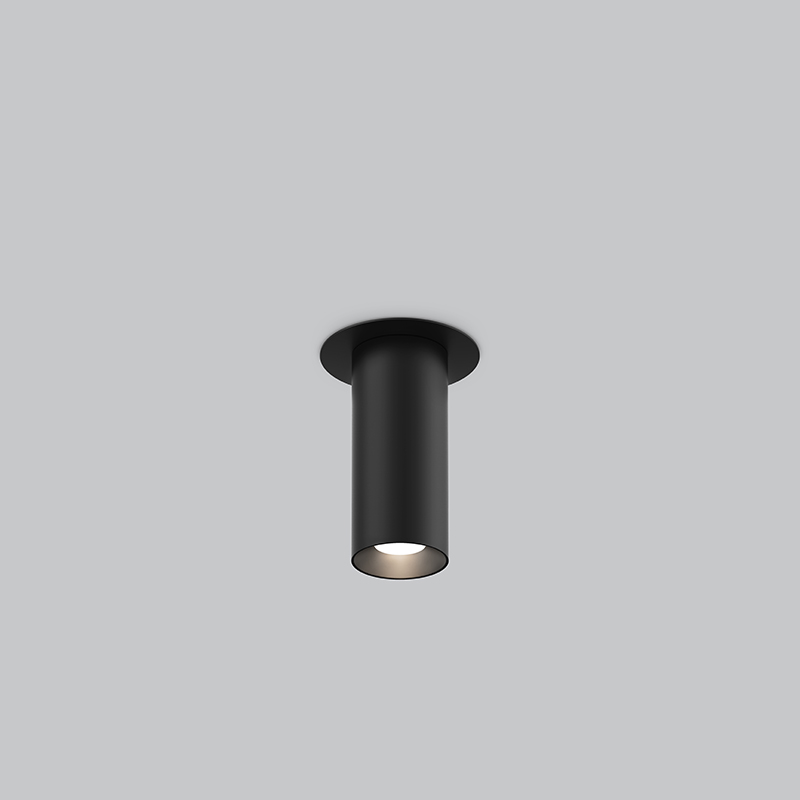

Designed with a « twist and lock » installation system for easy installation without visible fasteners. Scout can be installed with (INT) or without (RDP) flat canopy. Also available as pendant or wall mount.
Light Source :
Available with regular (LED) and high output (LED.HO), combined with standard dimming option: either phase (DP) or 0-10V (DV). Emergency option available.
Structure :

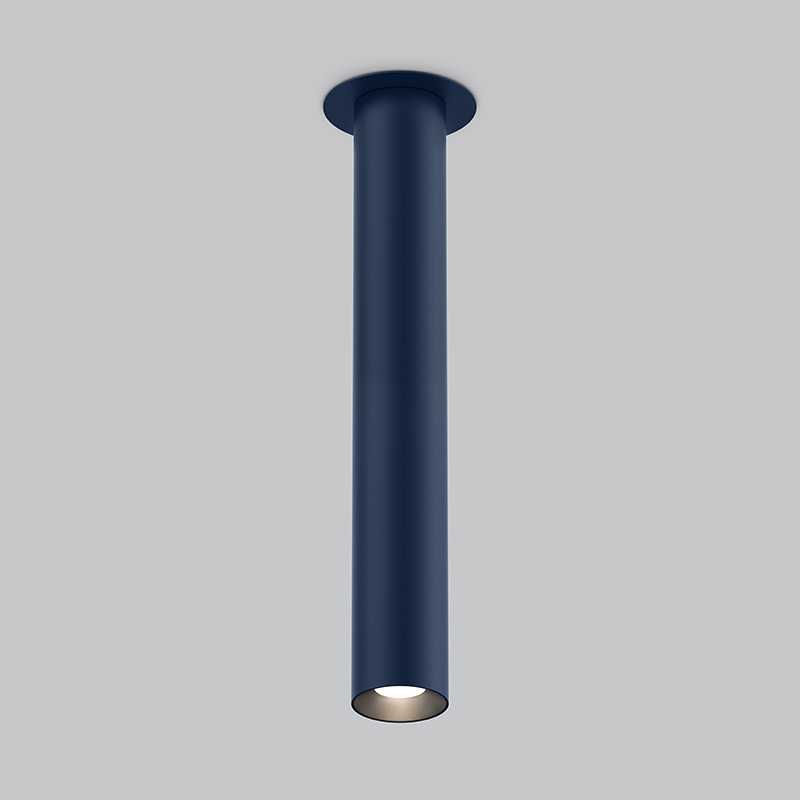

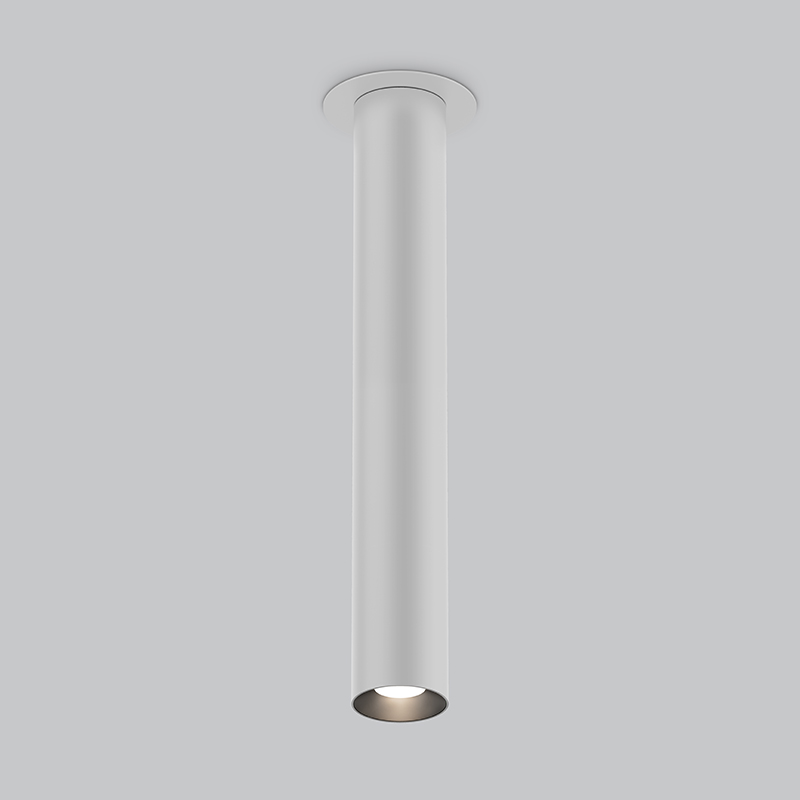

Machined aluminum tube offered with textured black, white, light gray, navy blue or pale green finish. Scout can be specified with 2 baffle finishes: white or black.
Optic :
Designed with narrow or medium beam angle, to meet all applications. Optical choice of clear, frosted or honeycomb lenses available.
Finish BLKE |
LGE |
NBE |
PGE |
WHE
nLight® Air Enabled
Available Light Sources
LED.27.HO.DP
12W, LED HO 2700K (Very Warm) PHASE DIMMING 120V
LED.27.HO.DV
12W, LED HO 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.DP
8W, LED 2700K (Very Warm) PHASE DIMMING 120V
LED.27.DV
8W, LED 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.HO.30.DP
12W, LED HO 3000K (Warm) PHASE DIMMING 120V
LED.30.HO
12W, LED HO 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.DP
8W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
8W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.HO.DV
12W, LED HO 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.DP
8W, LED 3500K (Natural) PHASE DIMMING 120V
LED.35.DV
8W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.40.HO.DP
12W, LED HO 4000K (Neutral) PHASE DIMMING 120V
LED.40.HO.DV
12W, LED HO 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.DP
8W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
8W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
LED.35.HO.DP
12W, LED HO 3500K (Natural) PHASE DIMMING 120V
