Nano
Ceiling Surface 4533
Product Companion
Nano
Ceiling Surface
Product Characteristics:
DESIGN:

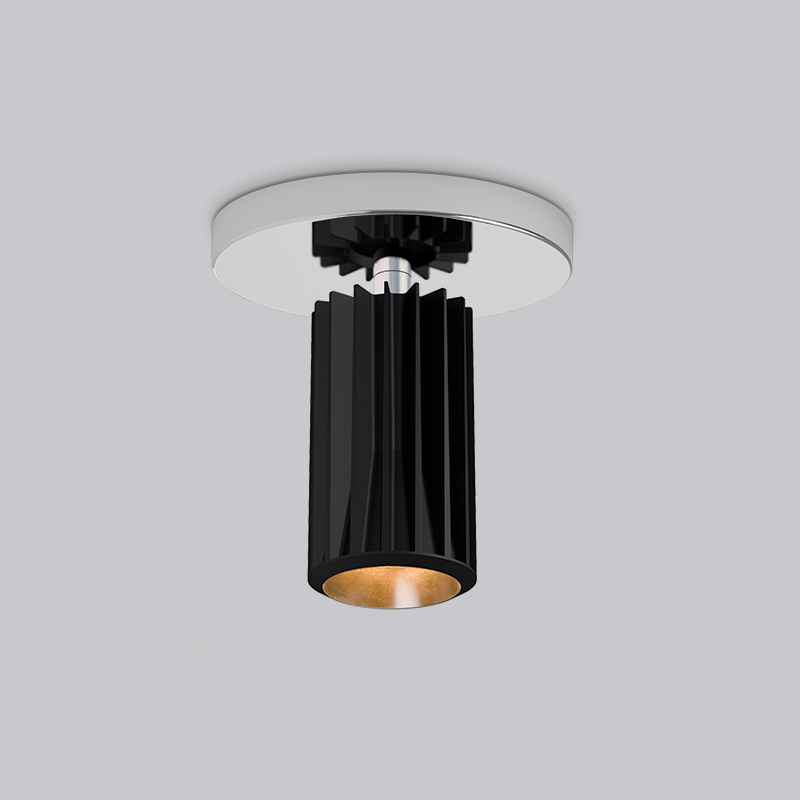

Nano and his little brother, Pico, pack a big punch in tiny formats. Their industrial look
with visible heat sink allows for an impressive LED performance.
INSTALLATION:
Both Pico and Nano float on a round ceiling mounted canopy and are supplied without swivel.
LIGHT SOURCE:
4W and 8W LED with 0-10V (DV) or phase (DP) dimming versions available.
STRUCTURE:
Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black powder coat finish.
OPTIC:
17° or 48° beam angle total internal reflecting (TIR) multi-lens. Finish CHR
Nano and his little brother, Pico, pack a big punch in tiny formats. Their industrial look
with visible heat sink allows for an impressive LED performance.
INSTALLATION:
Both Pico and Nano float on a round ceiling mounted canopy and are supplied without swivel.
LIGHT SOURCE:
4W and 8W LED with 0-10V (DV) or phase (DP) dimming versions available.
STRUCTURE:
Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black powder coat finish.
OPTIC:
17° or 48° beam angle total internal reflecting (TIR) multi-lens. Finish CHR
Available Light Sources
LED.4.30.17
4W, LED 3000K (Warm), 17° (Beam angle) 120-277V
LED.4.30.48
4W, LED 3000K (Warm), 48° (Beam angle) 120-277V
LED.8.30.17
8W, LED 3000K (Warm), 17° (Beam angle) 120V
LED.8.30.48
8W, LED 3000K (Warm), 48° (Beam angle) 120V
LED.4.35.17
4W, LED 3500K (Natural), 17° (Beam angle) 120-277V
LED.8.35.17
8W, LED 3500K Natural), 17° (Beam angle) 120V
LED.8.35.48
8W, LED 3500K (Natural), 48° (Beam angle) 120V
LED.4.40.17
4W, LED 4000K (Neutral), 17° (Beam angle) 120-277V
LED.4.40.48
4W, LED 4000K (Neutral), 48° (Beam angle) 120-277V
LED.8.40.17
8W, LED 4000K (Neutral), 17° (Beam angle) 120V
LED.8.40.48
8W, LED 4000K (Neutral), 48° (Beam angle) 120V
