Embed
Ceiling Surface 1200
Product Companion
Embed
Ceiling Surface
Product Characteristics:
DESIGN:

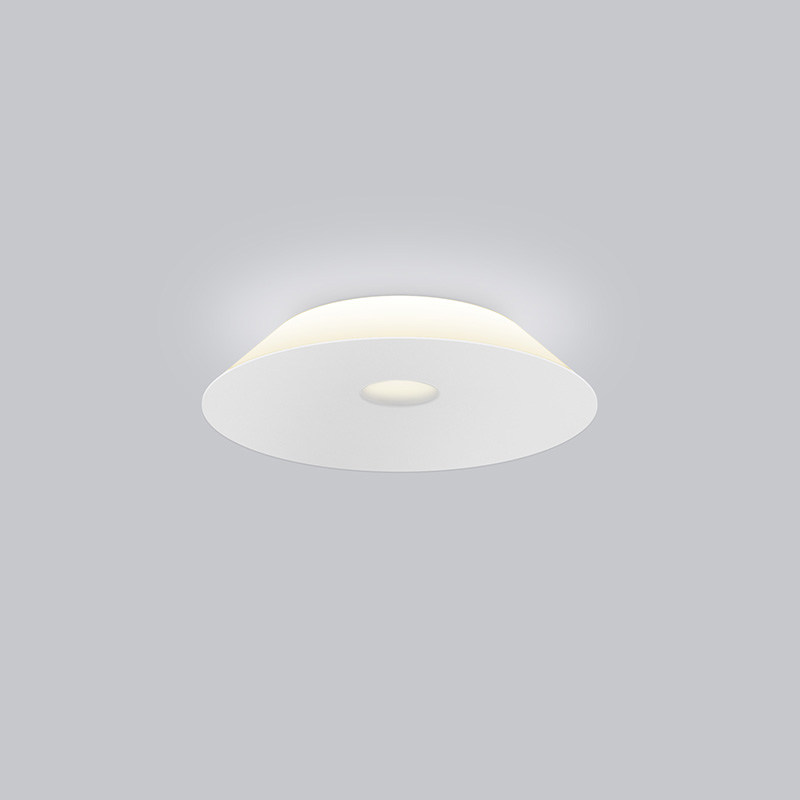

Embed is a tidy and minimalist package that offers two distinct light sources challenging the typical visual language associated with recessed spotlights. At its core is a powerful spot shielded by a transparent lens. Surrounding the core is a diffuser evenly lit by a secondary light source creating a soft semi-direct light visible on the surrounding ceiling.
LIGHT SOURCE:
A Chip-on-board (COB) LED as the central spotlight offered in 40° beam angle and a custom ring LED module which surrounds the fixture. Available with phase or 0-10V dimming or emergency option.
INSTALLATION:
The endless-screw feature enables a simple and firm installation in a variety of ceiling types, with thickness ranging from 0.375" (9.5mm) to 2.75" (70mm), allowing to safely install in renovation projects.
STRUCTURE:
Custom aluminum heatsink with precisely designed configurations and dimensions. It supports the spun aluminum reflector and a vacuum formed acrylic diffuser. Finish ANTE | WHE
Shade Finish: WH
Embed is a tidy and minimalist package that offers two distinct light sources challenging the typical visual language associated with recessed spotlights. At its core is a powerful spot shielded by a transparent lens. Surrounding the core is a diffuser evenly lit by a secondary light source creating a soft semi-direct light visible on the surrounding ceiling.
LIGHT SOURCE:
A Chip-on-board (COB) LED as the central spotlight offered in 40° beam angle and a custom ring LED module which surrounds the fixture. Available with phase or 0-10V dimming or emergency option.
INSTALLATION:
The endless-screw feature enables a simple and firm installation in a variety of ceiling types, with thickness ranging from 0.375" (9.5mm) to 2.75" (70mm), allowing to safely install in renovation projects.
STRUCTURE:
Custom aluminum heatsink with precisely designed configurations and dimensions. It supports the spun aluminum reflector and a vacuum formed acrylic diffuser. Finish ANTE | WHE
Shade Finish: WH
Available Light Sources
LED.27.DP
18W, LED 2700K (Very Warm) PHASE DIMMING 120V
LED.27.DV
18W, LED 2700K (Very Warml) 0-10V DIMMING 120-277V
LED.30.DP
18W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
18W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.35.DP
18W, LED 3500K (Natural) PHASE DIMMING 120V
LED.35.DV
18W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.40.DP
18W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
18W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
