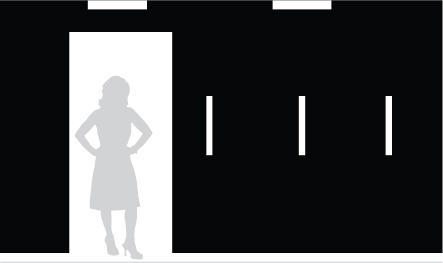

Proportion

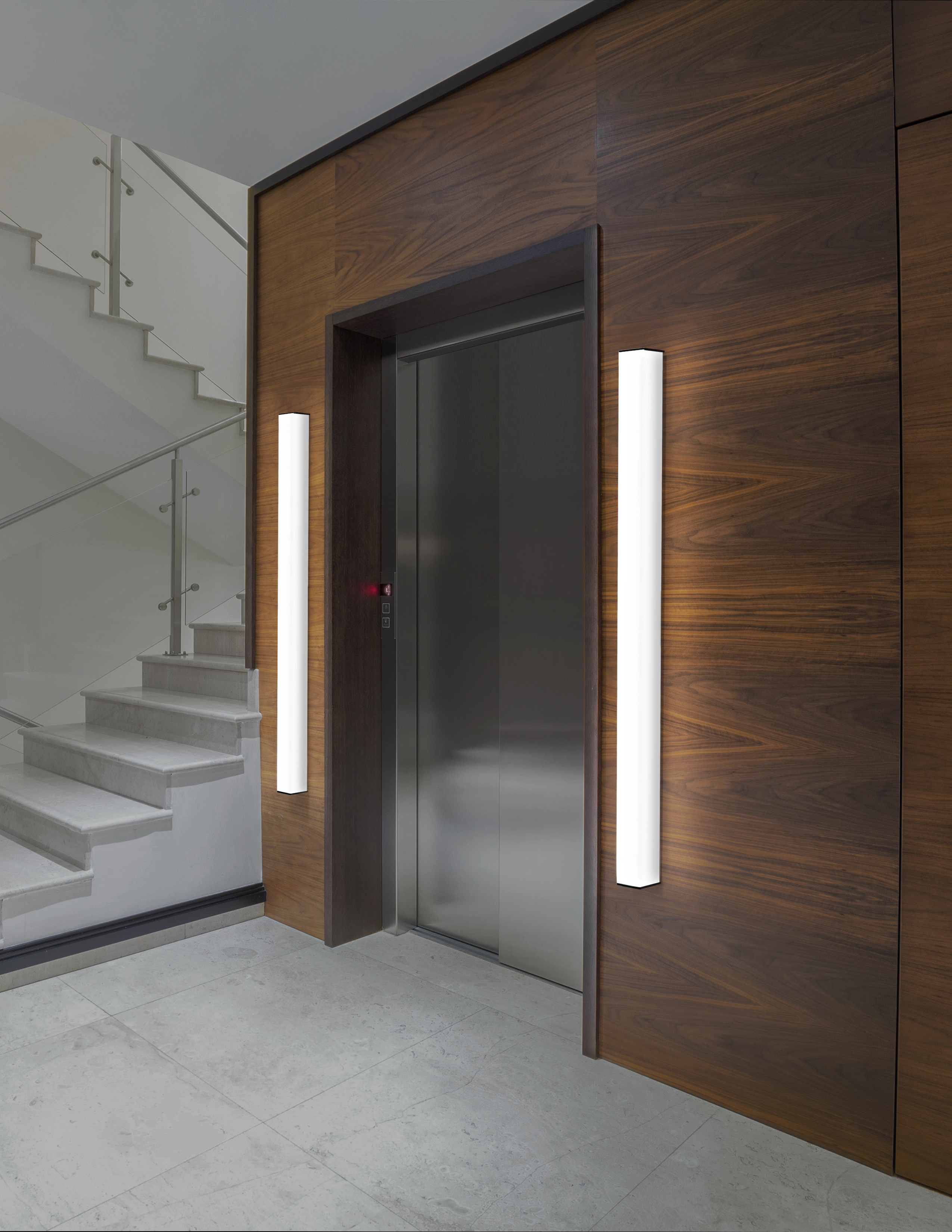

Application Shots
IES Files
Revit Files
EM Guide
nLight Guide
Accessories
Product Companion
STROKE
Wall Surface
Product Characteristics:
DESIGN:
Clean, sleek and slender profile with an encasing diffuser and minimal structure.
Available in several lengths.
LIGHT SOURCE:
High performance custom made LED strips with standard 0-10V dimming driver integrated within the fixture.
END CAPS:
Extruded aluminum structure with precision machined chromed end caps mechanically attached to structure without any exposed fasteners.
DIFFUSER:
Custom blended and extruded acrylic composite lens with snap-fit assembly. Shade Finish: FRO
Clean, sleek and slender profile with an encasing diffuser and minimal structure.
Available in several lengths.
LIGHT SOURCE:
High performance custom made LED strips with standard 0-10V dimming driver integrated within the fixture.
END CAPS:
Extruded aluminum structure with precision machined chromed end caps mechanically attached to structure without any exposed fasteners.
DIFFUSER:
Custom blended and extruded acrylic composite lens with snap-fit assembly. Shade Finish: FRO
nLight® Air Enabled
Available Light Sources
LED.27.HO.DP
15W, LED HO 2700K (Very Warm) PHASE DIMMING 120V
LED.27.HO.DV
15W, LED HO 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.HO.NLIGHT
15W, LED HO 2700K (Very Warm) NLight Wired 120-277V
LED.27.HO.NLTAIR2
15W, LED HO 2700K (Very Warm) NLight Air2 120-277V
LED.27.DP
7W, LED 2700K (Very Warm) PHASE DIMMING 120V
LED.27.DV
7W, LED 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.NLIGHT
7W, LED 2700K (Very Warm) NLight Wired 120-277V
LED.27.NLTAIR2
7W, LED 2700K (Very Warm) NLight Air2 120-277V
LED.30.HO.DP
15W, LED HO 3000K (Warm) PHASE DIMMING 120V
LED.30.HO.DV
15W, LED HO 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.HO.NLIGHT
15W, LED HO 3000K (Warm) NLight Wired 120-277V
LED.30.HO.NLTAIR2
15W, LED HO 3000K (Warm) NLight Air2 120-277V
LED.30.DP
7W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
7W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.NLIGHT
7W, LED 3000K (Warm) NLight Wired 120-277V
LED.30.NLTAIR2
7W, LED 3000K (Warm) NLight Air2 120-277V
LED.35.HO.DP
15W, LED HO 3500K (Natural) PHASE DIMMING 120V
LED.35.HO.DV
15W, LED HO 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.HO.NLIGHT
15W, LED HO 3500K (Natural) NLight Wired 120-277V
LED.35.HO.NLTAIR2
15W, LED HO 3500K (Natural) NLight Air2 120-277V
LED.35.DP
7W, LED 3500K (Natural) PHASE DIMMING 120V
LED.35.DV
7W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.NLIGHT
7W, LED 3500K (Natural) NLight Wired 120-277V
LED.35.NLTAIR2
7W, LED 3500K (Natural) NLight Air2 120-277V
LED.40.HO.DP
15W, LED HO 4000K (Neutral) PHASE DIMMING 120V
LED.40.HO.DV
15W, LED HO 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.HO.NLIGHT
15W, LED HO 4000K (Neutral) NLight Wired 120-277V
LED.40.HO.NLTAIR2
15W, LED HO 4000K (Neutral) NLight Air2 120-277V
LED.40.DP
7W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
7W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.NLIGHT
7W, LED 4000K (Neutral) NLight Wired 120-277V
LED.40.NLTAIR2
7W, LED 4000K (Neutral) NLight Air2 120-277V
