PLAZA

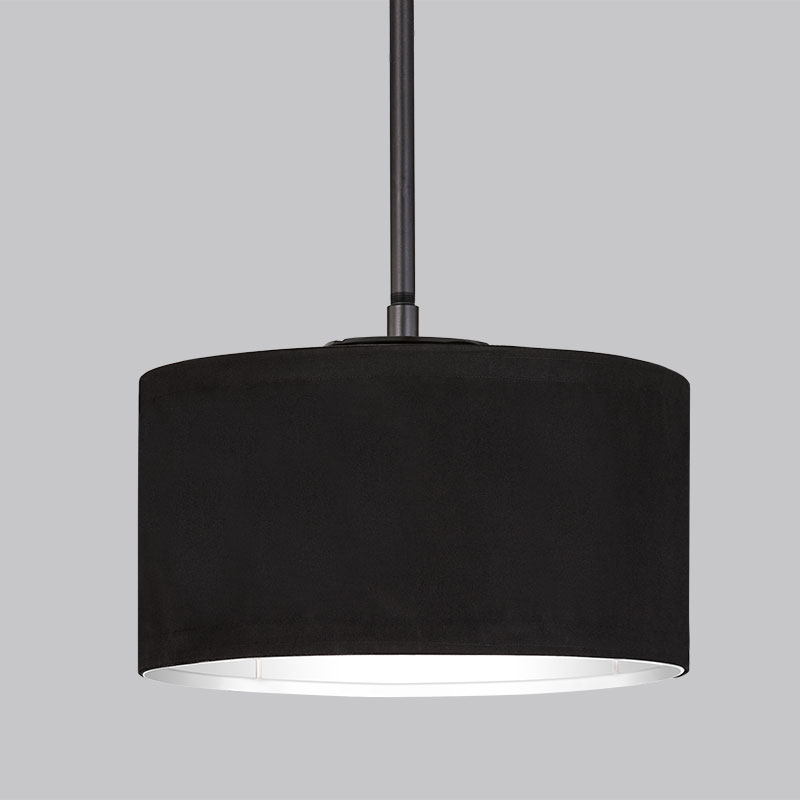

Ceiling Suspended 4266B-TAS
Product Companion
PLAZA
Ceiling Suspended
Product Characteristics:
DESIGN:
Plaza is a weatherproof and UV resistant fabric drum shade around a water tight light engine.
INSTALLATION:

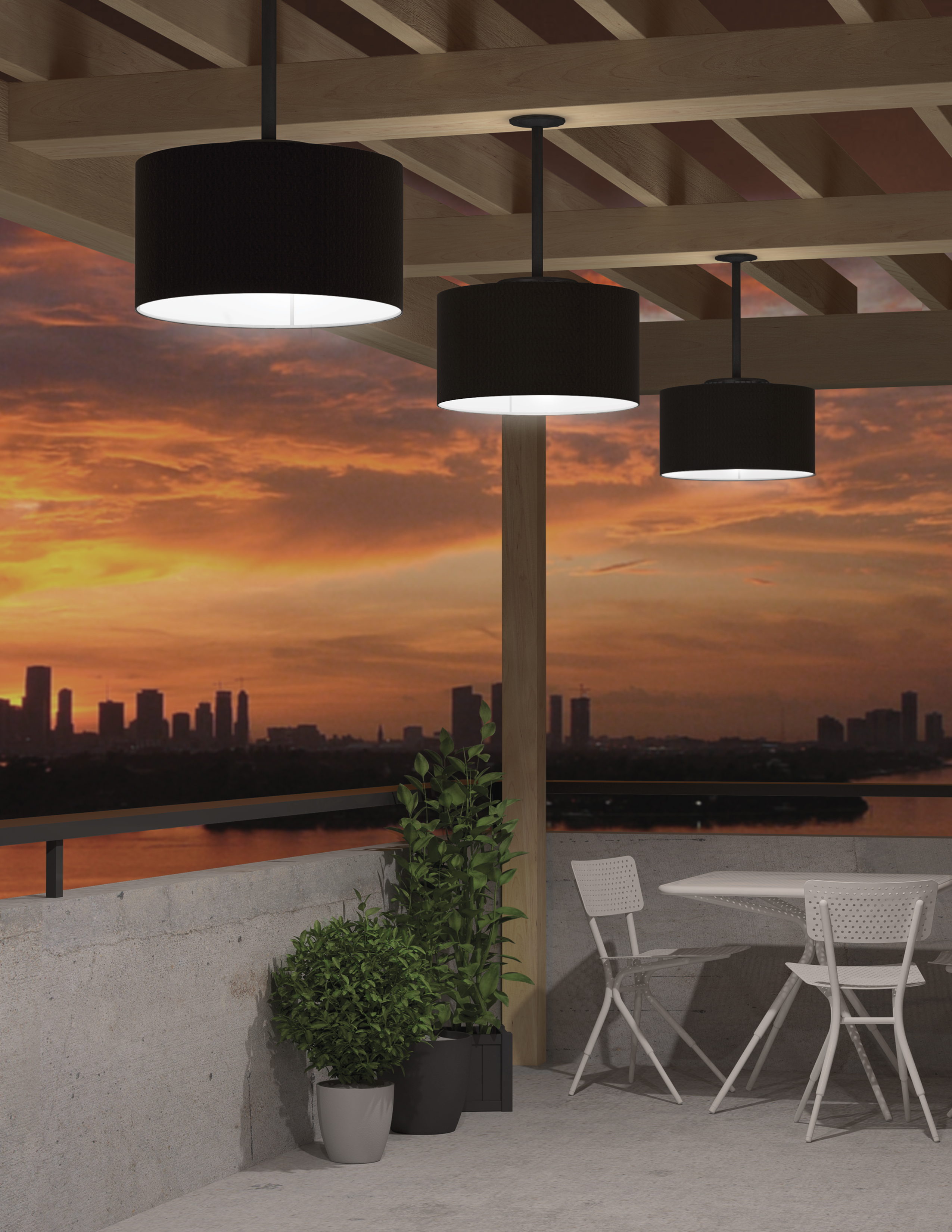

This pendant on stem can be installed both indoors and outdoors.
LIGHT SOURCE:
13W and 26W LED Chip-on-board (COB) emitter. Electronic dimming available on all models.
STRUCTURE:
Sturdy die cast aluminum housing, designed with a die-cut silicone gasket mechanically compressed, for weather protection.
SHADE:
Washable and fade-resistant fabric on a powder coated stainless steel frame shade.
DIFFUSER:
Translucent white rotomolded MDPE diffuser.
CERTIFIED:
CSA Listed to US and Canadian safety standards; 25°C ambient and wet-locations.
IP64 rated
Finish BLKE
Shade Finish: BEF
Plaza is a weatherproof and UV resistant fabric drum shade around a water tight light engine.
INSTALLATION:
This pendant on stem can be installed both indoors and outdoors.
LIGHT SOURCE:
13W and 26W LED Chip-on-board (COB) emitter. Electronic dimming available on all models.
STRUCTURE:
Sturdy die cast aluminum housing, designed with a die-cut silicone gasket mechanically compressed, for weather protection.
SHADE:
Washable and fade-resistant fabric on a powder coated stainless steel frame shade.
DIFFUSER:
Translucent white rotomolded MDPE diffuser.
CERTIFIED:
CSA Listed to US and Canadian safety standards; 25°C ambient and wet-locations.
IP64 rated
Finish BLKE
Shade Finish: BEF
Available Light Sources
LED.30.DP
13W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
13W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.DP
26W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
26W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.13.35.DP
13W, LED 3500K (Natural) PHASE DIMMING 120V
LED.13.35.DV
13W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.DP
26W, LED 3500K (Natural) PHASE DIMMING 120V
LED.35.DV
26W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.40.DP
13W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
13W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.DP
26W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
26W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
