Plate
Wall Surface 3149
Product Companion
Plate
Wall Surface
Product Characteristics:
DESIGN:
A stark floating statement, this indirect LED wall fixture exemplifies minimalist design.
Plate is available with this simple yet lovely version and with the extended double light source version. Plate is ADA compliant.
INSTALLATION:

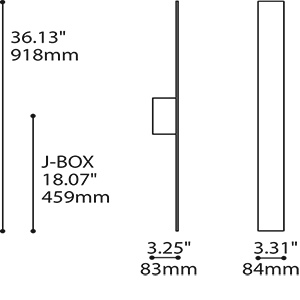

Discreet installation on 2.00" x 3.00" (50 x 75mm) outlet box.
LIGHT SOURCE:
Linear LED strips with self-modulating temperature control
for maximum performance. Available with 0-10V dimming.
HOUSING:
Die-formed steel with chrome plated finish.
DIFFUSER:
CNC machined aluminum plate with white architectural grade fine texture finish
or satin anodized finish. Finish CHR
Shade Finish: S A | WHE
A stark floating statement, this indirect LED wall fixture exemplifies minimalist design.
Plate is available with this simple yet lovely version and with the extended double light source version. Plate is ADA compliant.
INSTALLATION:
Discreet installation on 2.00" x 3.00" (50 x 75mm) outlet box.
LIGHT SOURCE:
Linear LED strips with self-modulating temperature control
for maximum performance. Available with 0-10V dimming.
HOUSING:
Die-formed steel with chrome plated finish.
DIFFUSER:
CNC machined aluminum plate with white architectural grade fine texture finish
or satin anodized finish. Finish CHR
Shade Finish: S A | WHE
Available Light Sources
LED.30
7W, LED 3000K (Warm) 120-277V
LED.30.DV
7W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.35
7W, LED 3500K (Natural) 120-277V
LED.35.DV
7W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.40
7W, LED 4000K (Neutral) 120-277V
LED.40.DV
7W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
