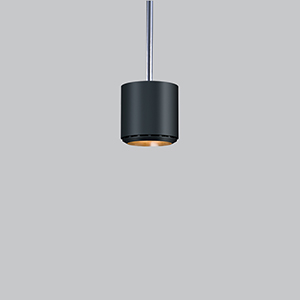

Pixel
Ceiling Suspended 4026
Product Companion
Pixel
Ceiling Suspended
Product Characteristics:
DESIGN:
Pixel is the smallest in our line of minimalist projectors. The cleverly integrated heat sink provides a beautiful front edge detail and allows for incredible LED performance in a mini-projector.
LIGHT SOURCE:
4W and 8W LED with 0-10v (DV) or Phase (DP) dimming versions available.
OPTIC:
17° or 48° Beam Angle Total Internal Reflecting (TIR) Multi-lens.
STRUCTURE:
CNC machined aluminium housing with black , white or clear satin finish. Die-cast aluminium heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
INSTALLATION:

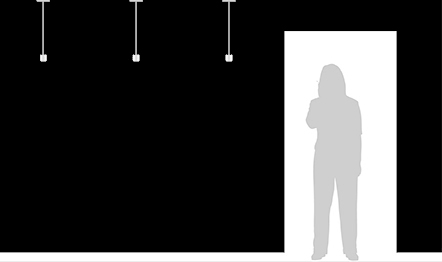

Available on canopy or track mount adaptor, the suspended version of Pixel is mounted on a field adjustable 6mm stem. Projector feature a high performance spring tension swivel. Finish CHR
Shade Finish: BLKA | S A | WHE
Pixel is the smallest in our line of minimalist projectors. The cleverly integrated heat sink provides a beautiful front edge detail and allows for incredible LED performance in a mini-projector.
LIGHT SOURCE:
4W and 8W LED with 0-10v (DV) or Phase (DP) dimming versions available.
OPTIC:
17° or 48° Beam Angle Total Internal Reflecting (TIR) Multi-lens.
STRUCTURE:
CNC machined aluminium housing with black , white or clear satin finish. Die-cast aluminium heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
INSTALLATION:
Available on canopy or track mount adaptor, the suspended version of Pixel is mounted on a field adjustable 6mm stem. Projector feature a high performance spring tension swivel. Finish CHR
Shade Finish: BLKA | S A | WHE
Available Light Sources
LED.4.30.17
4W, LED 3000K (Warm), 17° (Beam angle) 120-277V
LED.4.30.48
4W, LED 3000K (Warm), 48° (Beam angle) 120-277V
LED.8.30.17
8W, LED 3000K (Warm), 17° (Beam angle) 120V
LED.8.30.48
8W, LED 3000K (Warm), 48° (Beam angle) 120V
LED.4.35.17
4W, LED 3500K (Natural), 17° (Beam angle) 120-277V
LED.4.35.48
4W, LED 3500K (Natural), 48° (Beam angle) 120-277V
LED.8.35.17
8W, LED 3500K Natural), 17° (Beam angle) 120V
LED.8.35.48
8W, LED 3500K (Natural), 48° (Beam angle) 120V
LED.4.40.17
4W, LED 4000K (Neutral), 17° (Beam angle) 120-277V
LED.4.40.48
4W, LED 4000K (Neutral), 48° (Beam angle) 120-277V
LED.8.40.17
8W, LED 4000K (Neutral), 17° (Beam angle) 120V
LED.8.40.48
8W, LED 4000K (Neutral), 48° (Beam angle) 120V
