Mega Bass

Ceiling Trims 12640-2X1

Product Companion

Mega Bass

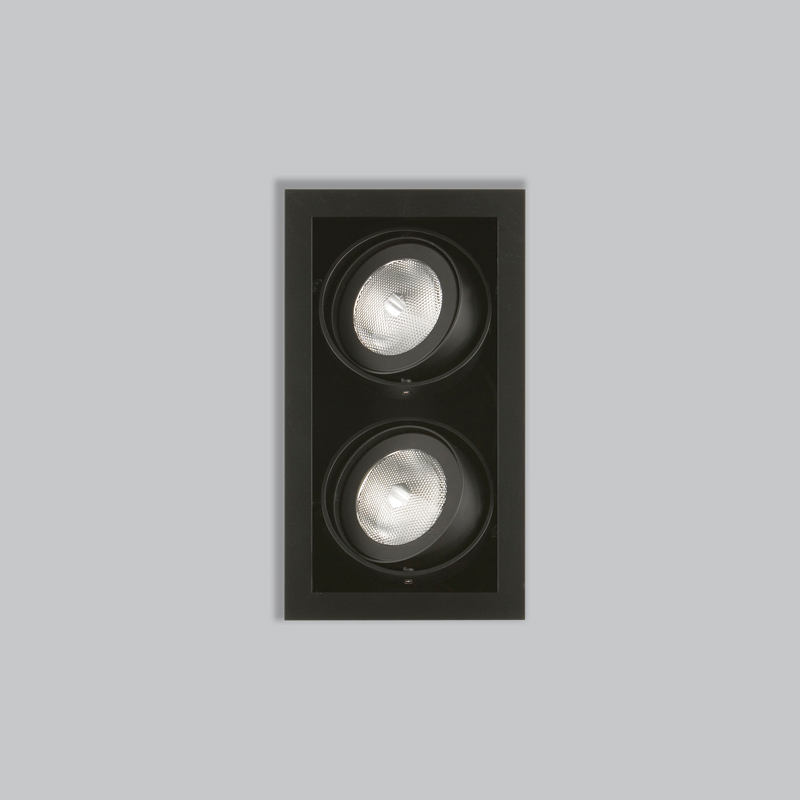

Product Characteristics: The contemporary and functional Mega Bass multiple recessed fixture, features up to four fully directional light sources in both linear and square formats. Due to the larger format, a wide range light sources are available including both standard and high performance Eureka LED modules with optional phase dimming (DP - 120V only) or 0-10V dimming (DV), as well as, MR16 Lamp types (LED retrofit or halogen) and incandescent. Dimming available for all light sources. To maximize design flexibility, the rings and the finish trim of the Mega Bass are available in black, white or metallic gray, while the enclosure is offered in reflective white or discreet black. Using our patented automatically locating mounting clip, Mega Bass is designed for quick installation in both new construction ceilings (169X) or when remodeling (159X) in an existing ceiling. For a clean look without the hassle of a trim-less installation, the Bass fixture can be installed using our Flush™ mounting accessory (19640). Adjustment Angle: 90°
Finish BLK | WH
Shade Finish: BLK | WH
Available Light Sources
MR16.E.50
G5.3 MR16 50W ELEC. 120/12V
LED.11.30.20.DP
11W, LED 3000K (Warm), 20° (Beam angle) PHASE DIMMING 120V
LED.11.30.40.DV
11W, LED 3000K (Warm), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.8.30.17.DP
8W, LED 3000K (Warm), 17° (Beam angle) PHASE DIMMING 120V
LED.8.30.17.DV
8W, LED 3000K (Warm), 17° (Beam angle) 0-10V DIMMING 120-277V
LED.8.30.48.DP
8W, LED 3000K (Warm), 48° (Beam angle) PHASE DIMMING 120V
LED.8.30.48.DV
8W, LED 3000K (Warm), 48° (Beam angle) 0-10V DIMMING 120-277V
LED.11.35.20.DP
11W, LED 3500K (Natural), 20° (Beam angle) PHASE DIMMING 120V
LED.11.35.20.DV
11W, LED 3500K (Natural), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.11.35.40.DP
11W, LED 3500K (Natural), 40° (Beam angle) PHASE DIMMING 120V
LED.11.35.40.DV
11W, LED 3500K (Natural), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.8.35.17.DP
8W, LED 3500K (Natural), 17° (Beam angle) PHASE DIMMING 120V
LED.8.35.17.DV
8W, LED 3500K (Natural), 17° (Beam angle) 0-10V DIMMING 120-277V
LED.8.35.48.DP
8W, LED 3500K (Natural), 48° (Beam angle) PHASE DIMMING 120V
LED.8.35.48.DV
8W, LED 3500K (Natural), 48° (Beam angle) 0-10V DIMMING 120-277V
LED.11.40.20.DP
11W, LED 4000K (Neutral), 20° (Beam angle) PHASE DIMMING 120V
LED.11.40.20.DV
11W, LED 4000K (Neutral), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.11.40.40.DP
11W, LED 4000K (Neutral), 40° (Beam angle) PHASE DIMMING 120V
LED.11.40.40.DV
11W, LED 4000K (Neutral), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.8.40.17.DP
8W, LED 4000K (Neutral), 17° (Beam angle) PHASE DIMMING 120V
LED.8.40.17.DV
8W, LED 4000K (Neutral), 17° (Beam angle) 0-10V DIMMING 120-277V
LED.8.40.48.DP
8W, LED 4000K (Neutral), 48° (Beam angle) PHASE DIMMING 120V
LED.8.40.48.DV
8W, LED 4000K (Neutral), 48° (Beam angle) 0-10V DIMMING 120-277V
MR16LED.16.E
16W Max., LED, MR16, GU5.3 Base 120/12V
LED.11.30.20.DV
11W, LED 3000K (Warm), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.11.30.40.DP
11W, LED 3000K (Warm), 40° (Beam angle) PHASE DIMMING 120V
