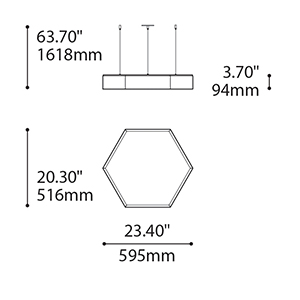

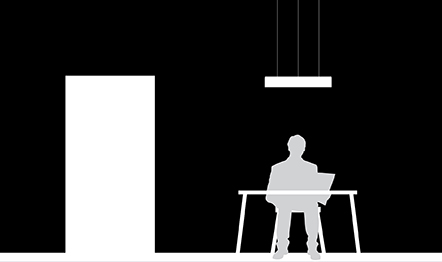

Proportion

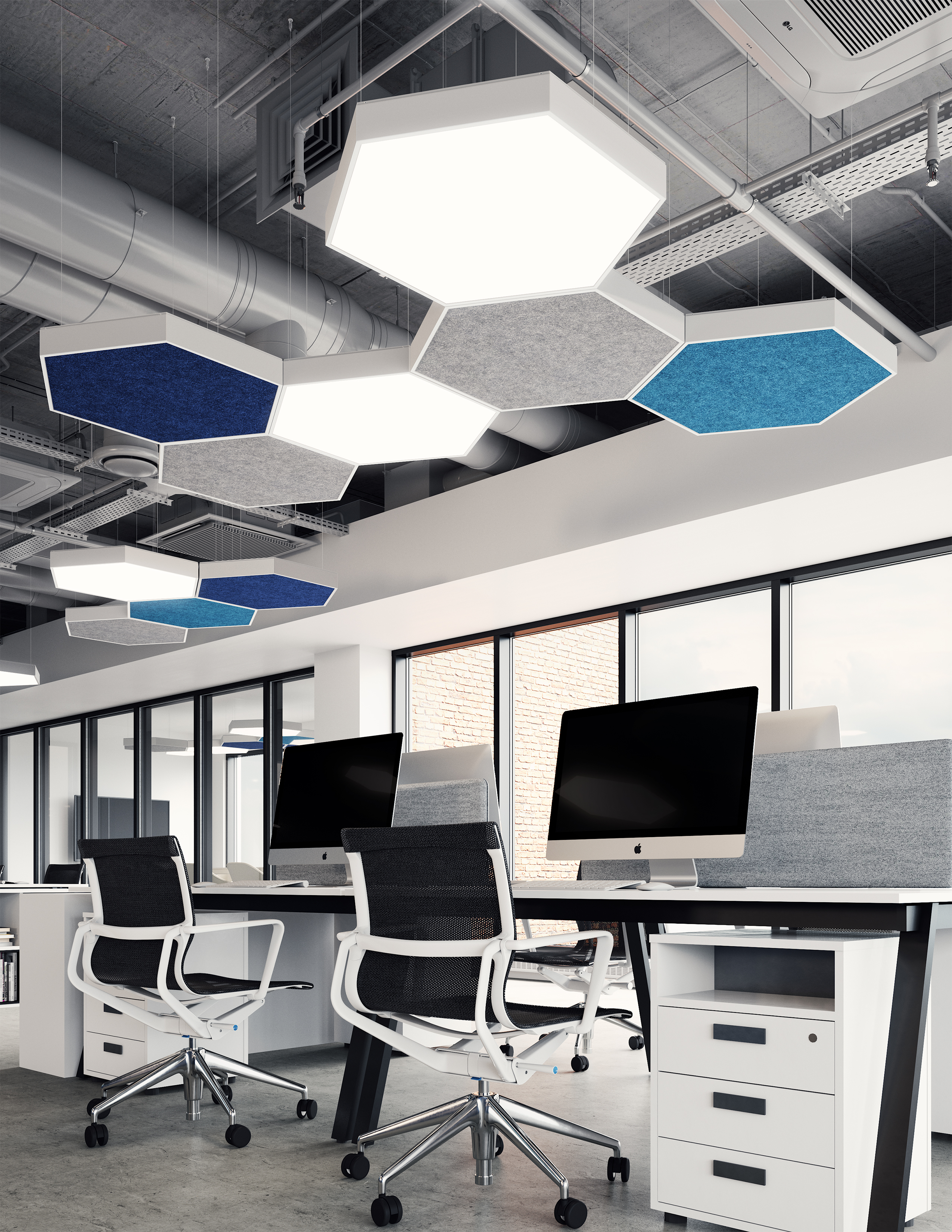

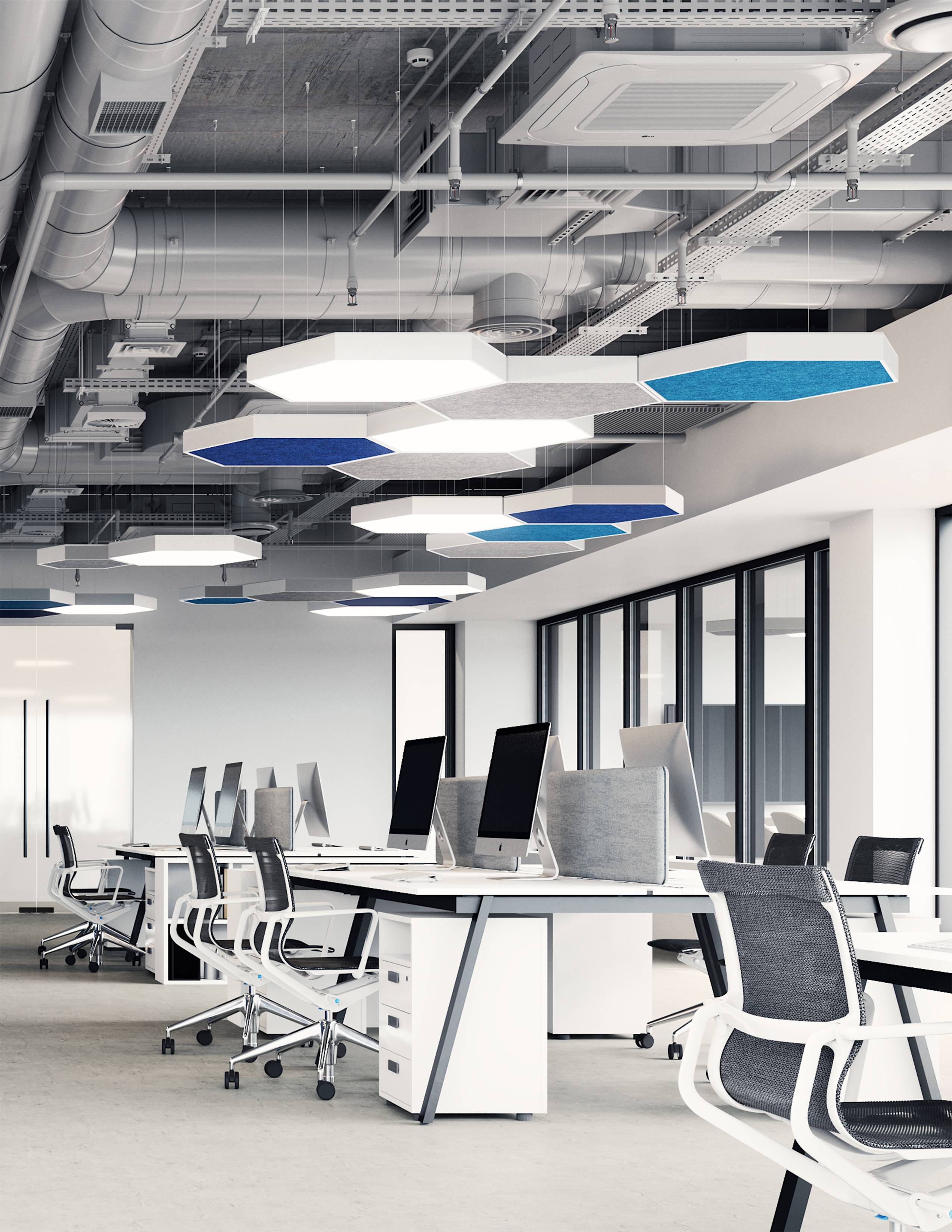

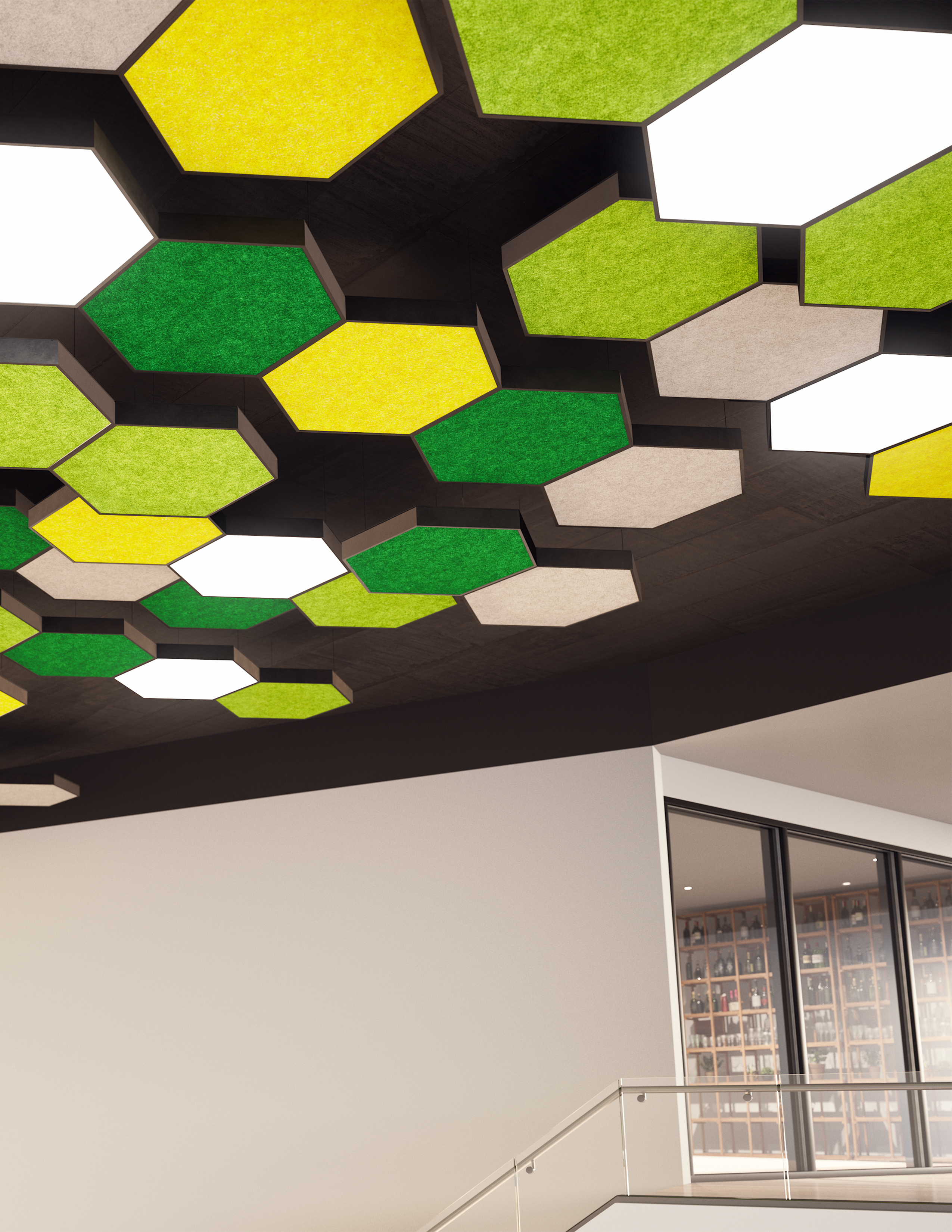

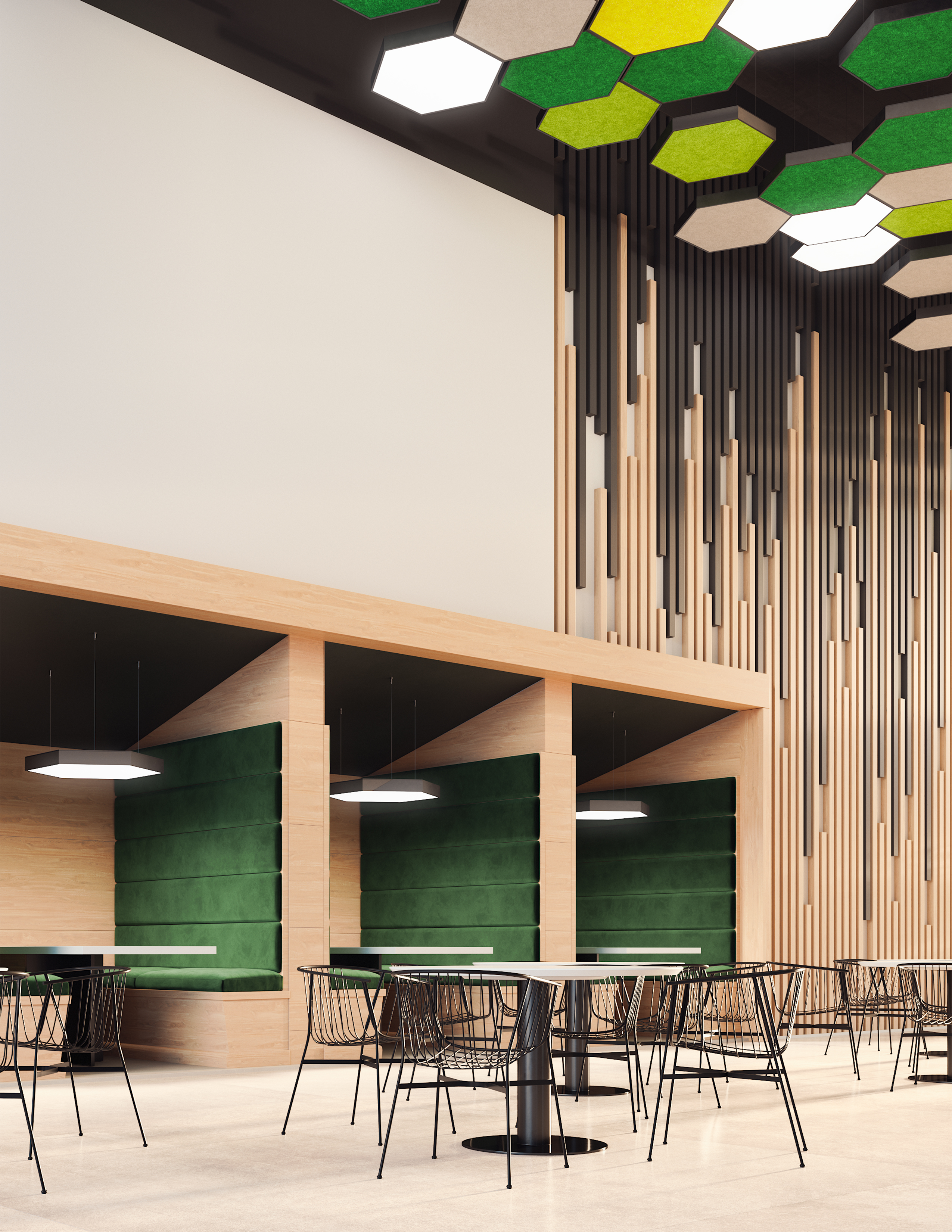

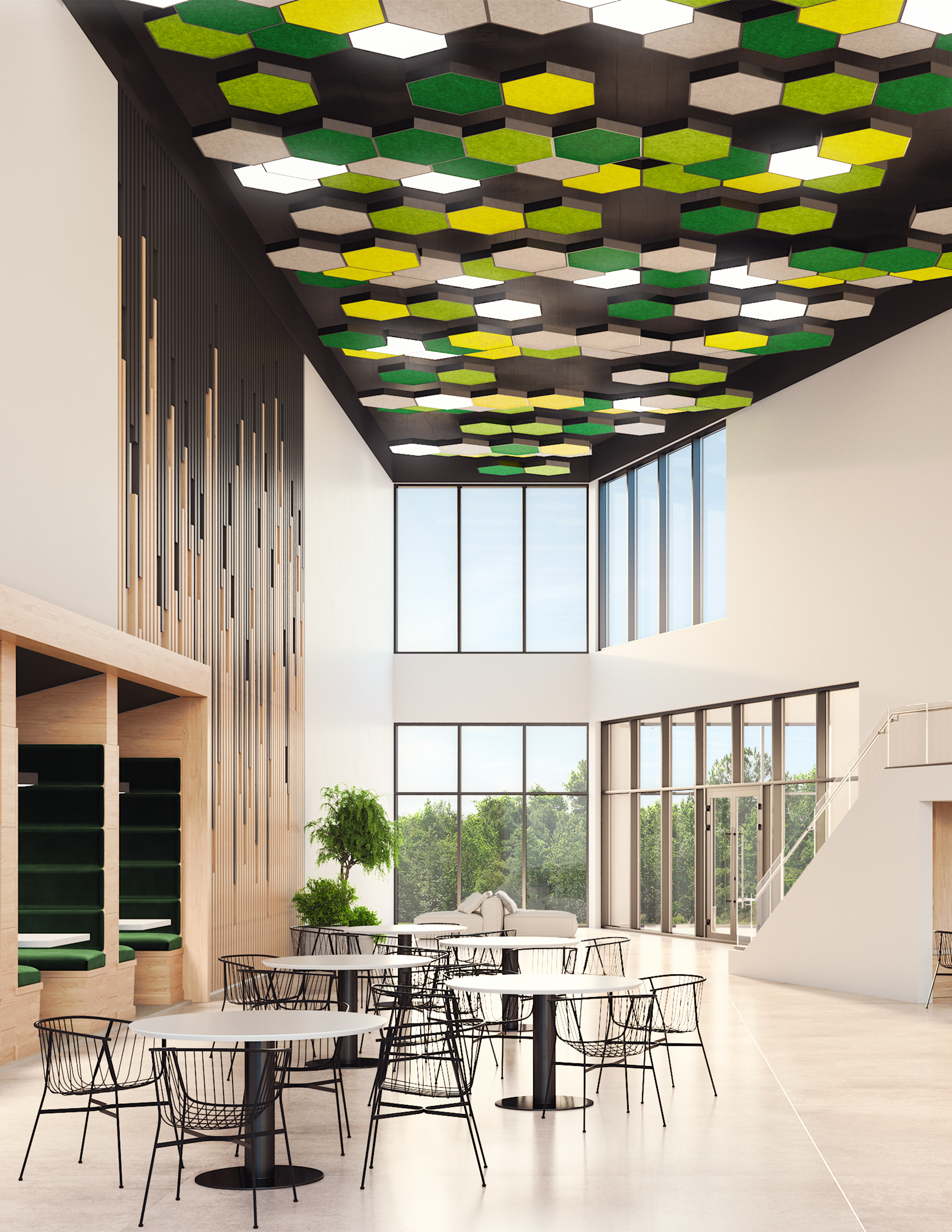

Application Shots
IES Files
Revit Files
EM Guide
Acoustic Lab Results
nLight Guide
Product Companion

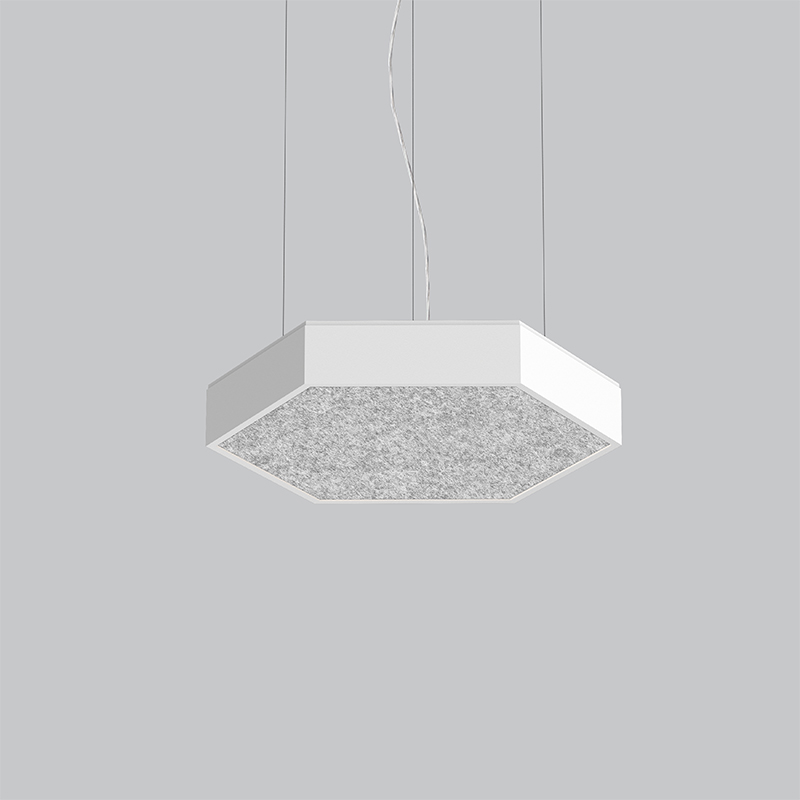

HEX AREA ACOUSTIC
Ceiling Suspended
Product Characteristics:
DESIGN:

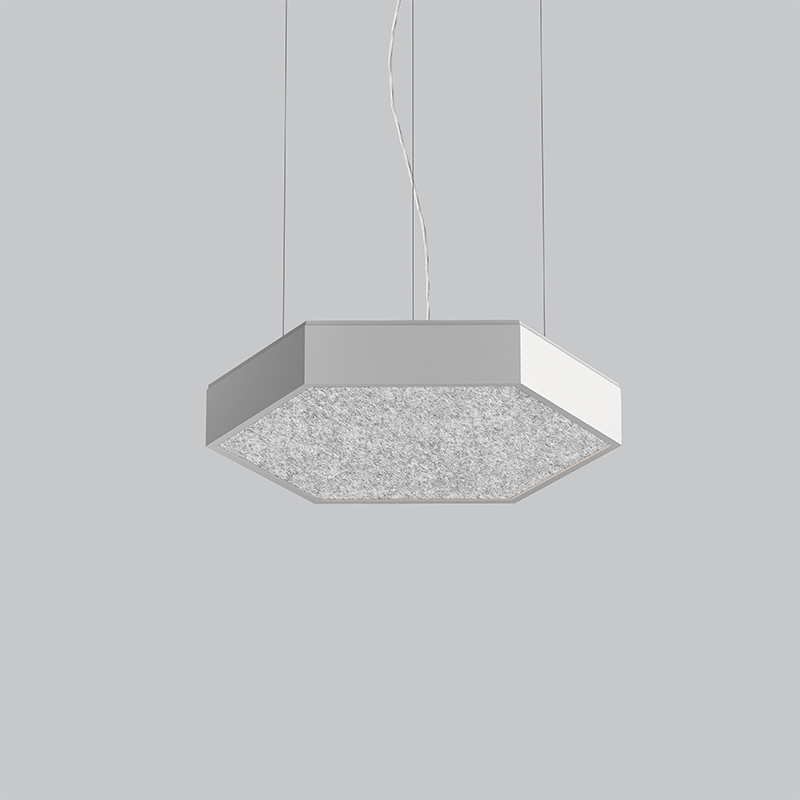

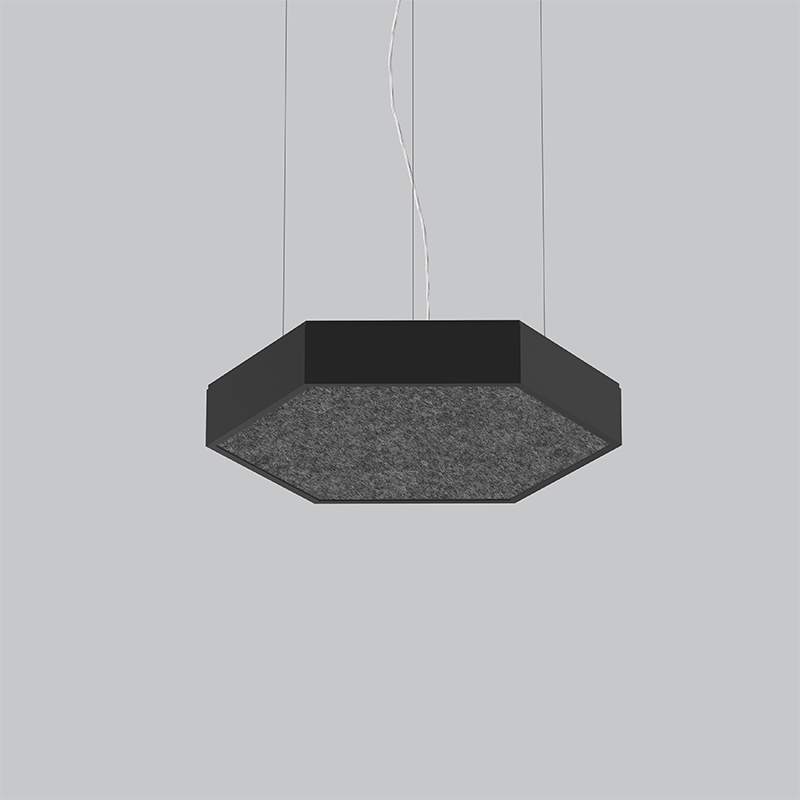

Large format, sound absorbing hexagonal direct pendants in 24" and 36" with optional uplight modules.
INDIRECT LIGHT SOURCE:
High performance LED modules with standard 0-10v or phase dimming driver integrated within the fixture. The product is also availabe with no light source
HOUSING:
Aluminium extrusion housing and die-formed steel with polyester powder finish
ACOUSTIC:
High density 9mm polyester felt rated at 0.75 NRC. Available in 30 colors. Finish BLKE | LGE | WHE
Shade Finish: ABF | AWF | BBF | BOF | BTF | BYF | CHF | NBF | OBF | PGF | PREM | REF | SGF | TGF | ZFF
Large format, sound absorbing hexagonal direct pendants in 24" and 36" with optional uplight modules.
INDIRECT LIGHT SOURCE:
High performance LED modules with standard 0-10v or phase dimming driver integrated within the fixture. The product is also availabe with no light source
HOUSING:
Aluminium extrusion housing and die-formed steel with polyester powder finish
ACOUSTIC:
High density 9mm polyester felt rated at 0.75 NRC. Available in 30 colors. Finish BLKE | LGE | WHE
Shade Finish: ABF | AWF | BBF | BOF | BTF | BYF | CHF | NBF | OBF | PGF | PREM | REF | SGF | TGF | ZFF
nLight® Air Enabled
Available Light Sources
LED.27.HO.DP
34W, LED HO 2700K (Very Warm) PHASE DIMMING 120V
LED.27.HO.DV
34W, LED HO 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.DP
17W, LED 2700K (Very Warm) PHASE DIMMING 120V
LED.27.DV
17W, LED 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.30.HO.DP
34W, LED HO 3000K (Warm) PHASE DIMMING 120V
LED.30.HO.DV
34W, LED HO 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.DP
17W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
17W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.35.HO.DP
34W, LED HO 3500K (Natural) PHASE DIMMING 120V
LED.35.HO.DV
34W, LED HO 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.DP
17W, LED 3500K (Natural) PHASE DIMMING 120V
LED.35.DV
17W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.40.HO.DP
34W, LED HO 4000K (Neutral) PHASE DIMMING 120V
LED.40.HO.DV
34W, LED HO 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.DP
17W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
17W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
