FOCUS

Ceiling Surface 4547

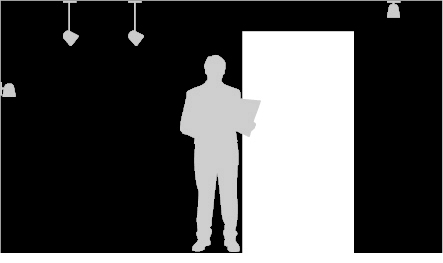

Brochure Spec Sheet Installation Sheet Proportion Application Shots IES Files Revit Files Accessories
Product Companion
2047
4547.

FOCUS


Product Characteristics: DESIGN:
Focus is simply the most powerful spotlight designed by Eureka! This performance is achievable through the combination of a clever heatsink construction, a high quality LED and an efficient reflector.

INSTALLATION:
Focus is mounted on a round discreet canopy for wall or ceiling installation and is designed with a friction swivel. It is assembled on a deep junction box (included) with integrated LED driver.

LIGHT SOURCE:
18W or 25W Chip-on-board (COB) providing an impressive output of more than 2000 delivered lumens. Available with phase or 0-10V dimming.

STRUCTURE:
The custom built heatsink was designed with hidden fins and an airflow channel that forces heat to smoothly navigate up to the top fins that are exposed to ambient air. Available with
black or white architectural grade fine textured finish.

REFLECTOR:
Aluminum reflector with an impressive efficiency of 90% available with 15°, 38° or 55° beam angle (FWHM).
Rotation Angle: 350°
Adjustment Angle: 90°

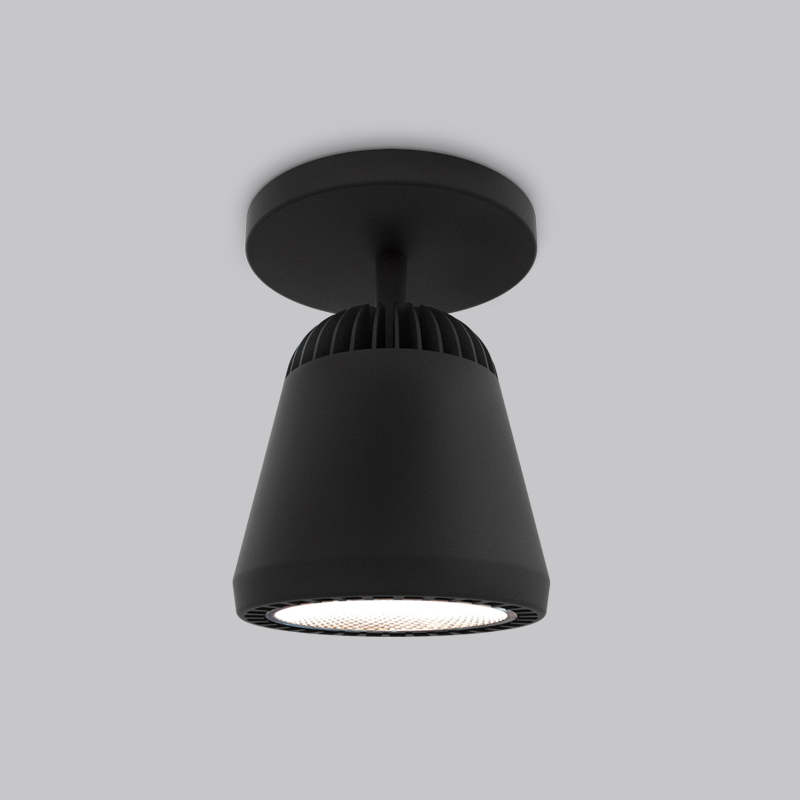

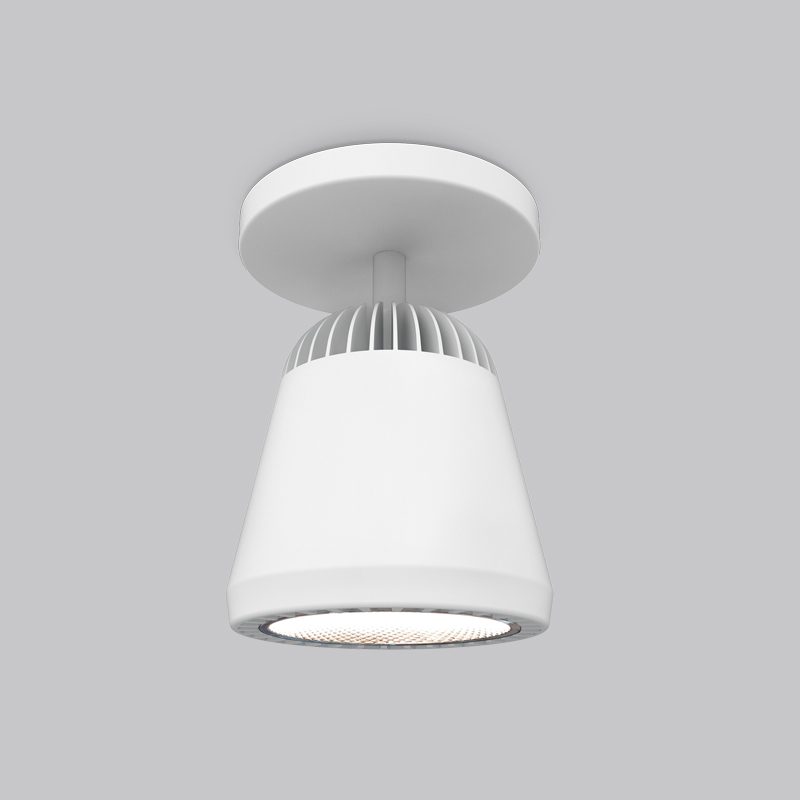

Finish BLKE | WHE
Shade Finish: BLKE | WHE
Available Light Sources
LED.18.30.15.DP
18W, LED 3000K (Warm), 15° (Beam angle) PHASE DIMMING 120V
LED.18.30.15.DV
18W, LED 3000K (Warm), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.38.DP
18W, LED 3000K (Warm), 38° (Beam angle) PHASE DIMMING 120V
LED.18.30.38.DV
18W, LED 3000K (Warm), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.55.DP
18W, LED 3000K (Warm), 55° (Beam angle) PHASE DIMMING 120V
LED.18.30.55.DV
18W, LED 3000K (Warm), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.25.30.15.DP
25W, LED 3000K (Warm), 15° (Beam angle) PHASE DIMMING 120V
LED.25.30.15.DV
25W, LED 3000K (Warm), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.25.30.38.DP
25W, LED 3000K (Warm), 38° (Beam angle) PHASE DIMMING 120V
LED.25.30.38.DV
25W, LED 3000K (Warm), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.25.30.55.DP
25W, LED 3000K (Warm), 55° (Beam angle) PHASE DIMMING 120V
LED.25.30.55.DV
25W, LED 3000K (Warm), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.15.DP
18W, LED 3500K (Natural), 15° (Beam angle) PHASE DIMMING 120V
LED.18.35.15.DV
18W, LED 3500K (Natural), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.38.DP
18W, LED 3500K (Natural), 38° (Beam angle) PHASE DIMMING 120V
LED.18.35.38.DV
18W, LED 3500K (Natural), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.55.DV
18W, LED 3500K (Natural), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.25.35.15.DP
25W, LED 3500K (Natural), 15° (Beam angle) PHASE DIMMING 120V
LED.25.35.15.DV
25W, LED 3500K (Natural), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.25.35.38.DP
25W, LED 3500K (Natural), 38° (Beam angle) PHASE DIMMING 120V
LED.25.35.38.DV
25W, LED 3500K (Natural), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.25.35.55.DP
25W, LED 3500K (Natural), 55° (Beam angle) PHASE DIMMING 120V
LED.25.35.55.DV
25W, LED 3500K (Natural), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.15.DP
18W, LED 4000K (Neutral), 15° (Beam angle) PHASE DIMMING 120V
LED.18.40.15.DV
18W, LED 4000K (Neutral), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.38.DP
18W, LED 4000K (Neutral), 38° (Beam angle) PHASE DIMMING 120V
LED.18.40.38.DV
18W, LED 4000K (Neutral), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.55.DP
18W, LED 4000K (Neutral), 55° (Beam angle) PHASE DIMMING 120V
LED.18.40.55.DV
18W, LED 4000K (Neutral), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.25.40.15.DP
25W, LED 4000K (Neutral), 15° (Beam angle) PHASE DIMMING 120V
LED.25.40.15.DV
25W, LED 4000K (Neutral), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.25.40.38.DP
25W, LED 4000K (Neutral), 38° (Beam angle) PHASE DIMMING 120V
LED.25.40.38.DV
25W, LED 4000K (Neutral), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.25.40.55.DP
25W, LED 4000K (Neutral), 55° (Beam angle) PHASE DIMMING 120V
LED.25.40.55.DV
25W, LED 4000K (Neutral), 55° (Beam angle) 0-10V DIMMING 120-277V

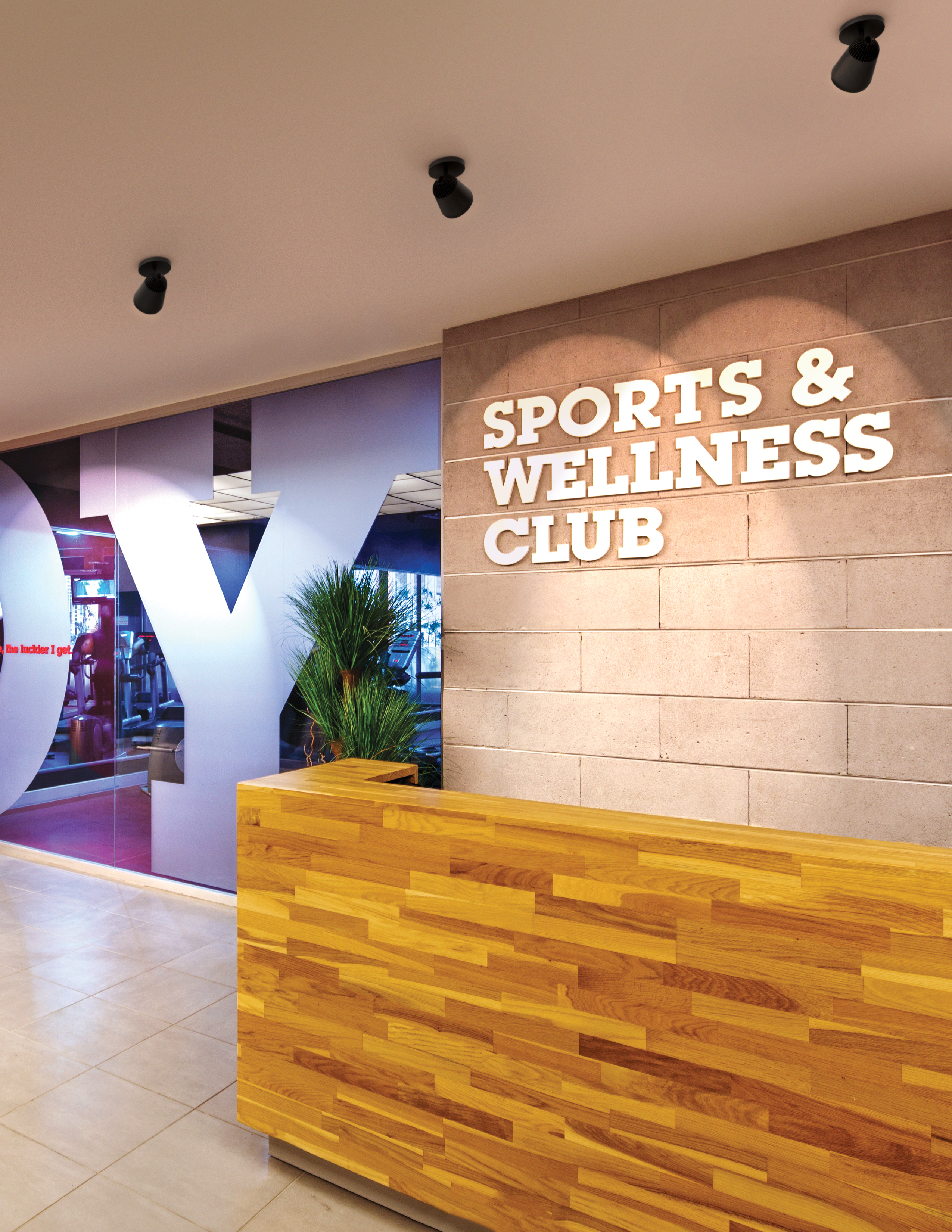

Application Photos
