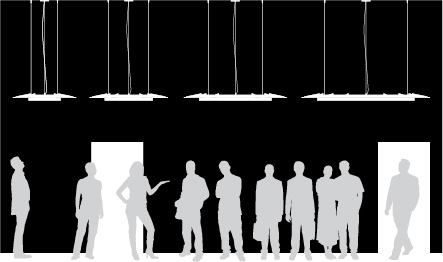

Proportion
Application Shots
Revit Files
EM Guide
Acoustic Lab Results
nLight Guide
Quickship Brochure
Accessories
Product Companion
CYCLE ACOUSTIC
Ceiling Suspended
Product Characteristics:
DESIGN:

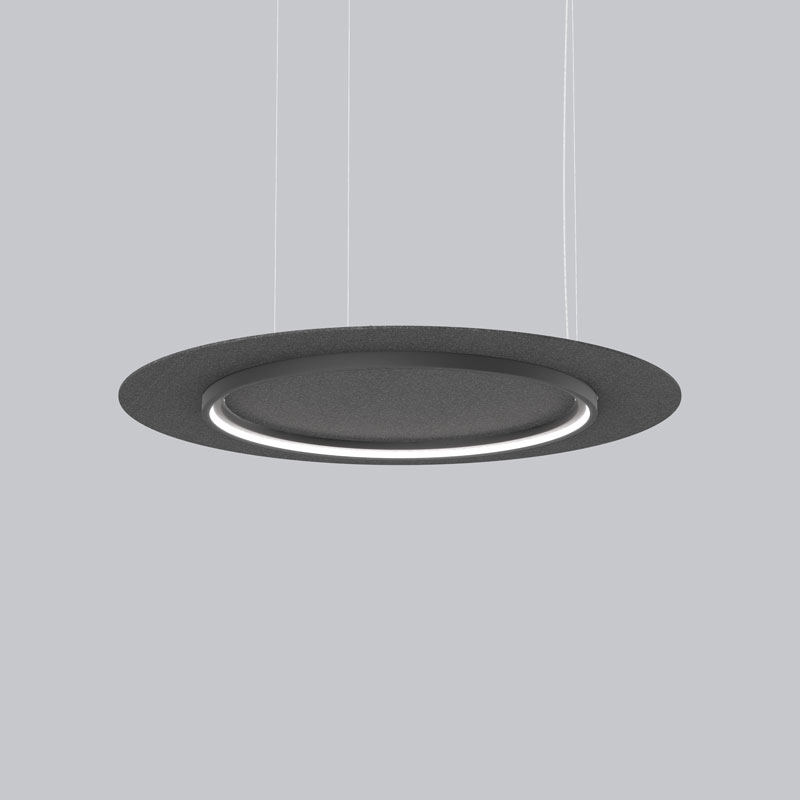

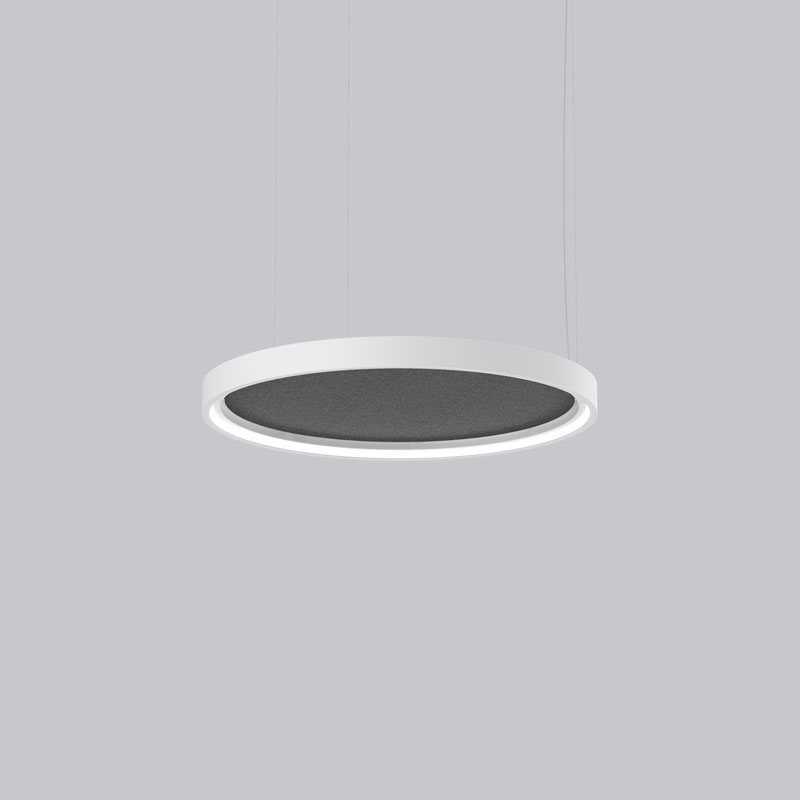

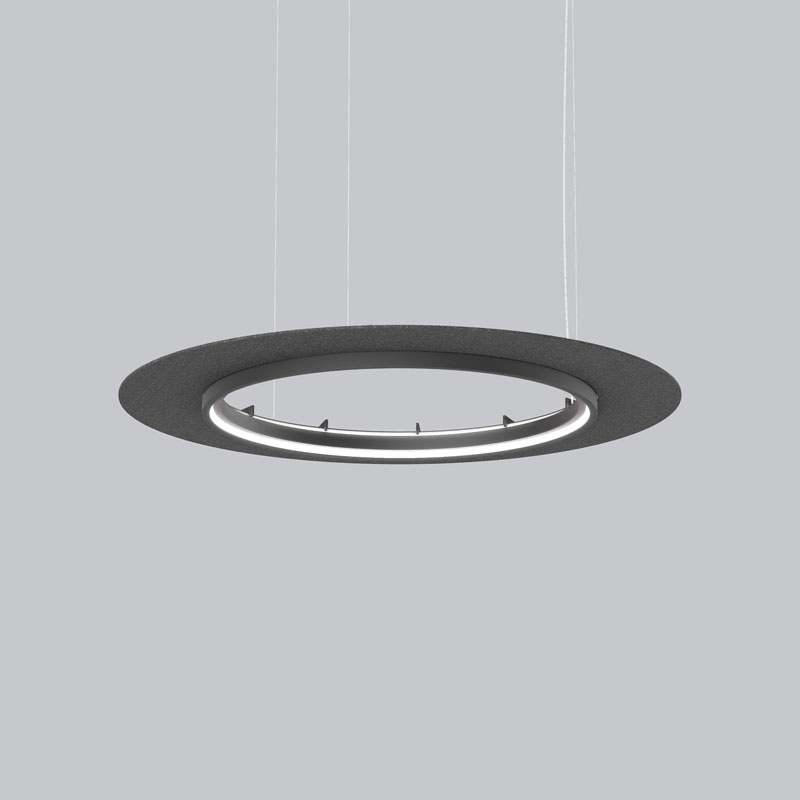

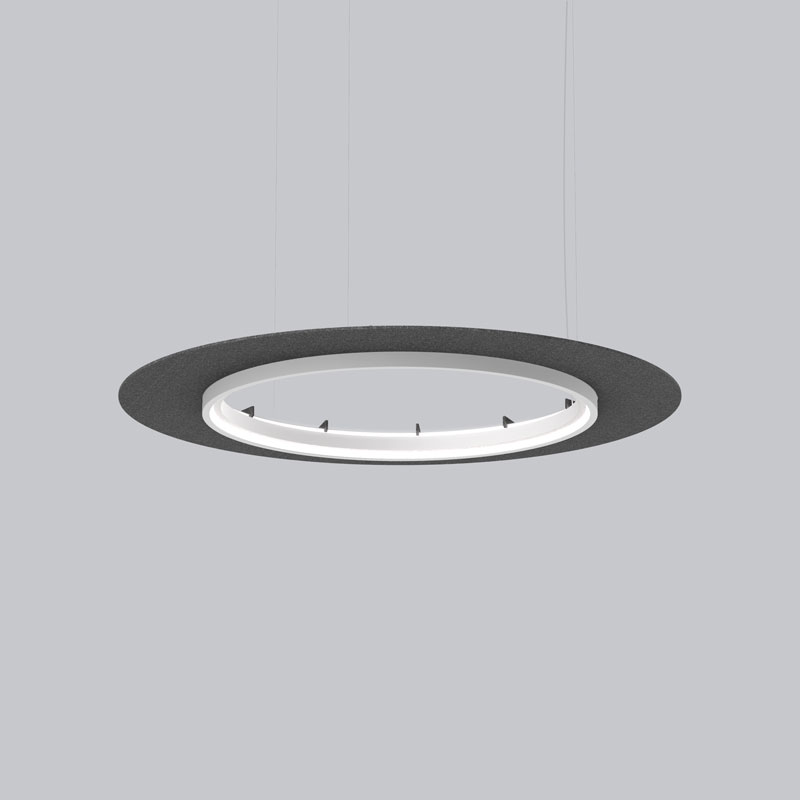

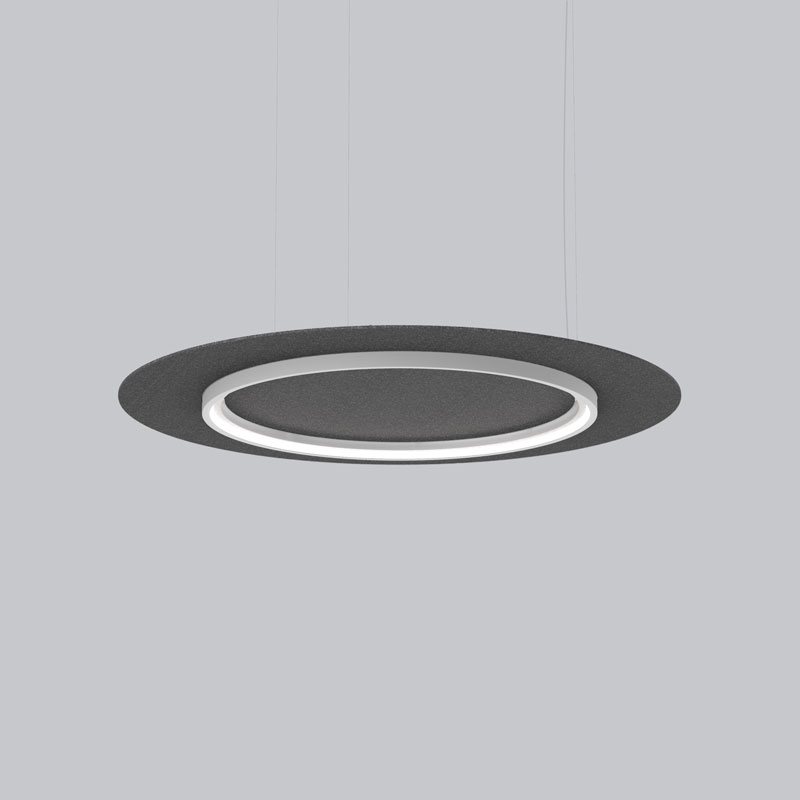

A sound absorbing structure that installs onto the Cycle luminaire to improve the sound quality of your space. It uses a proven ecological sound absorbing material to reduce unwanted reflected sounds to dampen ambient noises. The Tone acoustic accessory is now called Cycle Acoustic and includes the luminaire.
INSTALLATION:
Easy to install, adjust and level triple aircraft mounting, available with straight or angled cables on a central canopy. Acoustic panel are quick to install and without the need of tools.
LIGHT SOURCE:
Custom designed and manufactured light engine featuring high performance discreet LEDs. Tuneable white and emergency option available.
CONSTRUCTION:
Seamlessly finished, rolled concentric aluminium extrusions with highly reflective inner matte white polyester powder coating available with outer finish in matte white, textured anthracite or gold. Acoustic panels are composed of a sound absorbing (NRC 0.75) rigid and ecological synthetic felt. Composed of at least 40% of recycled polyethylene bottles (PET) which make them recyclable and odorless.
Finish ANTE | GOL | WHE
Shade Finish: ABF | BBF | BOF | BTF | BYF | CHF | NBF | OBF | PGF | PREM | REF | SGF | TGF | ZFF
A sound absorbing structure that installs onto the Cycle luminaire to improve the sound quality of your space. It uses a proven ecological sound absorbing material to reduce unwanted reflected sounds to dampen ambient noises. The Tone acoustic accessory is now called Cycle Acoustic and includes the luminaire.
INSTALLATION:
Easy to install, adjust and level triple aircraft mounting, available with straight or angled cables on a central canopy. Acoustic panel are quick to install and without the need of tools.
LIGHT SOURCE:
Custom designed and manufactured light engine featuring high performance discreet LEDs. Tuneable white and emergency option available.
CONSTRUCTION:
Seamlessly finished, rolled concentric aluminium extrusions with highly reflective inner matte white polyester powder coating available with outer finish in matte white, textured anthracite or gold. Acoustic panels are composed of a sound absorbing (NRC 0.75) rigid and ecological synthetic felt. Composed of at least 40% of recycled polyethylene bottles (PET) which make them recyclable and odorless.
Finish ANTE | GOL | WHE
Shade Finish: ABF | BBF | BOF | BTF | BYF | CHF | NBF | OBF | PGF | PREM | REF | SGF | TGF | ZFF
nLight® Air Enabled
Available Light Sources
LED.27.DP
42W, LED 2700K (Very Warm) PHASE DIMMING 120V
LED.27.DV
42W, LED 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.NLIGHT
42W, LED 2700K (Very Warm) NLight Wired 120-277V
LED.27.NLTAIR2
42W, LED 2700K (Very Warm) NLight Air2 120-277V
LED.30.DP
42W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
42W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.NLIGHT
42W, LED 3000K (Warm) NLight Wired 120-277V
LED.30.NLTAIR2
42W, LED 3000K (Warm) NLight Air2 120-277V
LED.35.DP
42W, LED 3500K (Natural) PHASE DIMMING 120V
LED.35.DV
42W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.NLIGHT
42W, LED 3500K (Neutral) NLight Wired 120-277V
LED.35.NLTAIR2
42W, LED 3500K (Neutral) NLight Air2 120-277V
LED.40.DP
42W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
42W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.NLIGHT
42W, LED 4000K (Neutral) NLight Wired 120-277V
LED.40.NLTAIR2
42W, LED 4000K (Neutral) NLight Air2 120-277V
LED.27.HO.DP
94W, LED HO 2700K (Very Warm) PHASE DIMMING 120V
LED.27.HO.DV
94W, LED HO 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.HO.NLIGHT
94W, LED HO 2700K (Very Warm) NLight Wired 120-277V
LED.27.HO.NLTAIR2
94W, LED HO 2700K (Very Warm) NLight Air2 120-277V
LED.30.HO.DP
94W, LED HO 3000K (Warm) PHASE DIMMING 120V
LED.30.HO.DV
94W, LED HO 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.HO.NLIGHT
94W, LED HO 3000K (Warm) NLight Wired 120-277V
LED.30.HO.NLTAIR2
94W, LED HO 3000K (Warm) NLight Air2 120-277V
LED.35.HO.DP
94W, LED HO 3500K (Natural) PHASE DIMMING 120V
LED.35.HO.DV
94W, LED HO 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.HO.NLIGHT
94W, LED HO 3500K (Neutral) NLight Wired 120-277V
LED.35.HO.NLTAIR2
94W, LED HO 3500K (Neutral) NLight Air2 120-277V
LED.40.HO.DP
94W, LED HO 4000K (Neutral) PHASE DIMMING 120V
LED.40.HO.DV
94W, LED HO 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.HO.NLIGHT
94W, LED HO 4000K (Neutral) NLight Wired 120-277V
LED.40.HO.NLTAIR2
94W, LED HO 4000K (Neutral) NLight Air2 120-277V
LED.27.SHO.DP
144W, LED SHO 2700K (Very Warm) PHASE DIMMING 120V
LED.27.SHO.DV
144W, LED SHO 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.SHO.NLIGHT
144W, LED SHO 2700K (Very Warm) NLight Wired 120-277V
LED.27.SHO.NLTAIR2
144W, LED SHO 2700K (Very Warm) NLight Air2 120-277V
LED.30.SHO.DP
144W, LED SHO 3000K (Warm) PHASE DIMMING 120V
LED.30.SHO.DV
144W, LED SHO 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.SHO.NLIGHT
144W, LED SHO 3000K (Warm) NLight Wired 120-277V
LED.30.SHO.NLTAIR2
144W, LED SHO 3000K (Warm) NLight Air2 120-277V
LED.35.SHO.DP
144W, LED SHO 3500K (Natural) PHASE DIMMING 120V
LED.35.SHO.DV
144W, LED SHO 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.SHO.NLIGHT
144W, LED SHO 3500K (Neutral) NLight Wired 120-277V
LED.35.SHO.NLTAIR2
144W, LED SHO 3500K (Neutral) NLight Air2 120-277V
LED.40.SHO.DP
144W, LED SHO 4000K (Neutral) PHASE DIMMING 120V
LED.40.SHO.DV
144W, LED SHO 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.SHO.NLTAIR2
144W, LED SHO 4000K (Neutral) NLight Air2 120-277V
LED.TW.DDV
36W, LED Tunable White (2700K-5000K) Dual 0-10V DIMMING 120-277V
LED.TW.NTUNE
36W, LED Tunable White (2700K-5000K) Ntune 120-277V
