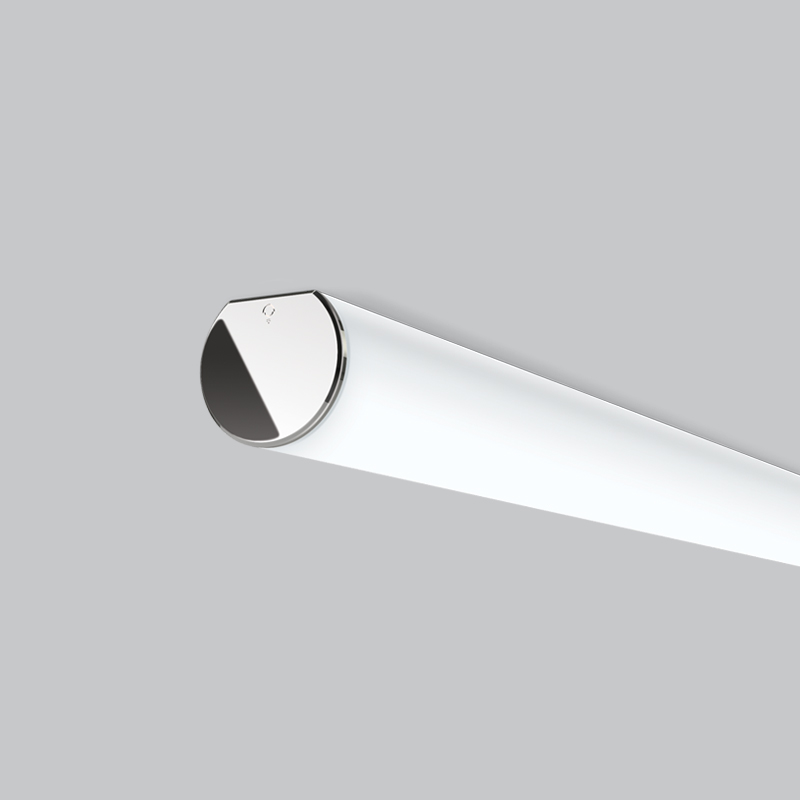

BOLT
Ceiling Surface
Product Characteristics:
DESIGN:
A bold yet elegant linear profile with a white glowing appearance and hidden mechanical structure. Offered in various lengths.
INSTALLATION:
Discreet mounting bracket with slide and lock features which installs onto included mini junction box 3980.
LIGHT SOURCE:
High performance custom made LED strips with standard 0-10V dimming driver integrated within the fixture.
END CAPS:
Extruded aluminum structure, die casted aluminum end caps mechanically attached without any visible fasteners.
DIFFUSER:
Custom extruded PMMA diffuser with internal light spreading sheet for optimal light diffusion.
A bold yet elegant linear profile with a white glowing appearance and hidden mechanical structure. Offered in various lengths.
INSTALLATION:
Discreet mounting bracket with slide and lock features which installs onto included mini junction box 3980.
LIGHT SOURCE:
High performance custom made LED strips with standard 0-10V dimming driver integrated within the fixture.
END CAPS:
Extruded aluminum structure, die casted aluminum end caps mechanically attached without any visible fasteners.
DIFFUSER:
Custom extruded PMMA diffuser with internal light spreading sheet for optimal light diffusion.
nLight® Air Enabled
Available Light Sources
LED.27.DV
15W, LED 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.NLIGHT
15W, LED 2700K (Very Warm) NLight Wired 120-277V
LED.27.NLTAIR2
15W, LED 2700K (Very Warm) NLight Air2 120-277V
LED.30.DP
15W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
15W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.NLIGHT
15W, LED 3000K (Warm) NLight Wired 120-277V
LED.30.NLTAIR2
15W, LED 3000K (Warm) NLight Air2 120-277V
LED.35.DP
15W, LED 3500K (Natural PHASE DIMMING 120V
LED.35.DV
15W, LED 3500K (Natural 0-10V DIMMING 120-277V
LED.35.NLIGHT
15W, 3500K (Natural) NLight Wired 120-277V
LED.35.NLTAIR2
15W, 3500K (Natural) NLight Air2 120-277V
LED.40.DP
15W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
15W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.NLIGHT
15W, LED 4000K (Neutral) NLight Wired 120-277V
LED.40.NLTAIR2
15W, LED 4000K (Neutral) NLight Air2 120-277V
LED.27.DP
15W, LED 2700K (Very Warm) PHASE DIMMING 120V
