Bass

Ceiling Trims 12540-4X1

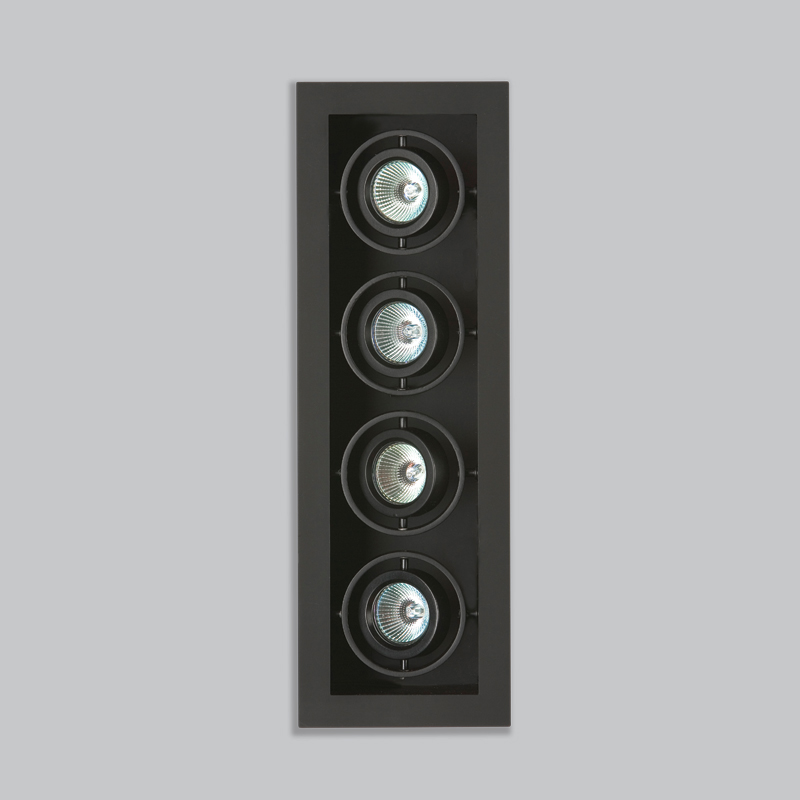

Product Characteristics: The contemporary and functional Bass multiple recessed fixture, features up to four fully directional light sources in both linear and square formats. Available with both standard and high performance Eureka LED modules with optional phase dimming (DP - 120V only) and 0-10V dimming (DV), as well as, MR16 lamp types (LED retrofit or halogen). Dimming is available for all light sources. To maximize design flexibility, the rings and the finish trim of the Bass are available in black, white or metallic gray, while the enclosure is offered in reflective white or discreet black. Using our patented automatically locating mounting clip, Bass is designed for quick installation in both new construction ceilings (169X) or when remodeling (159X) in an existing ceiling. When time is tight the 169X new construction option can be split so that the mounting plate and connection box with quick-connect are shipped in advance of the fixture housing. For a clean look without the hassle of a trim-less installation, the Bass fixture can be installed using our Flush™ mounting accessory (19540). Adjustment Angle: 90° + 60°
Finish BLK | WH
Shade Finish: BLK | WH

Available Light Sources

MR16.E.50

G5.3 MR16 50W ELEC. 120/12V

LED.11.30.20.DP

11W, LED 3000K (Warm), 20° (Beam angle) PHASE DIMMING 120V

LED.11.30.20.DV

11W, LED 3000K (Warm), 20° (Beam angle) 0-10V DIMMING 120-277V

LED.11.30.40.DP

11W, LED 3000K (Warm), 40° (Beam angle) PHASE DIMMING 120V

LED.11.30.40.DV

11W, LED 3000K (Warm), 40° (Beam angle) 0-10V DIMMING 120-277V

LED.8.40.17.DP

8W, LED 4000K (Neutral), 17° (Beam angle) PHASE DIMMING 120V

LED.8.40.17.DV

8W, LED 4000K (Neutral), 17° (Beam angle) 0-10V DIMMING 120-277V

LED.8.40.48.DP

8W, LED 4000K (Neutral), 48° (Beam angle) PHASE DIMMING 120V

LED.8.40.48.DV

8W, LED 4000K (Neutral), 48° (Beam angle) 0-10V DIMMING 120-277V

MR16LED.16.E

16W Max., LED, MR16, GU5.3 Base 120/12V

LED.4.30.17.DP

4W, LED 3000K (Warm), 17° (Beam angle) PHASE DIMMING 120V

LED.4.30.17.DV

4W, LED 3000K (Warm), 17° (Beam angle) 0-10V DIMMING 120-277V

LED.4.30.48.DP

4W, LED 3000K (Warm), 48° (Beam angle) PHASE DIMMING 120V

LED.4.30.48.DV

4W, LED 3000K (Warm), 48° (Beam angle) 0-10V DIMMING 120-277V

LED.8.30.17.DP

8W, LED 3000K (Warm), 17° (Beam angle) PHASE DIMMING 120V

LED.8.30.17.DV

8W, LED 3000K (Warm), 17° (Beam angle) 0-10V DIMMING 120-277V

LED.8.30.48.DP

8W, LED 3000K (Warm), 48° (Beam angle) PHASE DIMMING 120V

LED.8.30.48.DV

8W, LED 3000K (Warm), 48° (Beam angle) 0-10V DIMMING 120-277V

LED.11.35.20.DP

11W, LED 3500K (Natural), 20° (Beam angle) PHASE DIMMING 120V

LED.11.35.20.DV

11W, LED 3500K (Natural), 20° (Beam angle) 0-10V DIMMING 120-277V

LED.11.35.40.DP

11W, LED 3500K (Natural), 40° (Beam angle) PHASE DIMMING 120V

LED.11.35.40.DV

11W, LED 3500K (Natural), 40° (Beam angle) 0-10V DIMMING 120-277V

LED.4.35.17.DP

4W, LED 3500K (Natural), 17° (Beam angle) PHASE DIMMING 120V

LED.4.35.17.DV

4W, LED 3500K (Natural), 17° (Beam angle) 0-10V DIMMING 120-277V

LED.4.35.48.DP

4W, LED 3500K (Natural), 48° (Beam angle) PHASE DIMMING 120V

LED.4.30.48.DV

4W, LED 3500K (Natural), 48° (Beam angle) 0-10V DIMMING 120-277V

LED.8.35.17.DP

8W, LED 3500K (Natural), 17° (Beam angle) PHASE DIMMING 120V

LED.8.35.17.DV

8W, LED 3500K (Natural), 17° (Beam angle) 0-10V DIMMING 120-277V

LED.8.35.48.DP

8W, LED 3500K (Natural), 48° (Beam angle) PHASE DIMMING 120V

LED.8.35.48.DV

8W, LED 3500K (Natural), 48° (Beam angle) 0-10V DIMMING 120-277V

LED.11.40.20.DP

11W, LED 4000K (Neutral), 20° (Beam angle) PHASE DIMMING 120V

LED.11.40.20.DV

11W, LED 4000K (Neutral), 20° (Beam angle) 0-10V DIMMING 120-277V

LED.11.40.40.DP

11W, LED 4000K (Neutral), 40° (Beam angle) PHASE DIMMING 120V

LED.11.40.40.DV

11W, LED 4000K (Neutral), 40° (Beam angle) 0-10V DIMMING 120-277V

LED.4.40.17.DP

4W, LED 4000K (Neutral), 17° (Beam angle) PHASE DIMMING 120V

LED.4.40.17.DV

4W, LED 4000K (Neutral), 17° (Beam angle) 0-10V DIMMING 120-277V

LED.4.40.48.DP

4W, LED 4000K (Neutral), 48° (Beam angle) PHASE DIMMING 120V

LED.4.40.48.DV

4W, LED 4000K (Neutral), 48° (Beam angle) 0-10V DIMMING 120-277V

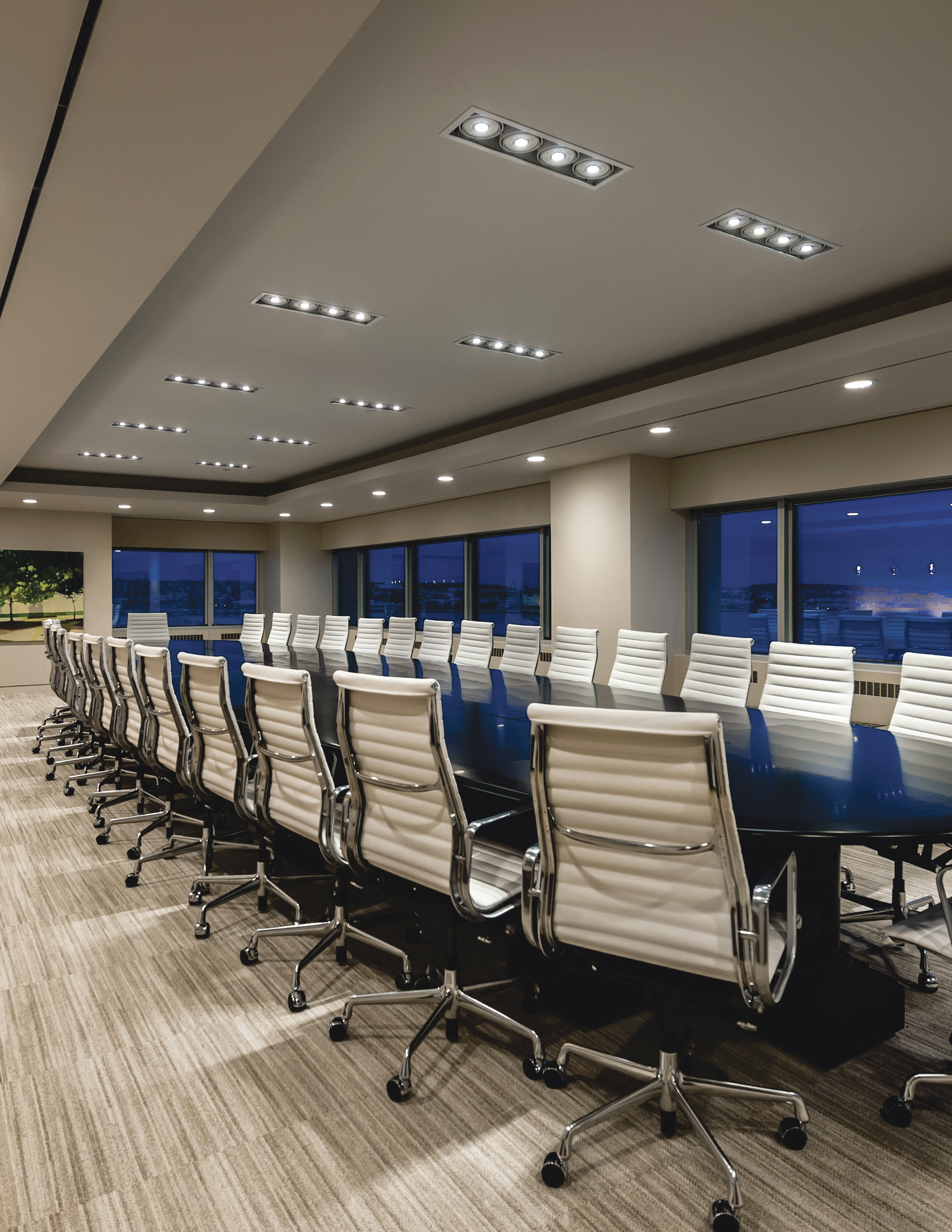

Application Photos
