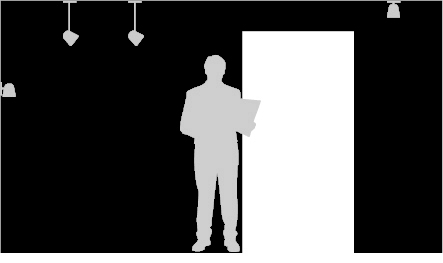

_Proportion

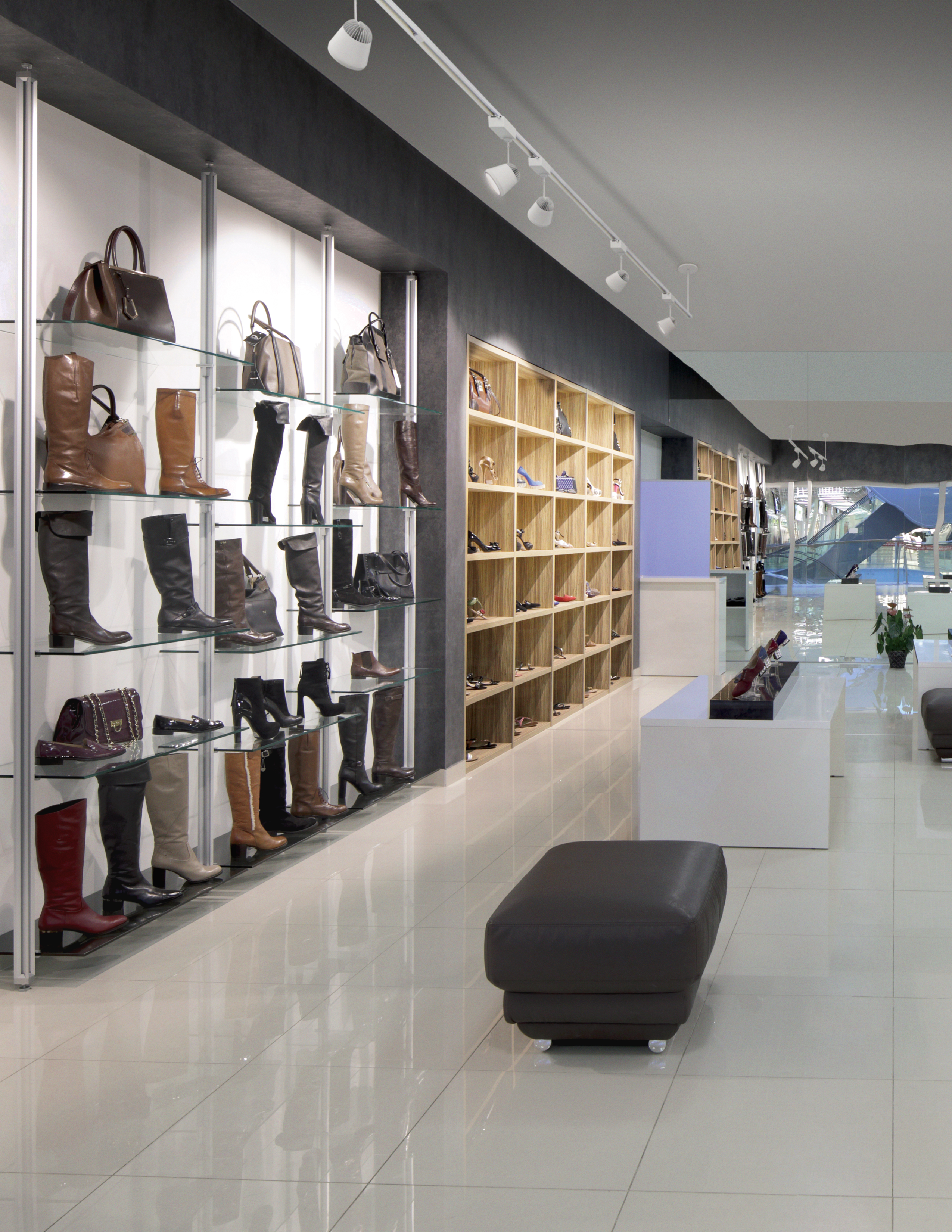

_Application shots
_IES Files
_Revit Files
_Accessories
_Product Companion
FOCUS
Track Heads
_Product Characteristics
DESIGN :
Focus is simply the most powerful spotlight designed by Eureka! This performance is achievable through the combination of a clever heatsink construction, a high quality LED and an efficient reflector.
INSTALLATION :
Focus can be set up on a rail with a track adaptor (integrated LED driver) or can be installed on a round canopy. For NON-IC installation, it is assembled on a deep junction box (included) with integrated LED driver. It is always assembled with a swivel and is mounted on a stem of desired length.
LIGHT SOURCE :
18W or 25W Chip-on-board (COB) providing an impressive output of more than 2000 delivered lumens. Available with phase or 0-10V dimming.
STRUCTURE :
The custom built heatsink was designed with hidden fins and an airflow channel that forces heat to smoothly navigate up to the top fins that are exposed to ambient air. Available with black or white architectural grade fine textured finish.
REFLECTOR :
Aluminum reflector with an impressive efficiency of 90% available with 15°, 38° or 55° beam angle (FWHM).
_RotationAngle: 350°
_AdjustmentAngle: 90°

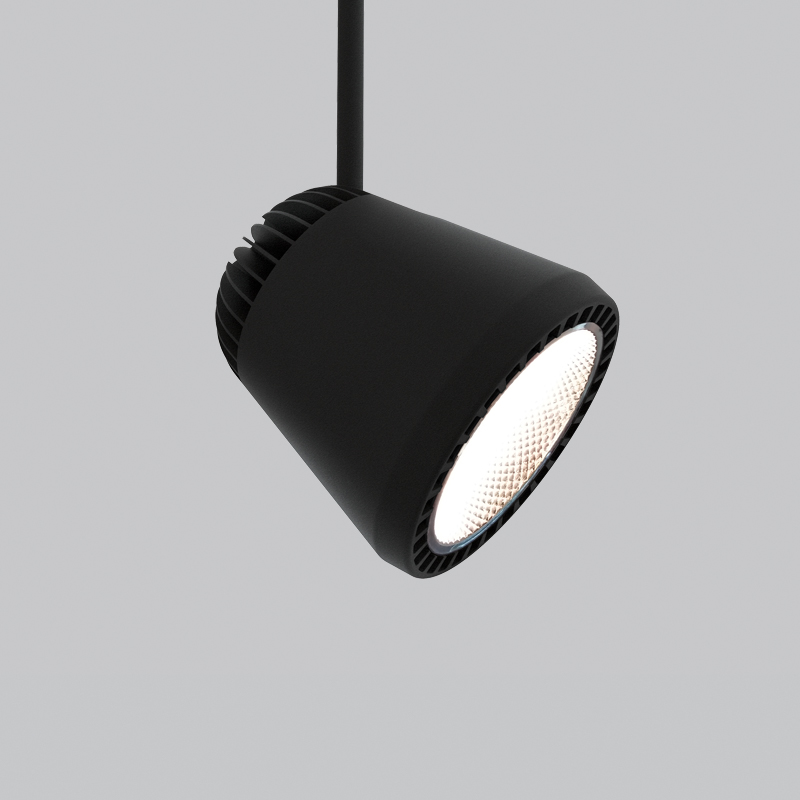

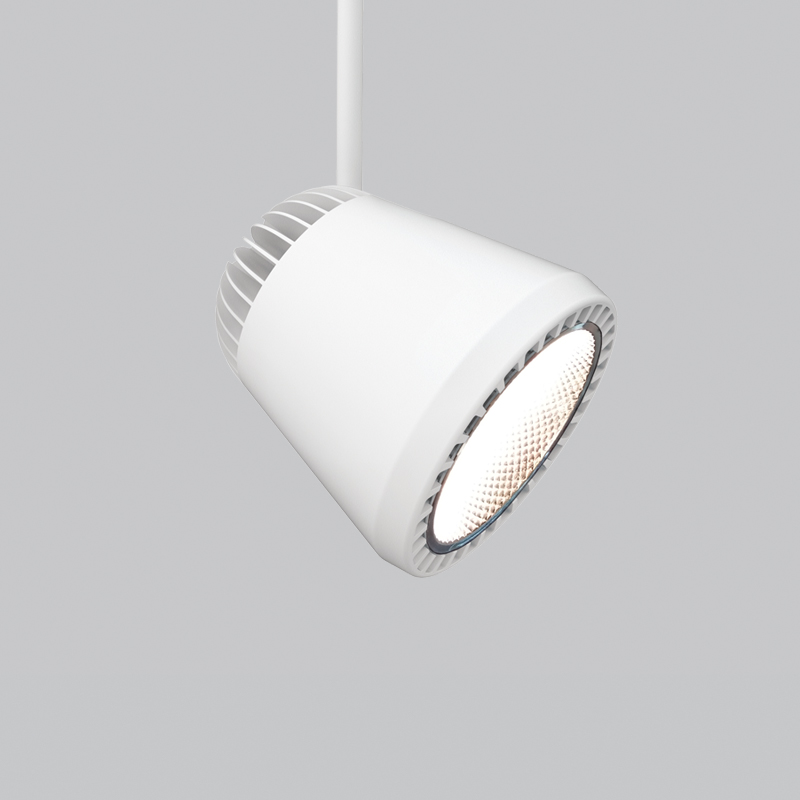

_Structure finish: BLKE | WHE
_Shade finish: BLKE | WHE
Focus is simply the most powerful spotlight designed by Eureka! This performance is achievable through the combination of a clever heatsink construction, a high quality LED and an efficient reflector.
INSTALLATION :
Focus can be set up on a rail with a track adaptor (integrated LED driver) or can be installed on a round canopy. For NON-IC installation, it is assembled on a deep junction box (included) with integrated LED driver. It is always assembled with a swivel and is mounted on a stem of desired length.
LIGHT SOURCE :
18W or 25W Chip-on-board (COB) providing an impressive output of more than 2000 delivered lumens. Available with phase or 0-10V dimming.
STRUCTURE :
The custom built heatsink was designed with hidden fins and an airflow channel that forces heat to smoothly navigate up to the top fins that are exposed to ambient air. Available with black or white architectural grade fine textured finish.
REFLECTOR :
Aluminum reflector with an impressive efficiency of 90% available with 15°, 38° or 55° beam angle (FWHM).
_RotationAngle: 350°
_AdjustmentAngle: 90°
_Structure finish: BLKE | WHE
_Shade finish: BLKE | WHE
_Available light sources
LED.18.30.15.DP
18W, LED 3000K (Warm), 15° (Beam angle) PHASE DIMMING 120V
LED.18.30.15.DV
18W, LED 3000K (Warm), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.38.DP
18W, LED 3000K (Warm), 38° (Beam angle) PHASE DIMMING 120V
LED.18.30.38.DV
18W, LED 3000K (Warm), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.55.DP
18W, LED 3000K (Warm), 55° (Beam angle) PHASE DIMMING 120V
LED.18.30.55.DV
18W, LED 3000K (Warm), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.25.30.15.DP
25W, LED 3000K (Warm), 15° (Beam angle) PHASE DIMMING 120V
LED.25.30.15.DV
25W, LED 3000K (Warm), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.25.30.38.DP
25W, LED 3000K (Warm), 38° (Beam angle) PHASE DIMMING 120V
LED.25.30.38.DV
25W, LED 3000K (Warm), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.25.30.55.DP
25W, LED 3000K (Warm), 55° (Beam angle) PHASE DIMMING 120V
LED.25.30.55.DV
25W, LED 3000K (Warm), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.15.DV
18W, LED 3500K (Natural), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.38.DP
18W, LED 3500K (Natural), 38° (Beam angle) PHASE DIMMING 120V
LED.18.35.38.DV
18W, LED 3500K (Natural), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.55.DP
18W, LED 3500K (Natural), 55° (Beam angle) PHASE DIMMING 120V
LED.18.35.55.DV
18W, LED 3500K (Natural), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.25.35.15.DP
25W, LED 3500K (Natural), 15° (Beam angle) PHASE DIMMING 120V
LED.25.35.15.DV
25W, LED 3500K (Natural), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.25.35.38.DP
25W, LED 3500K (Natural), 38° (Beam angle) PHASE DIMMING 120V
LED.25.35.38.DV
25W, LED 3500K (Natural), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.25.35.55.DP
25W, LED 3500K (Natural), 55° (Beam angle) PHASE DIMMING 120V
LED.25.35.55.DV
25W, LED 3500K (Natural), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.15.DP
18W, LED 4000K (Neutral), 15° (Beam angle) PHASE DIMMING 120V
LED.18.40.15.DV
18W, LED 4000K (Neutral), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.38.DP
18W, LED 4000K (Neutral), 38° (Beam angle) PHASE DIMMING 120V
LED.18.40.38.DV
18W, LED 4000K (Neutral), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.55.DP
18W, LED 4000K (Neutral), 55° (Beam angle) PHASE DIMMING 120V
LED.18.40.55.DV
18W, LED 4000K (Neutral), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.25.40.15.DP
25W, LED 4000K (Neutral), 15° (Beam angle) PHASE DIMMING 120V
LED.25.40.15.DV
25W, LED 4000K (Neutral), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.25.40.38.DP
25W, LED 4000K (Neutral), 38° (Beam angle) PHASE DIMMING 120V
LED.25.40.38.DV
25W, LED 4000K (Neutral), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.15.DP
18W, LED 3500K (Natural), 15° (Beam angle) PHASE DIMMING 120V
LED.25.40.55.DP
25W, LED 4000K (Neutral), 55° (Beam angle) PHASE DIMMING 120V
LED.25.40.55.DV
25W, LED 4000K (Neutral), 55° (Beam angle) 0-10V DIMMING 120-277V
