Dial
Wall Surface 4560.
Dial
Wall Surface
Product Characteristics:
DESIGN:
Dial combines a contemporary shape and innovative design with high-performance LED technology. The ultra-thin structure features a hidden rotational mechanism and a clever magnetically locking friction hinge system. Whether you install the Dial on a wall or ceiling, its design will never go unnoticed.
INSTALLATION:

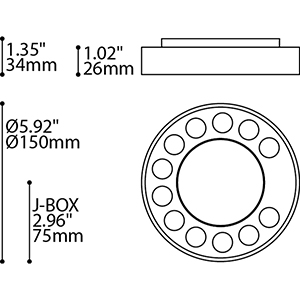

Effortless installation by means of two screws fastened to a deep junction box (3983) included with product. Designed with a rotating canopy (350°) and high quality friction hinge (angle up to 60°), Dial can stay into the flat position via an invisible magnetic system. No visible fasteners.
LIGHT SOURCE:
12W and 18W LED with included standard dimming types 0-10v or phase.
CONSTRUCTION:

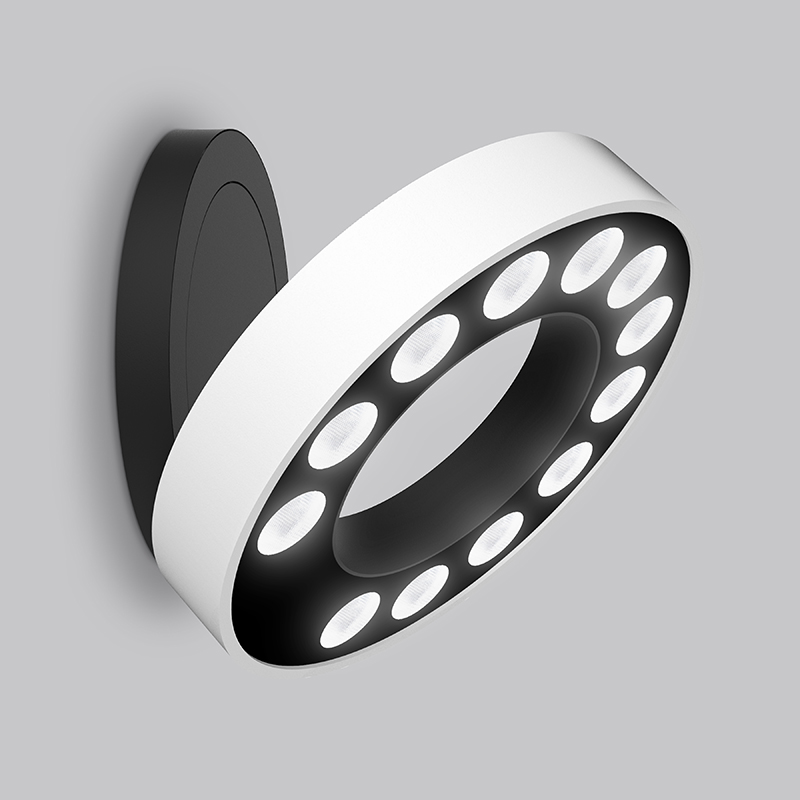

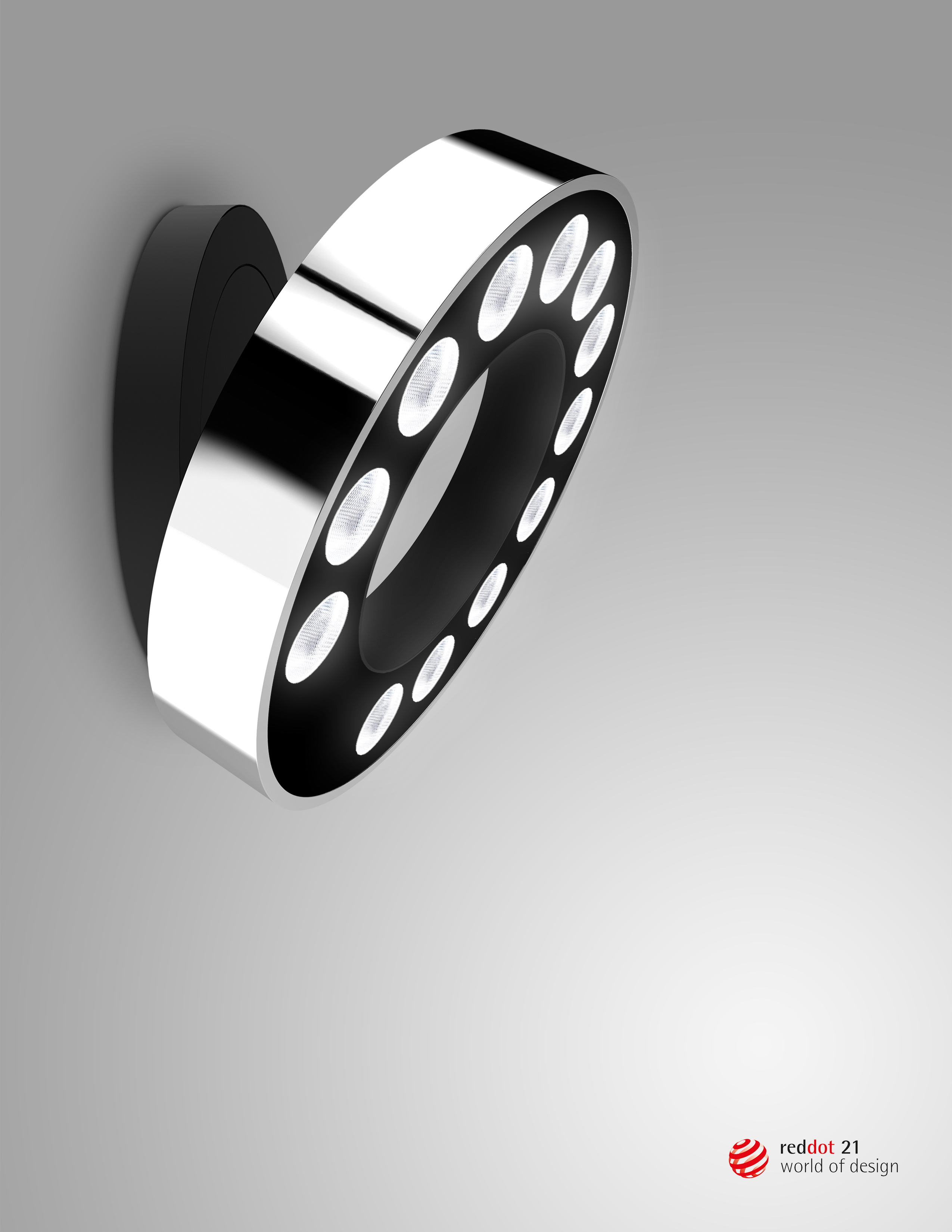

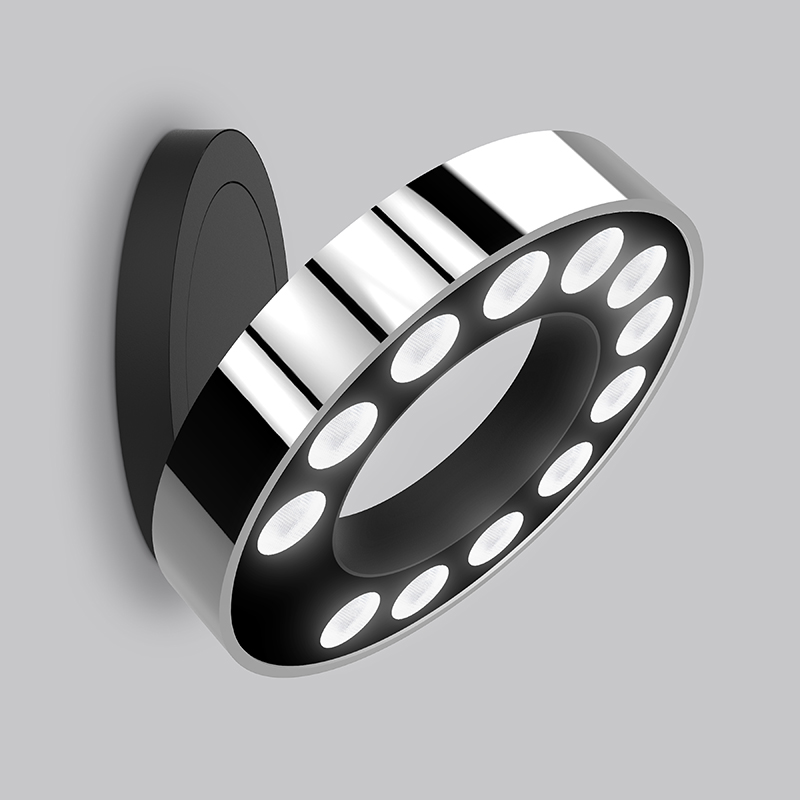

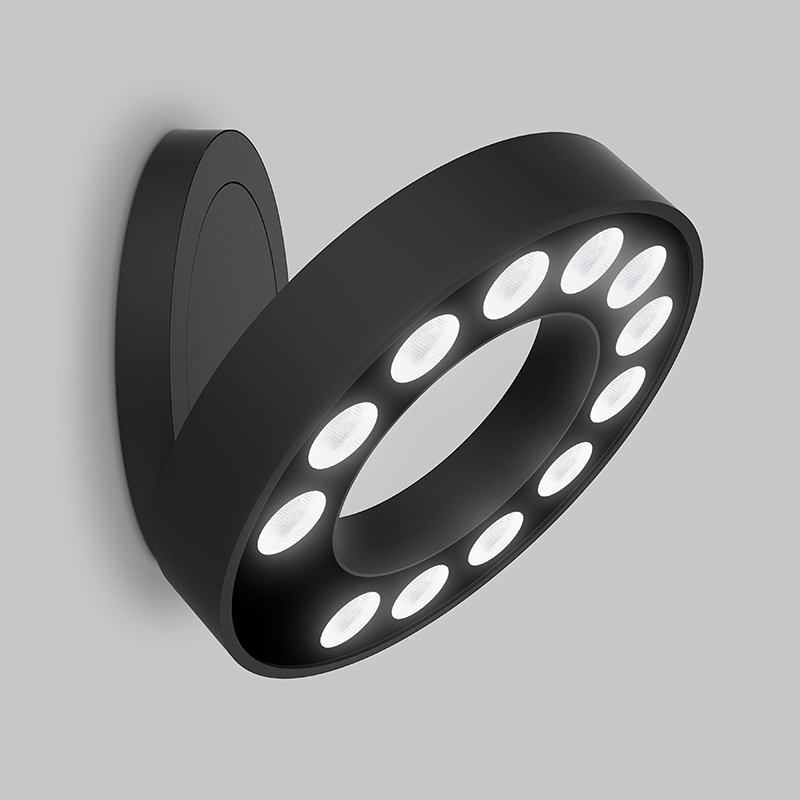

Aluminum structure and a custom die-cast heat sink with black fine textured finish. CNC machined aluminum frame available in chrome, white or black architectural grade fine textured finishes.
OPTIC:
Multiple TIR, available with narrow (18° FWHM) or medium (44° FWHM) beam. Tempered glass masked with black silkscreen printing isolates the optics to improve performance.
Rotation Angle: 350°
Adjustment Angle: 60°
Dial combines a contemporary shape and innovative design with high-performance LED technology. The ultra-thin structure features a hidden rotational mechanism and a clever magnetically locking friction hinge system. Whether you install the Dial on a wall or ceiling, its design will never go unnoticed.
INSTALLATION:
Effortless installation by means of two screws fastened to a deep junction box (3983) included with product. Designed with a rotating canopy (350°) and high quality friction hinge (angle up to 60°), Dial can stay into the flat position via an invisible magnetic system. No visible fasteners.
LIGHT SOURCE:
12W and 18W LED with included standard dimming types 0-10v or phase.
CONSTRUCTION:
Aluminum structure and a custom die-cast heat sink with black fine textured finish. CNC machined aluminum frame available in chrome, white or black architectural grade fine textured finishes.
OPTIC:
Multiple TIR, available with narrow (18° FWHM) or medium (44° FWHM) beam. Tempered glass masked with black silkscreen printing isolates the optics to improve performance.
Rotation Angle: 350°
Adjustment Angle: 60°
Available Light Sources
LED.30.18.DP
12W, LED 3000K (Warm), 18° (Beam angle) PHASE DIMMING 120V
LED.12.30.18.DV
12W, LED 3000K (Warm), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.30.44.DP
12W, LED 3000K (Warm), 44° (Beam angle) PHASE DIMMING 120V
LED.12.30.44.DV
12W, LED 3000K (Warm), 44° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.18.DP
18W, LED 3000K (Warm), 18° (Beam angle) PHASE DIMMING 120V
LED.18.30.18.DV
18W, LED 3000K (Warm), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.44.DP
18W, LED 3000K (Warm), 44° (Beam angle) PHASE DIMMING 120V
LED.18.30.44.DV
18W, LED 3000K (Warm), 44° (Beam angle) 0-10V DIMMING 120-277V
LED.40.18.DP
12W, LED 4000K (Neutral), 18° (Beam angle) PHASE DIMMING 120V
LED.12.40.18.DV
12W, LED 4000K (Neutral), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.12.40.44.DV
12W, LED 4000K (Neutral), 44° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.18.DP
18W, LED 4000K (Neutral), 18° (Beam angle) PHASE DIMMING 120V
LED.18.40.18.DV
18W, LED 4000K (Neutral), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.44.DP
18W, LED 4000K (Neutral), 44° (Beam angle) PHASE DIMMING 120V
LED.18.40.44.DV
18W, LED 4000K (Neutral), 44° (Beam angle) 0-10V DIMMING 120-277V
LED.12.40.44.DP
12W, LED 4000K (Neutral), 44° (Beam angle) PHASE DIMMING 120V
