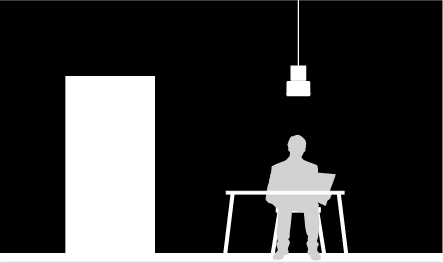

_Proportion
_Application shots
_IES Files
_Revit Files
EM Guide
nLight Guide
Quickship Brochure
_Product Companion
Stella
Ceiling Suspended
_Product Characteristics
DESIGN:
Stella, at its core, is a powerful light engine fused to a minimalist aluminum shell. A large diffusion dome hidden inside the shade create a uniform direct or direct/indirect illumination.
INSTALLATION:
Single cable or stem for a minimalist look.
LIGHT SOURCE:
A highly powerful COB type light source project a light, softened by a large polymer diffusion dome to create an illumination that is efficient & uniform. Some of the light is reflected upward by the dome; thus illuminating indirectly the ceiling. Many control options available.
SHADE:
The precision spun aluminum shade is optimized to reduce glare. White internal finish for optimal light reflection. _Structure finish: BLKE | WHE
_Shade finish: BLKE | WHE
Stella, at its core, is a powerful light engine fused to a minimalist aluminum shell. A large diffusion dome hidden inside the shade create a uniform direct or direct/indirect illumination.
INSTALLATION:
Single cable or stem for a minimalist look.
LIGHT SOURCE:
A highly powerful COB type light source project a light, softened by a large polymer diffusion dome to create an illumination that is efficient & uniform. Some of the light is reflected upward by the dome; thus illuminating indirectly the ceiling. Many control options available.
SHADE:
The precision spun aluminum shade is optimized to reduce glare. White internal finish for optimal light reflection. _Structure finish: BLKE | WHE
_Shade finish: BLKE | WHE
_nLight Air Enabled™
_Available light sources
LED.35.DP
22W, LED 3500K (Natural) PHASE DIMMING 120V
LED.27.HO.DP
45W, LED HO 2700K (Very Warm) PHASE DIMMING 120V
LED.27.HO.DV
45W, LED HO 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.HO.NLIGHT
45W, LED HO 2700K (Very Warm) NLight Wired 120-277V
LED.27.HO.NLTAIR2
45W, LED HO 2700K (Very Warm) NLight Air2 120-277V
LED.27.DP
22W, LED 2700K (Very Warm) PHASE DIMMING 120V
LED.27.DV
22W, LED 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.NLIGHT
22W, LED 2700K (Very Warm) NLight Wired 120-277V
LED.27.NLTAIR2
22W, LED 2700K (Very Warm) NLight Air2 120-277V
LED.30.HO.DP
45W, LED HO 3000K (Warm) PHASE DIMMING 120V
LED.30.HO.DV
45W, LED HO 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.HO.NLIGHT
45W, LED HO 3000K (Warm) NLight Wired 120-277V
LED.30.HO.NLTAIR2
45W, LED HO 3000K (Warm) NLight Air2 120-277V
LED.30.DP
22W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
22W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.NLIGHT
22W, LED 3000K (Warm) NLight Wired 120-277V
LED.30.NLTAIR2
22W, LED 3000K (Warm) NLight Air2 120-277V
LED.35.HO.DP
45W, LED HO 3500K (Natural) PHASE DIMMING 120V
LED.35.HO.DV
45W, LED HO 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.HO.NLIGHT
45W, LED HO 3500K (Natural) NLight Wired 120-277V
LED.35.HO.NLTAIR2
45W, LED HO 3500K (Natural) NLight Air2 120-277V
LED.35.DV
22W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.NLIGHT
22W, LED 3500K (Natural) NLight Wired 120-277V
LED.35.NLTAIR2
22W, LED 3500K (Natural) NLight Air2 120-277V
LED.40.HO.DP
45W, LED HO 4000K (Neutral) PHASE DIMMING 120V
LED.40.HO.DV
45W, LED HO 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.HO.NLIGHT
45W, LED HO 4000K (Neutral) NLight Wired 120-277V
LED.40.HO.NLTAIR2
45W, LED HO 4000K (Neutral) NLight Air2 120-277V
LED.40.DP
22W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
22W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.NLIGHT
22W, LED 4000K (Neutral) NLight Wired 120-277V
LED.40.NLTAIR2
22W, LED 4000K (Neutral) NLight Air2 120-277V
_Projects Featuring stella
