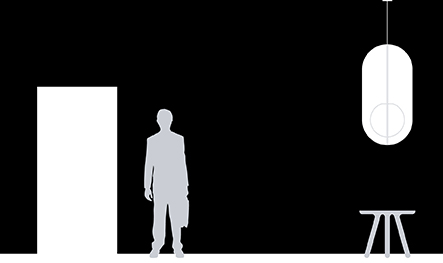

_Proportion
_Application shots
_IES Files
_Revit Files
EM Guide
Acoustic Lab Results
nLight Guide
_Accessories
_Product Companion
Quadrant
Ceiling Suspended
_Product Characteristics
DESIGN:

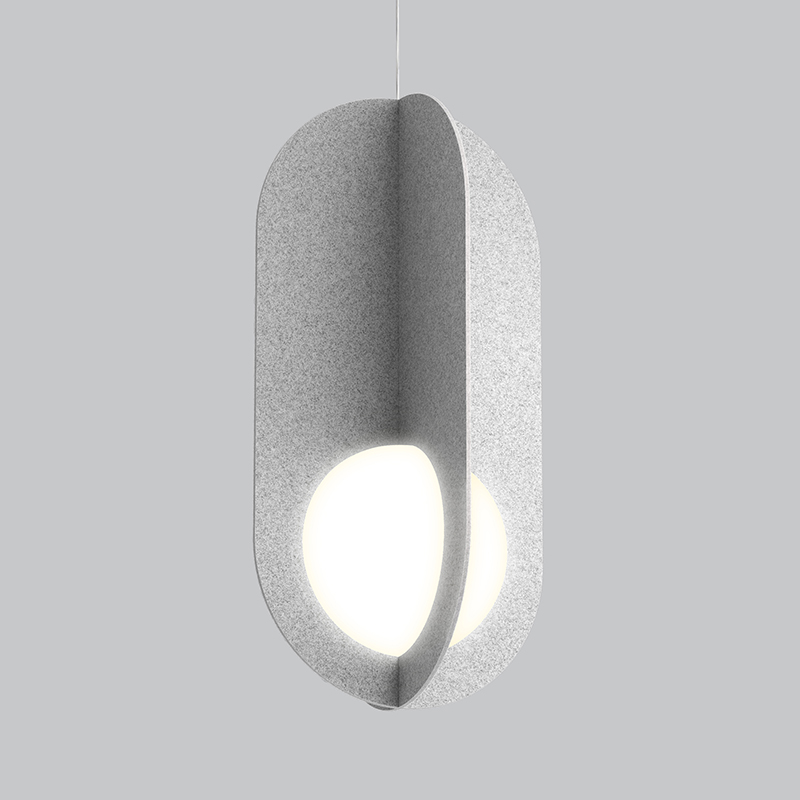

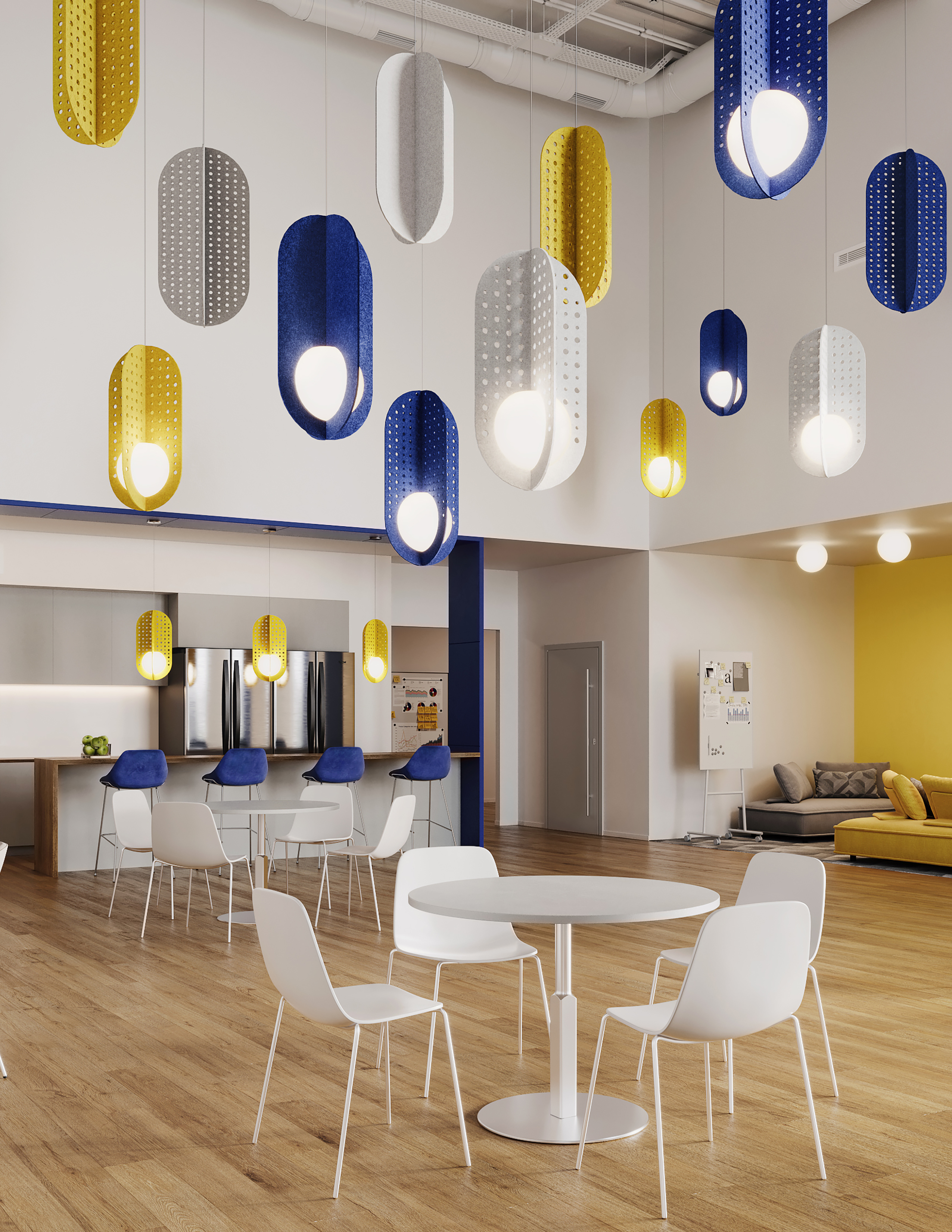

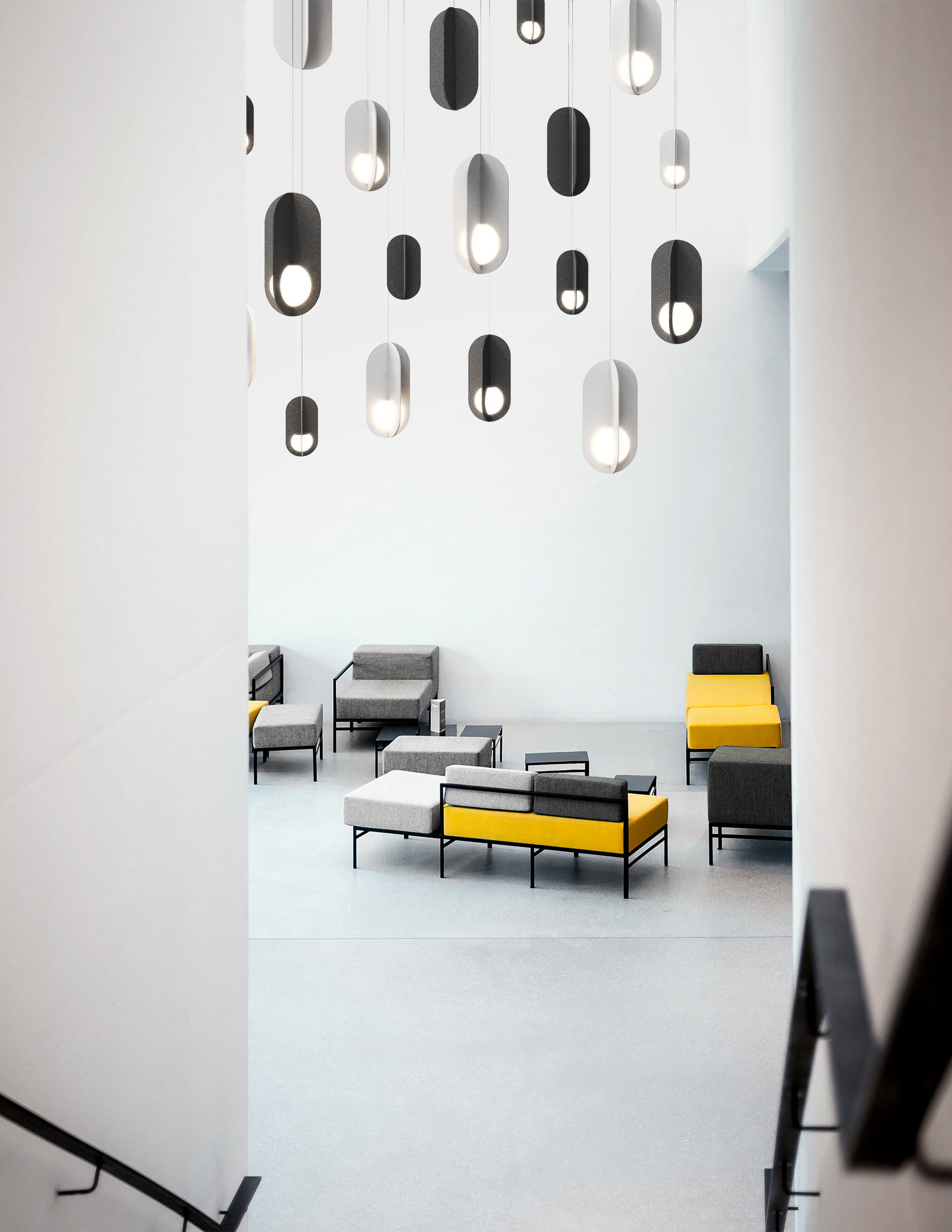

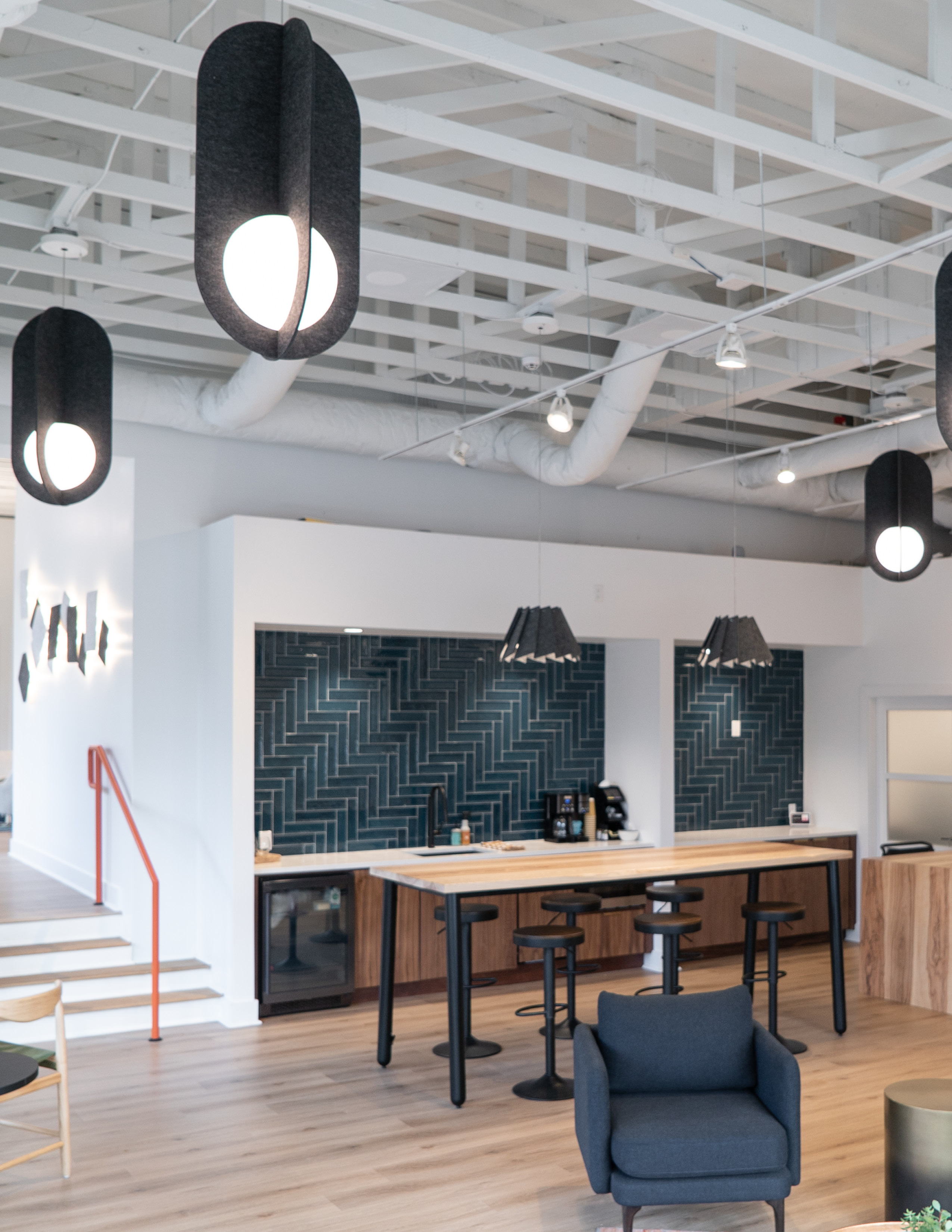

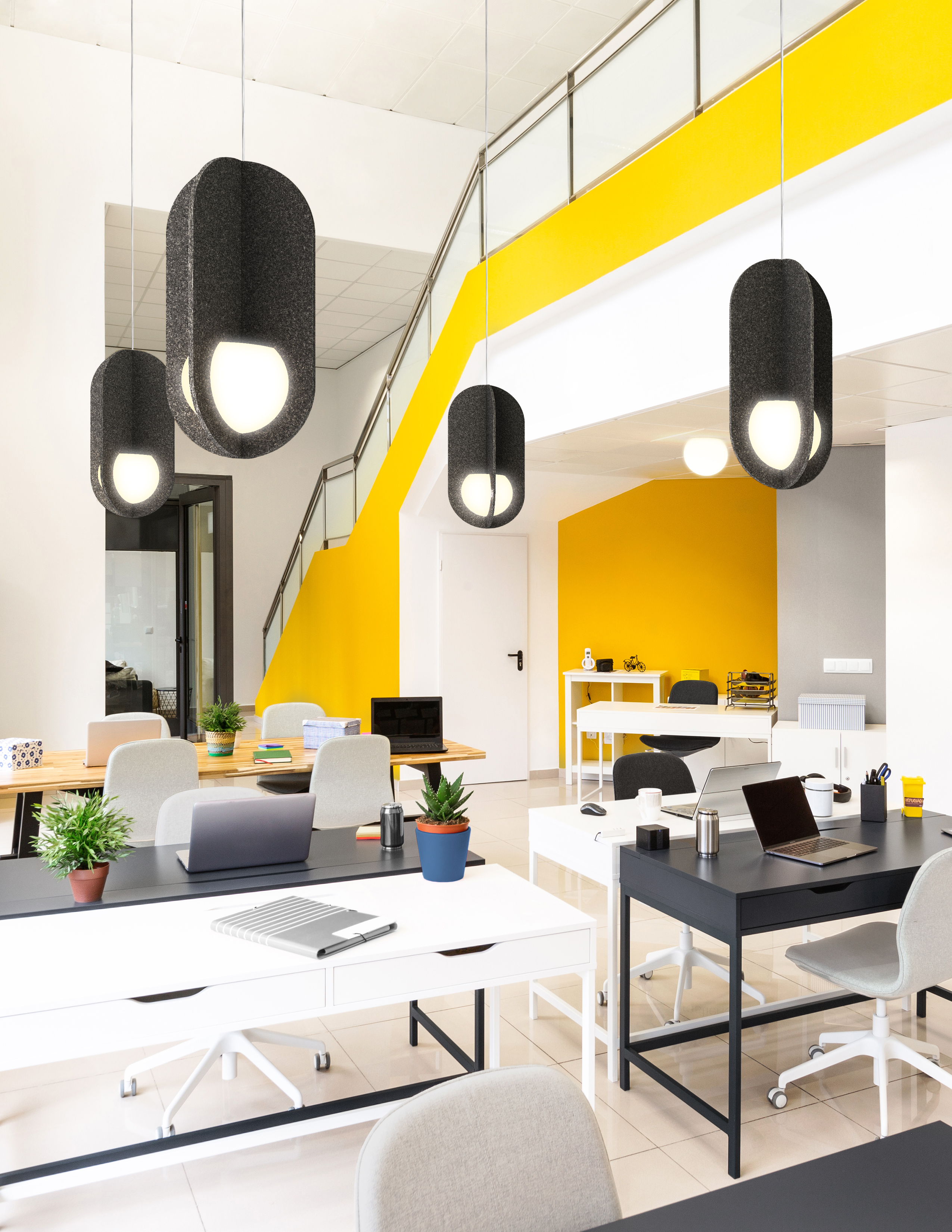

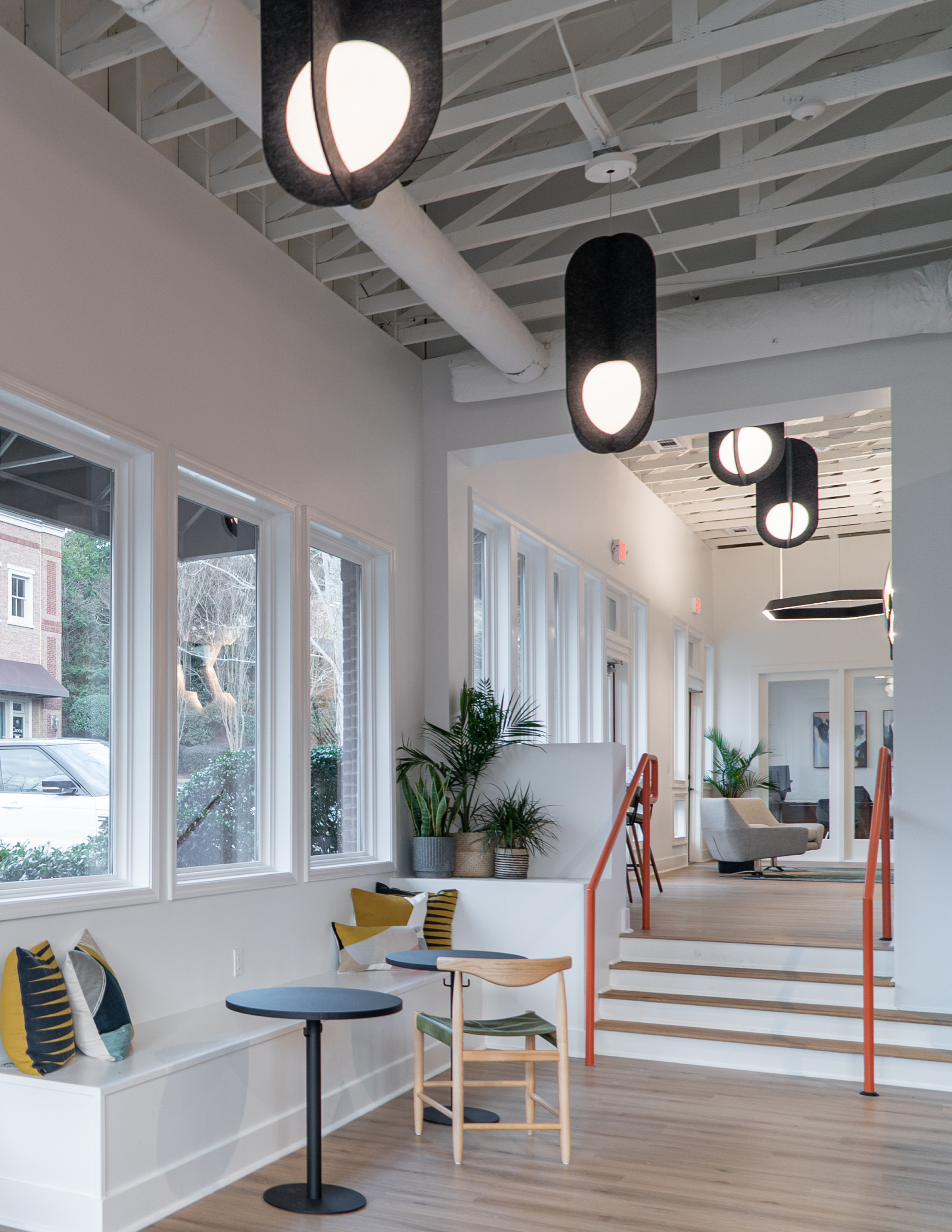

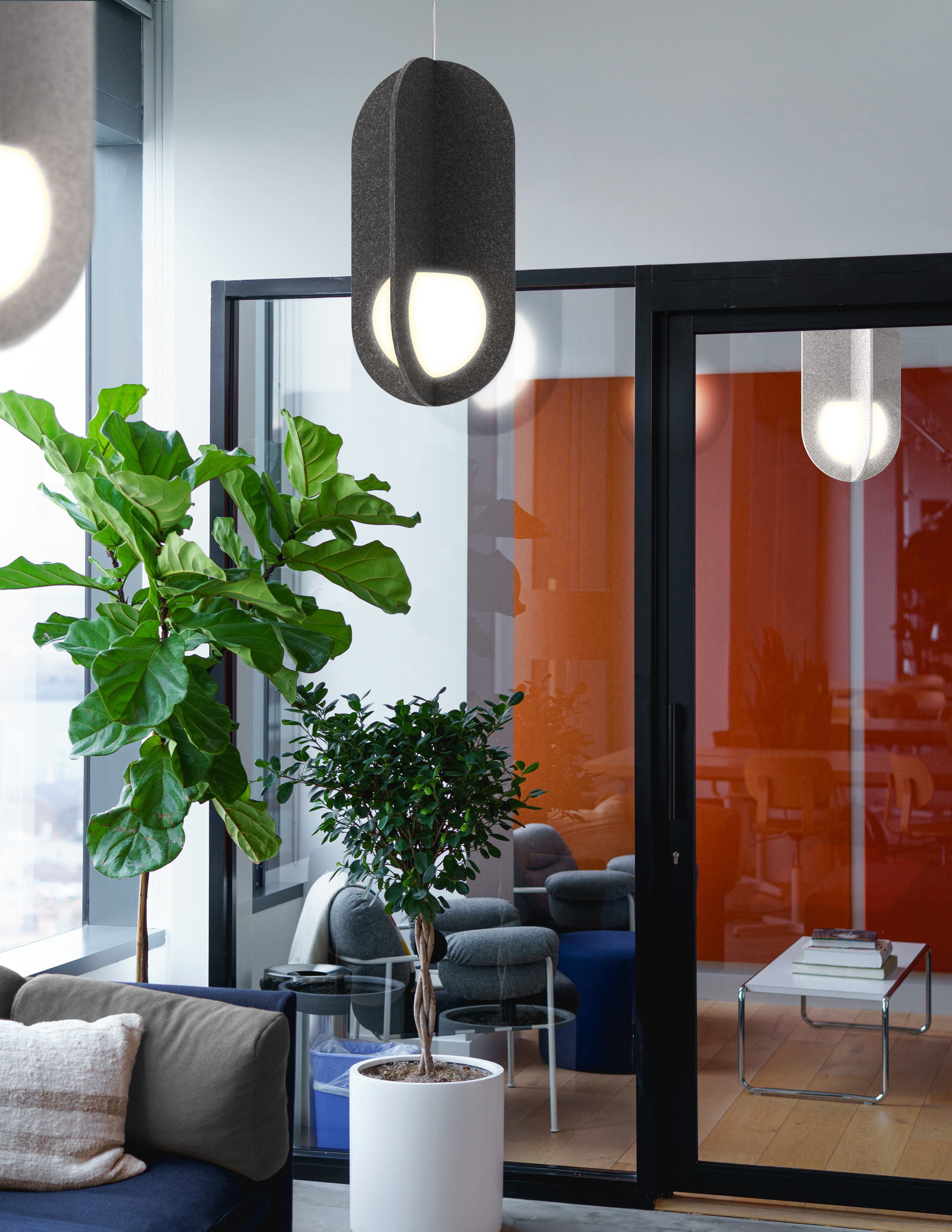

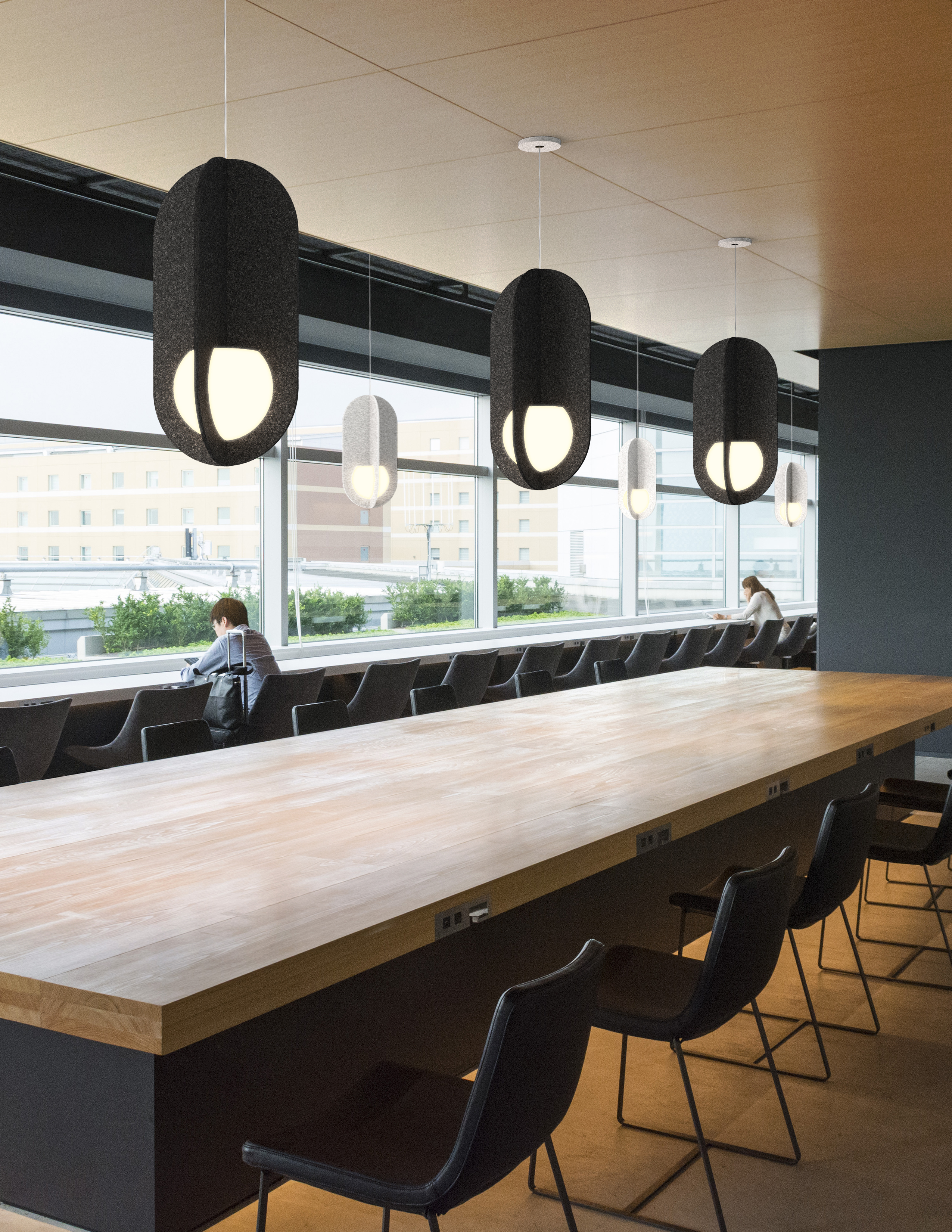

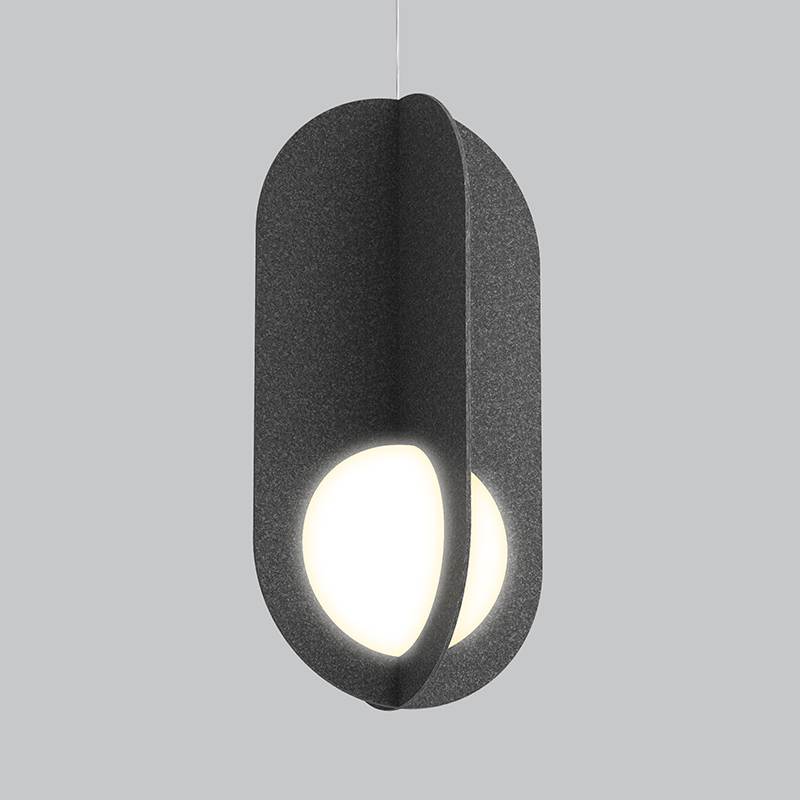

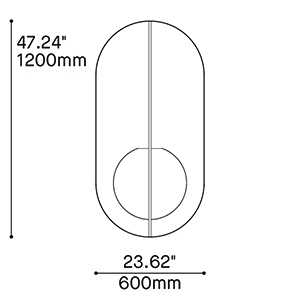

Quadrant pendant highlights our discreet Mika 4230 diffusor by redefining its volume and scale. Lighted versions (4232) or the versions without light source (4232U) can be used alone or combined to create impressive layouts, while multiplying the sound absorption. Available in 3 sizes and with a variety of decorative cutout pattern made by a high precision CNC cutter.
INSTALLATION:
Quadrant is suspended on a clear power cable with standard or slim magnetic canopy available in white fine textured finish, with no visible fastener. Quadrant Unlit is suspended on an aircraft cable without canopy and is assembled without tools with an ingenious crisscross joining system.
SHADE:
The shade is composed of two rigid interlocked sound absorbing panels that increases acoustic comfort. They are made from synthetic felt composed of recycled and recyclable polyethylene (PET) fibers with low VOC, formaldehyde-free, non-irritant and odorless. Panels are available in 30 colors.
_Structure finish: BLKE | WHE
_Shade finish: ABF | AWF | BBF | BOF | BTF | BYF | CHF | NBF | OBF | PGF | PREM | REF | SGF | TGF | ZFF
Quadrant pendant highlights our discreet Mika 4230 diffusor by redefining its volume and scale. Lighted versions (4232) or the versions without light source (4232U) can be used alone or combined to create impressive layouts, while multiplying the sound absorption. Available in 3 sizes and with a variety of decorative cutout pattern made by a high precision CNC cutter.
INSTALLATION:
Quadrant is suspended on a clear power cable with standard or slim magnetic canopy available in white fine textured finish, with no visible fastener. Quadrant Unlit is suspended on an aircraft cable without canopy and is assembled without tools with an ingenious crisscross joining system.
SHADE:
The shade is composed of two rigid interlocked sound absorbing panels that increases acoustic comfort. They are made from synthetic felt composed of recycled and recyclable polyethylene (PET) fibers with low VOC, formaldehyde-free, non-irritant and odorless. Panels are available in 30 colors.
_Structure finish: BLKE | WHE
_Shade finish: ABF | AWF | BBF | BOF | BTF | BYF | CHF | NBF | OBF | PGF | PREM | REF | SGF | TGF | ZFF
_nLight Air Enabled™
_Available light sources
LED.27.DP
12W, LED 2700K (Very Warm), 18° (Beam angle) PHASE DIMMING 120V
LED.27.DV
12W, LED 2700K (Very Warm), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.27.NLIGHT
12W, LED 2700K (Very Warm), 18° (Beam angle) NLight Wired 120-277V
LED.27.NLTAIR2
12W, LED 2700K (Very Warm), 18° (Beam angle) NLight Air2 120-277V
LED.30.DP
12W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
12W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.NLIGHT
12W, LED 3000K (Warm) NLight Wired 120-277V
LED.30.NLTAIR2
12W, LED 3000K (Warm) NLight Air2 120-277V
LED.35.DP
12W, LED 3500K (Natural), PHASE DIMMING 120V
LED.35.DV
12W, 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.NLIGHT
12W, 3500K (Natural) NLight Wired 120-277V
LED.35.NLTAIR2
12W, 3500K (Natural) NLight Air2 120-277V
LED.40.DP
12W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
12W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.NLIGHT
12W, LED 4000K (Neutral) NLight Wired 120-277V
LED.40.NLTAIR2
12W, LED 4000K (Neutral) NLight Air2 120-277V
