Pico
Ceiling Suspended 4021
_Product Companion

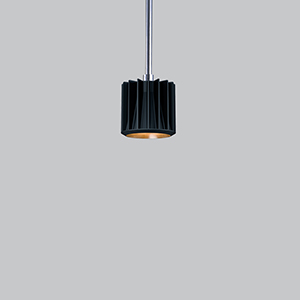

Pico
Ceiling Suspended
_Product Characteristics
DESIGN:
Nano and his little brother, Pico, pack a big punch in tiny formats. Their industrial look with visible heat sink allows for an impressive LED performance.
LIGHT SOURCE:
4W and 8W LED with 0-10V (DV) or phase (DP) dimming versions available.
OPTIC:
17° or 48° Beam Angle Total Internal Reflecting (TIR) Multi-lens.
STRUCTURE:
Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
INSTALLATION:
Available on canopy or track mount adaptor, the suspended version of Pico is mounted on a field adjustable 6mm stem without swivel.
_Structure finish: CHR
Nano and his little brother, Pico, pack a big punch in tiny formats. Their industrial look with visible heat sink allows for an impressive LED performance.
LIGHT SOURCE:
4W and 8W LED with 0-10V (DV) or phase (DP) dimming versions available.
OPTIC:
17° or 48° Beam Angle Total Internal Reflecting (TIR) Multi-lens.
STRUCTURE:
Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
INSTALLATION:
Available on canopy or track mount adaptor, the suspended version of Pico is mounted on a field adjustable 6mm stem without swivel.
_Structure finish: CHR
_Available light sources
LED.4.30.17
4W, LED 3000K (Warm), 17° (Beam angle) 120-277V
LED.4.30.48
4W, LED 3000K (Warm), 48° (Beam angle) 120-277V
LED.8.30.17
8W, LED 3000K (Warm), 17° (Beam angle) 120V
LED.8.30.48
8W, LED 3000K (Warm), 48° (Beam angle) 120V
LED.4.35.17
4W, LED 3500K (Natural), 17° (Beam angle) 120-277V
LED.4.35.48
4W, LED 3500K (Natural), 48° (Beam angle) 120-277V
LED.8.35.17
8W, LED 3500K Natural), 17° (Beam angle) 120V
LED.8.35.48
8W, LED 3500K (Natural), 48° (Beam angle) 120V
LED.4.40.17
4W, LED 4000K (Neutral), 17° (Beam angle) 120-277V
LED.4.40.48
4W, LED 4000K (Neutral), 48° (Beam angle) 120-277V
LED.8.40.17
8W, LED 4000K (Neutral), 17° (Beam angle) 120V
LED.8.40.48
8W, LED 4000K (Neutral), 48° (Beam angle) 120V
