FOCUS

Wall Surface 4547.

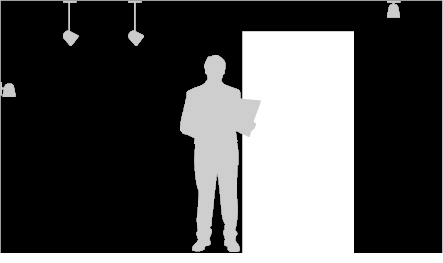

_Brochure _Spec Sheet _Installation Sheet _Proportion _Application shots _IES Files _Accessories
_Product Companion
2047
4547

FOCUS

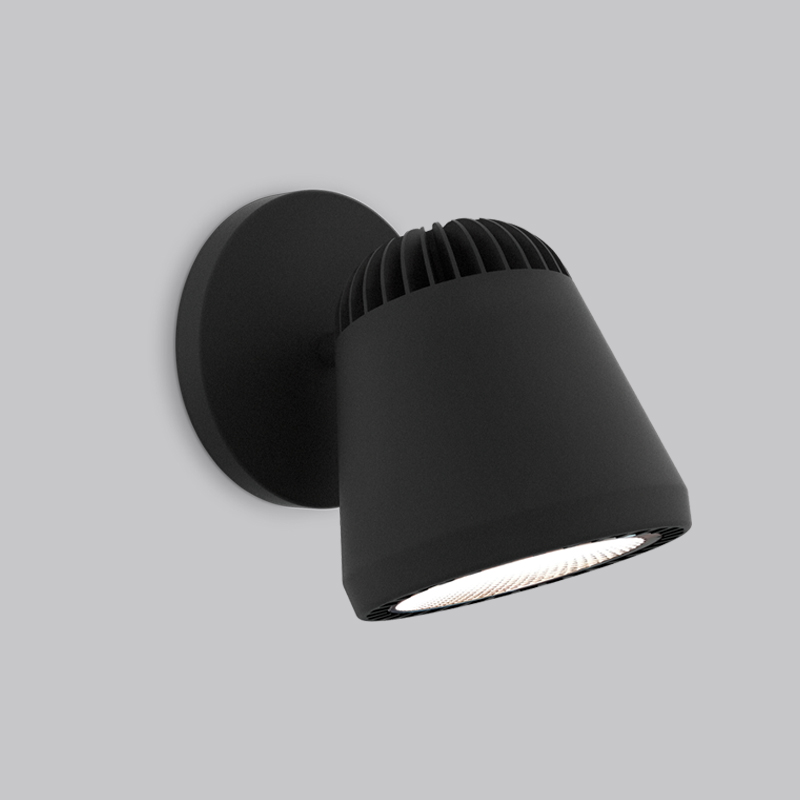

_Product Characteristics DESIGN:
Focus is simply the most powerful spotlight designed by Eureka! This performance is achievable through the combination of a clever heatsink construction, a high quality LED
and an efficient reflector.

INSTALLATION:

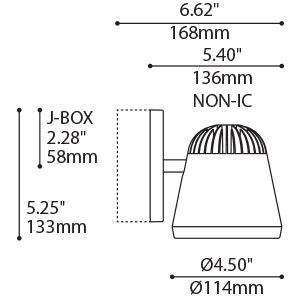

Focus is mounted on a round discreet canopy for wall or ceiling installation and is designed with a friction swivel. It is assembled on a deep junction box (included) with integrated LED driver.

LIGHT SOURCE:
18W or 25W Chip-on-board (COB) providing an impressive output of more than 2000 delivered lumens. Available with phase or 0-10V dimming.

STRUCTURE:
The custom built heatsink was designed with hidden fins and an airflow channel that forces heat to smoothly navigate up to the top fins that are exposed to ambient air. Available with

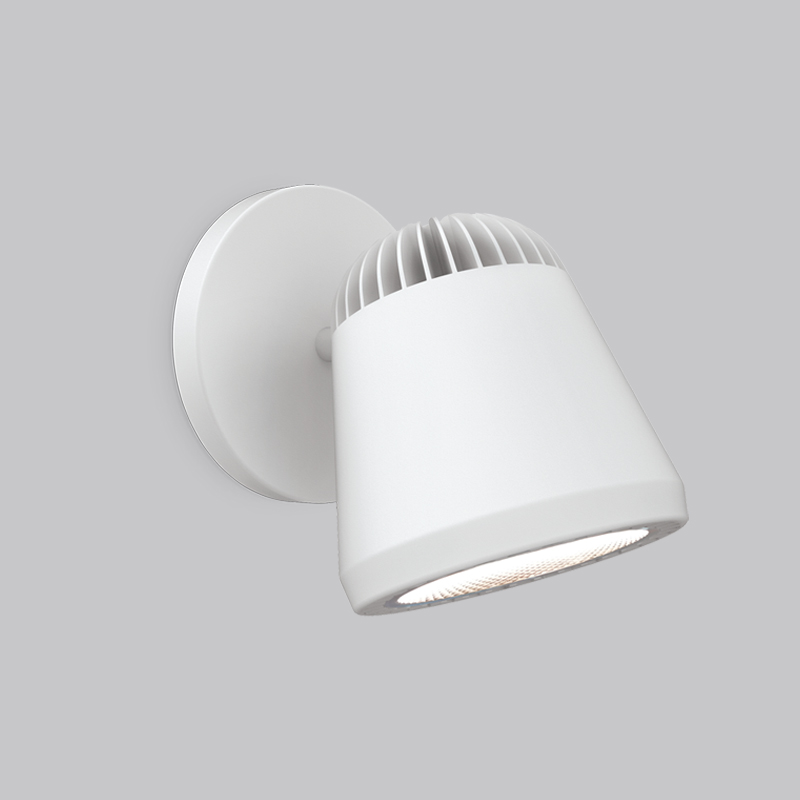

black or white architectural grade fine textured finish.

REFLECTOR:
Aluminum reflector with an impressive efficiency of 90% available with 15°, 24°, 38° or 55° beam angle (FWHM).

_RotationAngle: 350°
_AdjustmentAngle: 90°
_Available light sources
LED.18.30.15.DP
18W, LED 3000K (Warm), 15° (Beam angle) PHASE DIMMING 120V
LED.18.30.15.DV
18W, LED 3000K (Warm), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.38.DP
18W, LED 3000K (Warm), 38° (Beam angle) PHASE DIMMING 120V
LED.18.30.38.DV
18W, LED 3000K (Warm), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.55.DP
18W, LED 3000K (Warm), 55° (Beam angle) PHASE DIMMING 120V
LED.18.30.55.DV
18W, LED 3000K (Warm), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.25.30.15.DP
25W, LED 3000K (Warm), 15° (Beam angle) PHASE DIMMING 120V
LED.25.30.15.DV
25W, LED 3000K (Warm), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.25.30.38.DP
25W, LED 3000K (Warm), 38° (Beam angle) PHASE DIMMING 120V
LED.25.30.38.DV
25W, LED 3000K (Warm), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.25.30.55.DP
25W, LED 3000K (Warm), 55° (Beam angle) PHASE DIMMING 120V
LED.25.30.55.DV
25W, LED 3000K (Warm), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.15.DP
18W, LED 3500K (Natural), 15° (Beam angle) PHASE DIMMING 120V
LED.18.35.15.DV
18W, LED 3500K (Natural), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.38.DP
18W, LED 3500K (Natural), 38° (Beam angle) PHASE DIMMING 120V
LED.18.35.38.DV
18W, LED 3500K (Natural), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.55.DV
18W, LED 3500K (Natural), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.25.35.15.DP
25W, LED 3500K (Natural), 15° (Beam angle) PHASE DIMMING 120V
LED.25.35.15.DV
25W, LED 3500K (Natural), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.25.35.38.DP
25W, LED 3500K (Natural), 38° (Beam angle) PHASE DIMMING 120V
LED.25.35.38.DV
25W, LED 3500K (Natural), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.25.35.55.DP
25W, LED 3500K (Natural), 55° (Beam angle) PHASE DIMMING 120V
LED.25.35.55.DV
25W, LED 3500K (Natural), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.15.DP
18W, LED 4000K (Neutral), 15° (Beam angle) PHASE DIMMING 120V
LED.18.40.15.DV
18W, LED 4000K (Neutral), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.38.DP
18W, LED 4000K (Neutral), 38° (Beam angle) PHASE DIMMING 120V
LED.18.40.38.DV
18W, LED 4000K (Neutral), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.55.DP
18W, LED 4000K (Neutral), 55° (Beam angle) PHASE DIMMING 120V
LED.18.40.55.DV
18W, LED 4000K (Neutral), 55° (Beam angle) 0-10V DIMMING 120-277V
LED.25.40.15.DP
25W, LED 4000K (Neutral), 15° (Beam angle) PHASE DIMMING 120V
LED.25.40.15.DV
25W, LED 4000K (Neutral), 15° (Beam angle) 0-10V DIMMING 120-277V
LED.25.40.38.DP
25W, LED 4000K (Neutral), 38° (Beam angle) PHASE DIMMING 120V
LED.25.40.38.DV
25W, LED 4000K (Neutral), 38° (Beam angle) 0-10V DIMMING 120-277V
LED.25.40.55.DP
25W, LED 4000K (Neutral), 55° (Beam angle) PHASE DIMMING 120V
LED.25.40.55.DV
25W, LED 4000K (Neutral), 55° (Beam angle) 0-10V DIMMING 120-277V

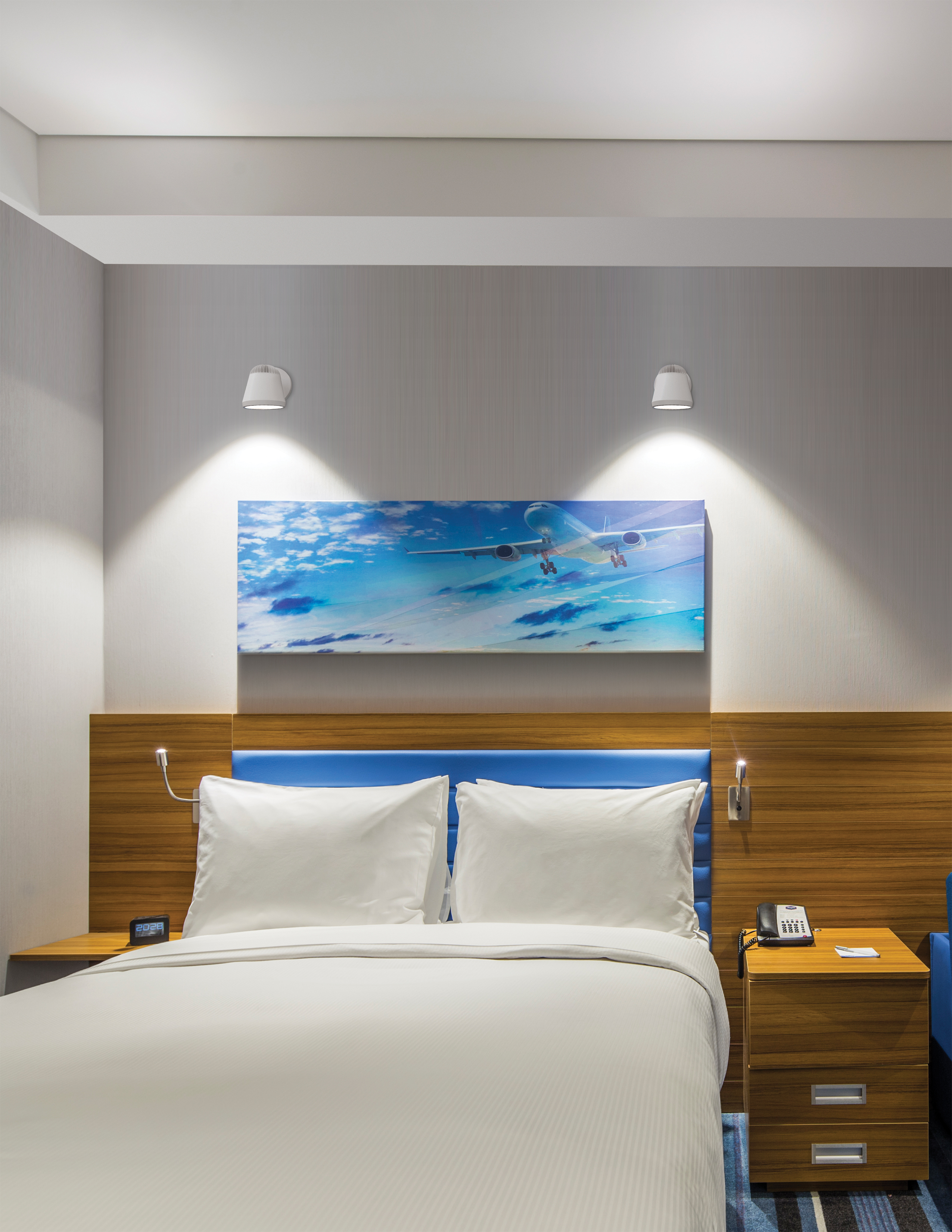

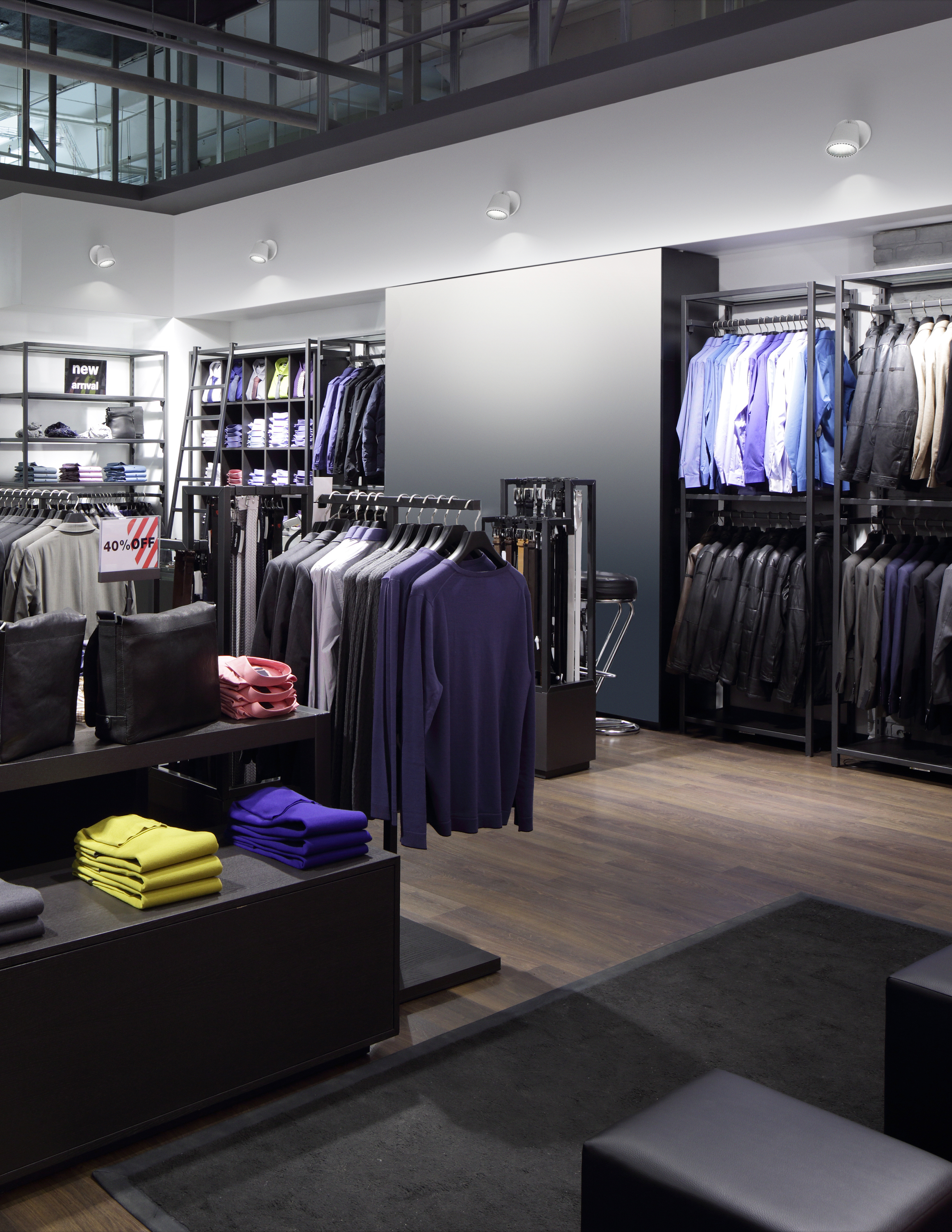

_Application Photos
