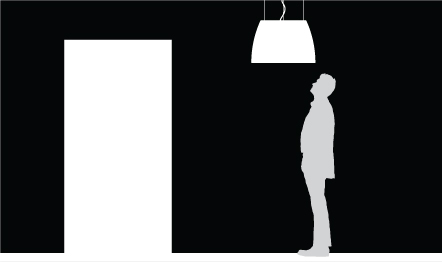

_Proportion

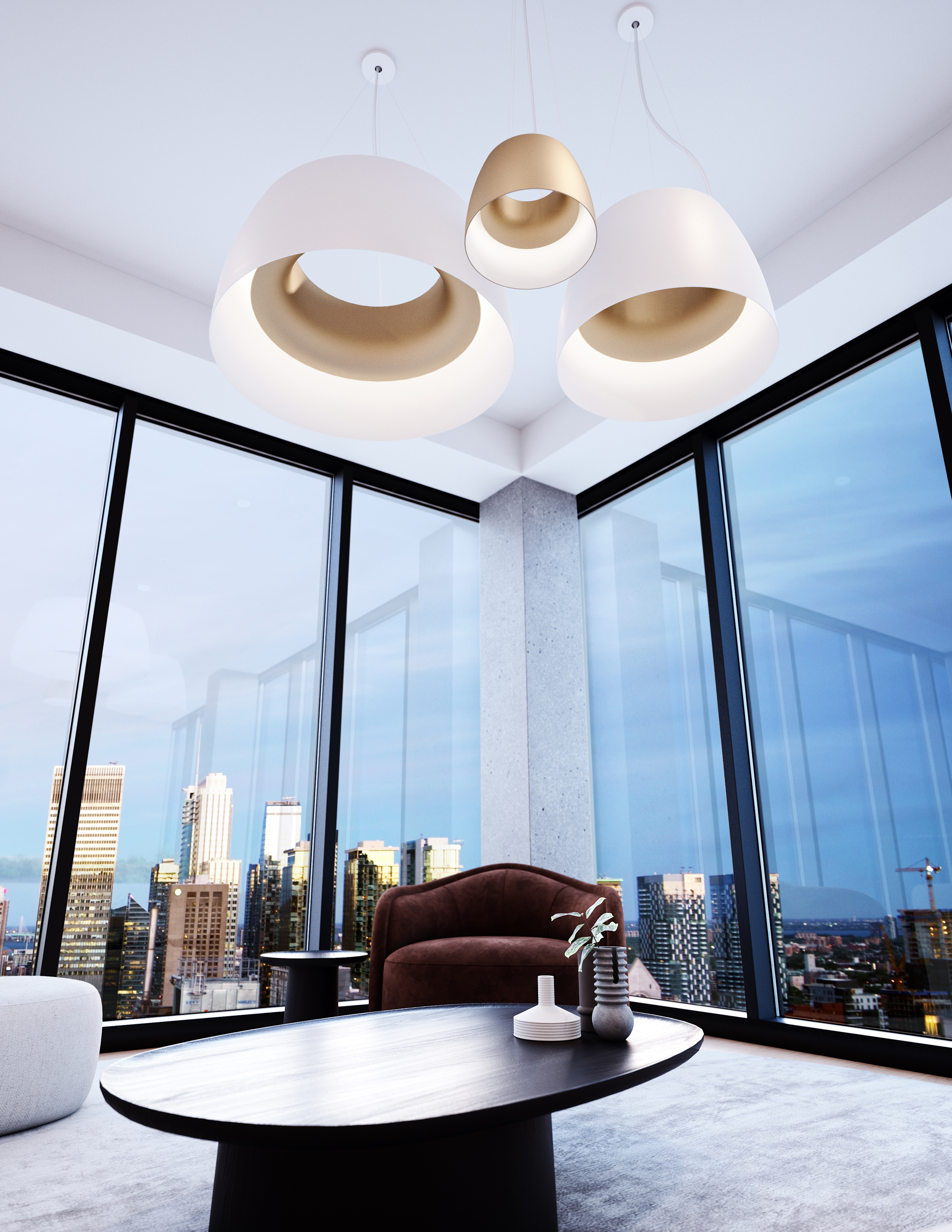

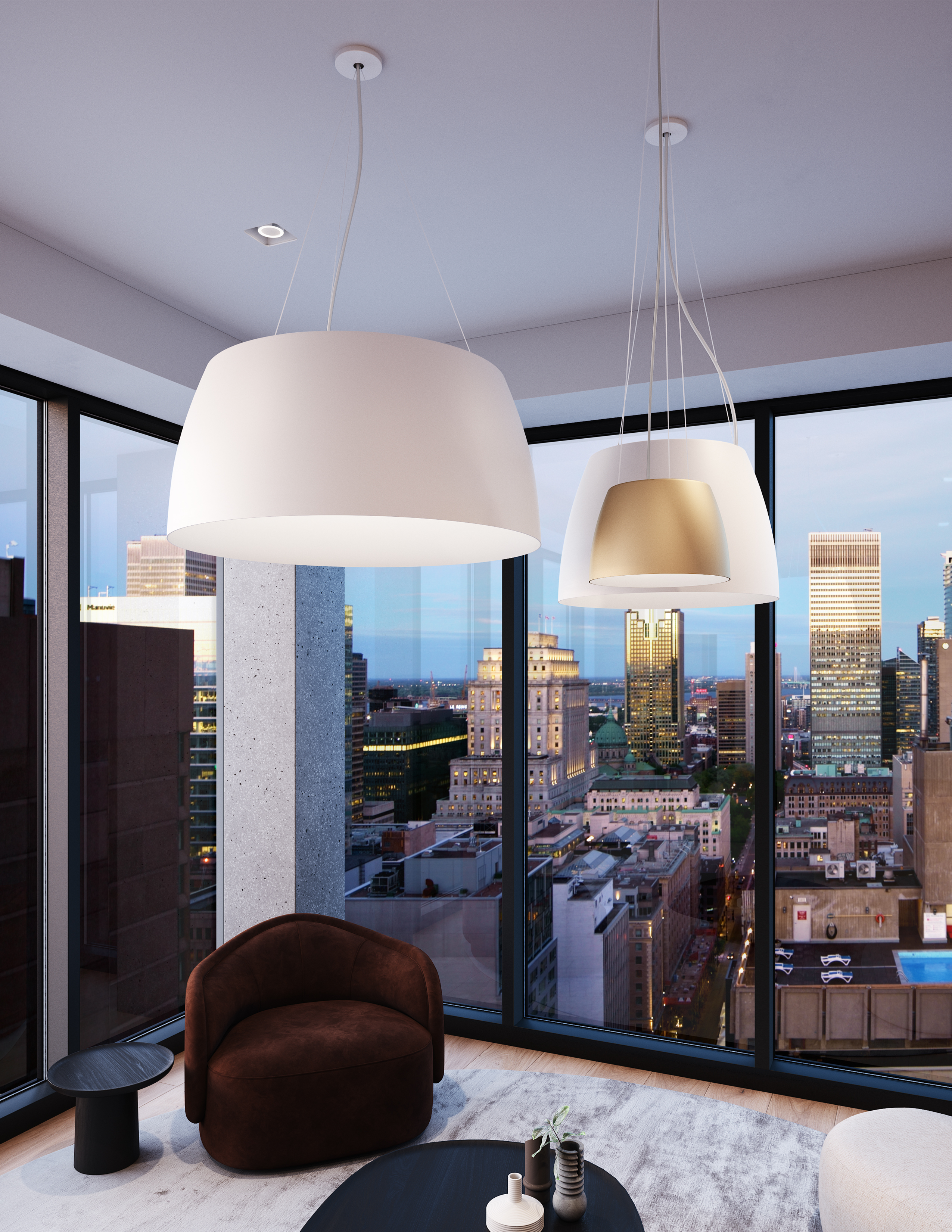

_Application shots
_IES Files
_Revit Files
EM Guide
nLight Guide
Quickship Brochure
_Product Companion

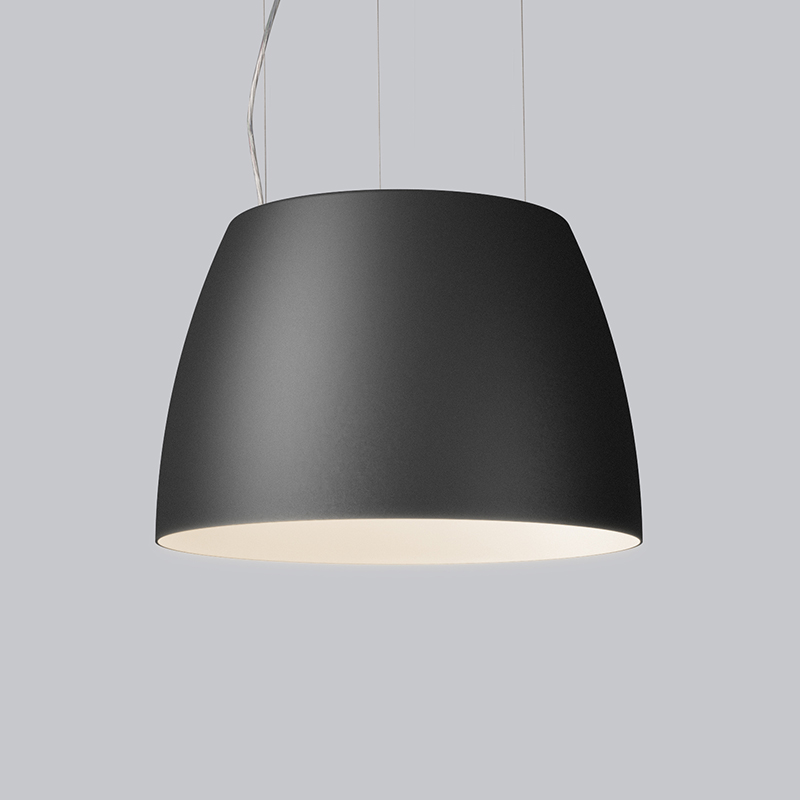

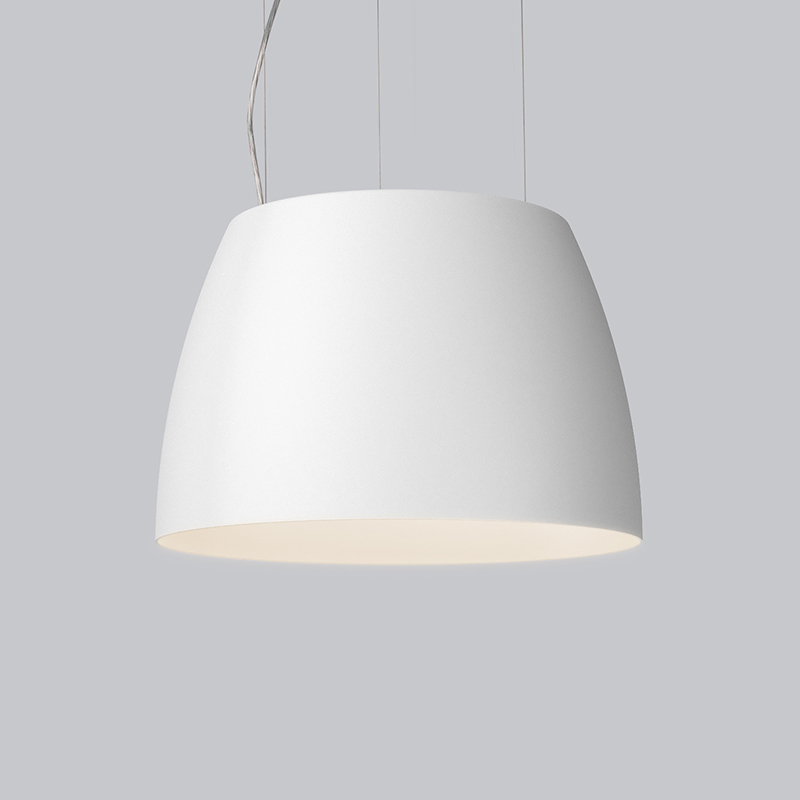

Aperture 24''
Ceiling Suspended
_Product Characteristics
DESIGN:

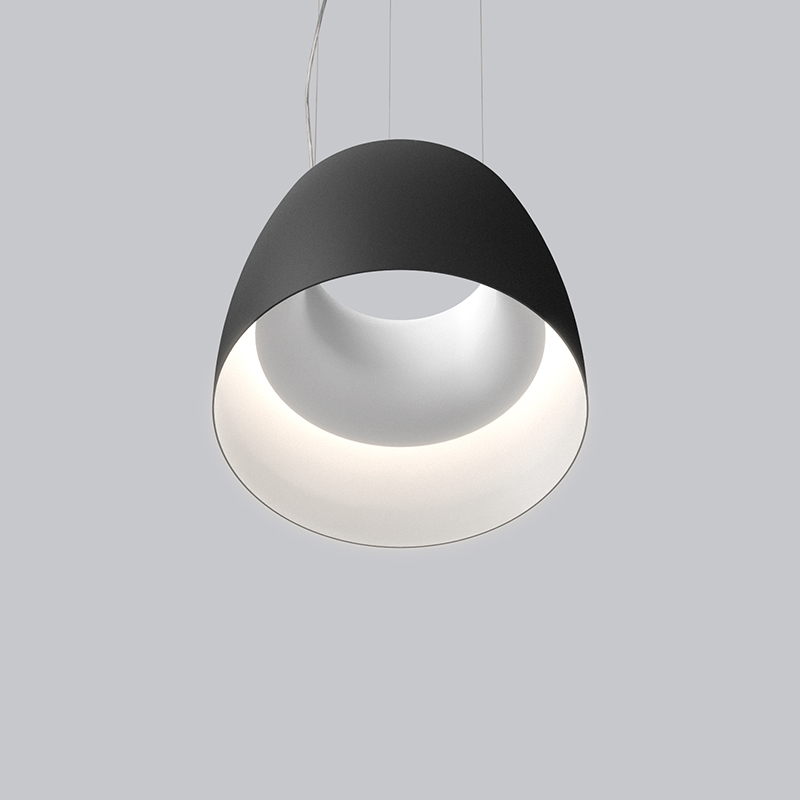

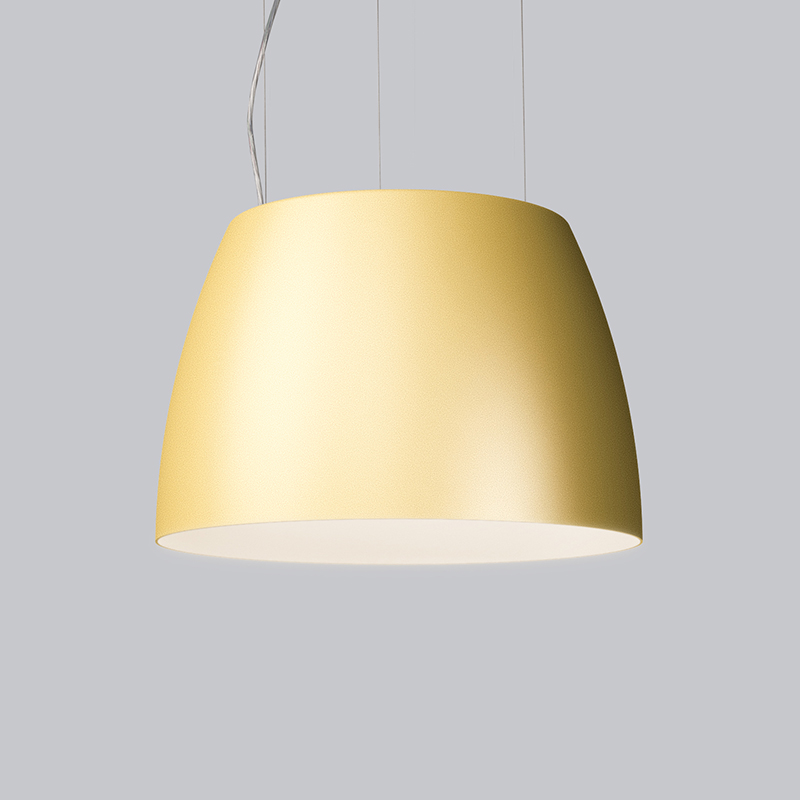

Hidden inside of an elegant form is a beautiful soft glow of LED illumination that encircles a surprising hollow core. Aperture is available in three formats, small, large and extra-large.
INSTALLATION:
Easy to install, adjust and level triple aircraft cable mounting.
LIGHT SOURCE:
Aperture features a custom LED light engine that is available with a standard phase or 0-10V dimming driver. Emergency option available.
EXTERIOR FINISH:

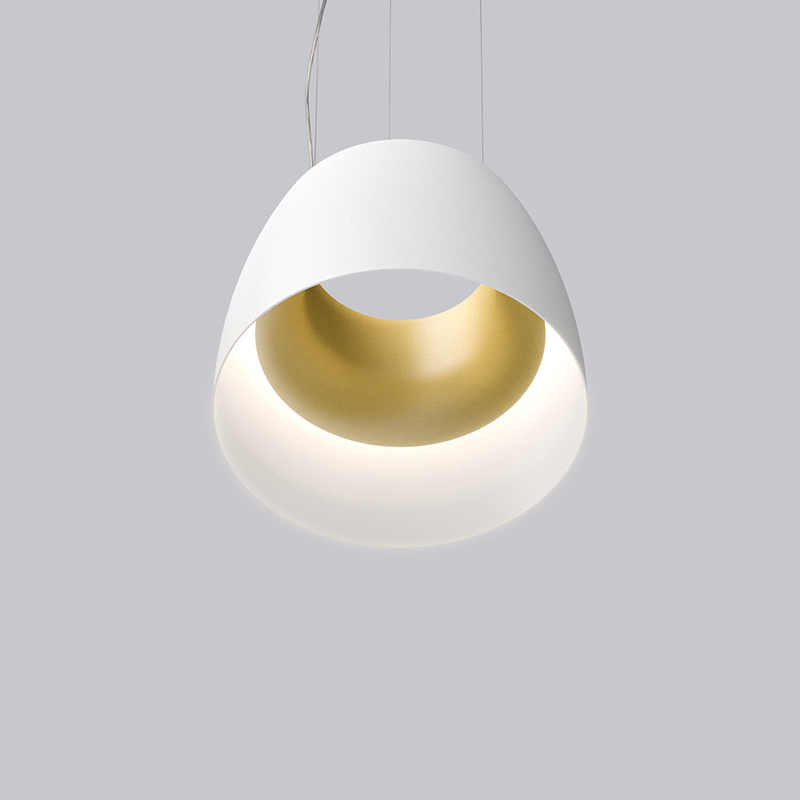

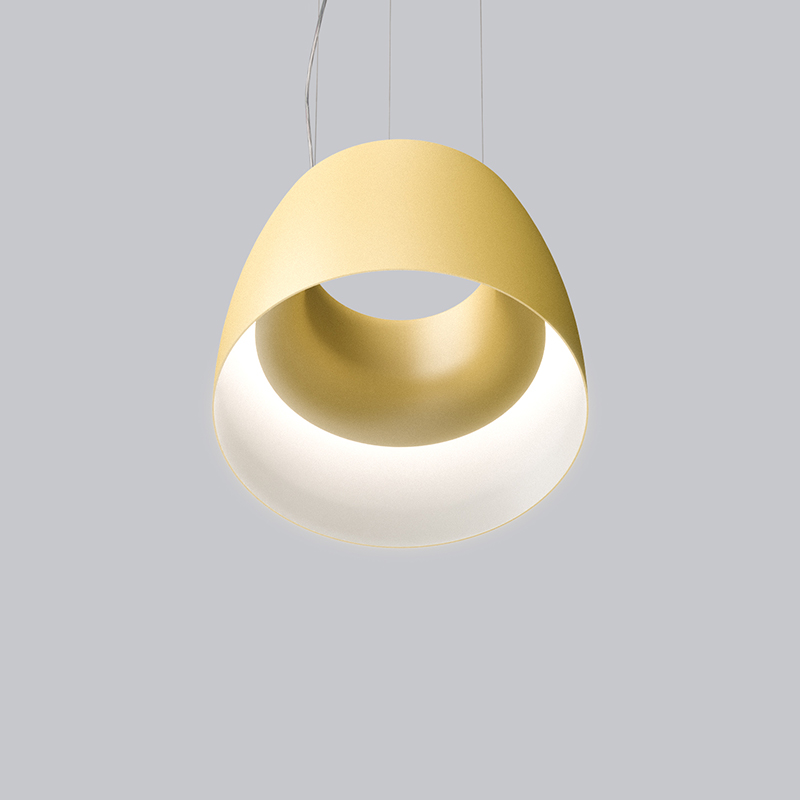

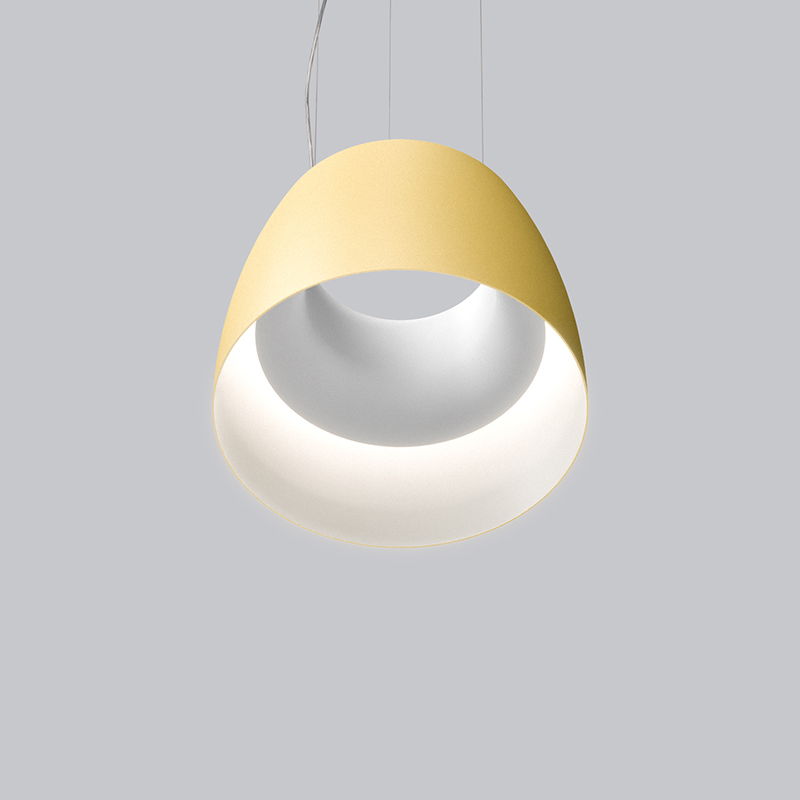

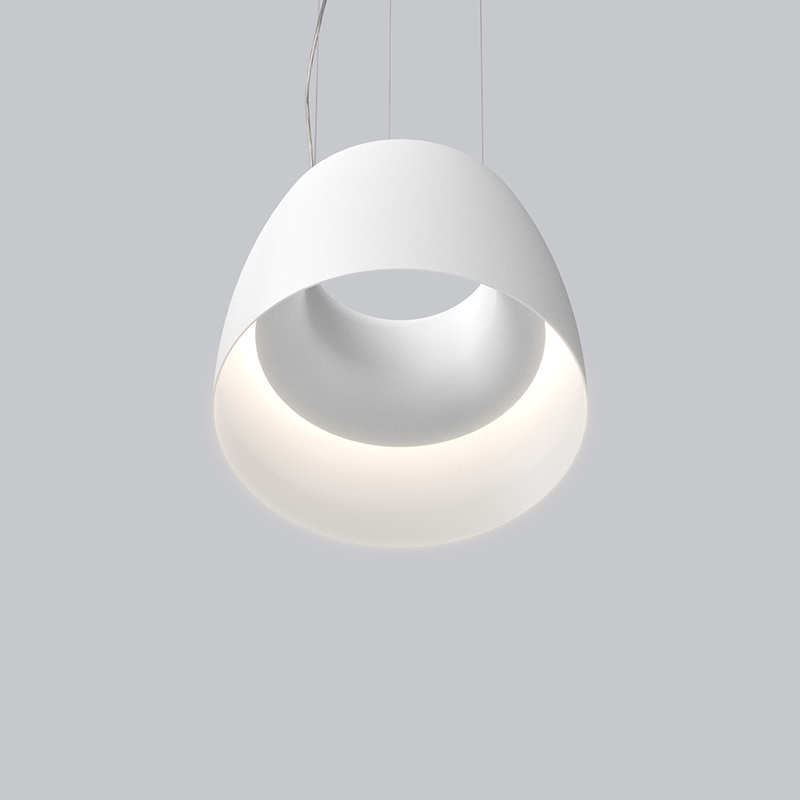

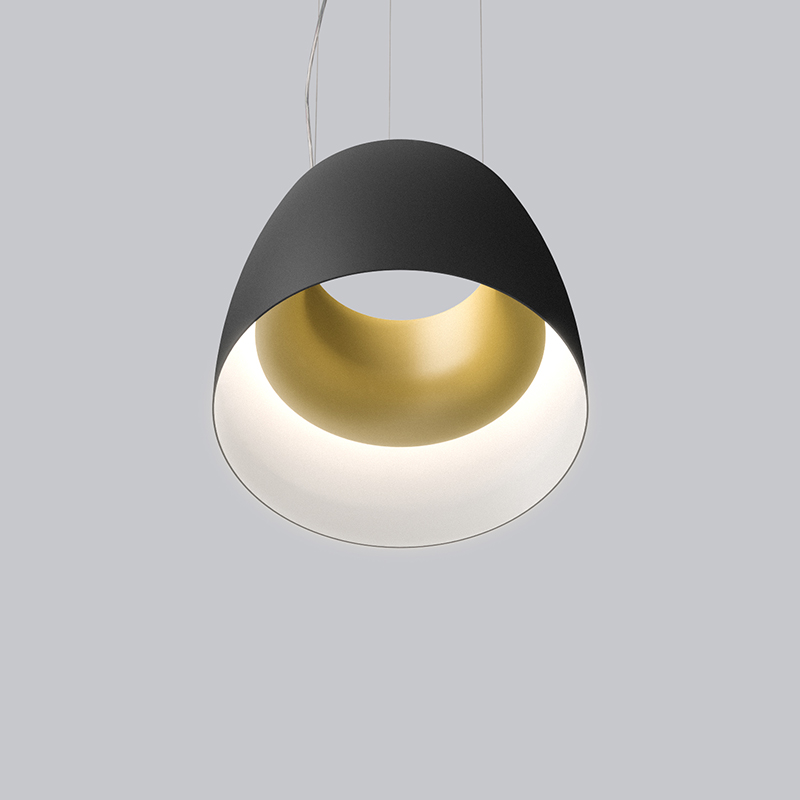

White, Anthracite or Gold polyester powder coating with highly reflective matte white polyester powder coating inside.
INTERIOR FINISH:
Highly reflective matte white polyester powder coating.
_Structure finish: ANTE | GOL | WHM
_Shade finish: ANTE | GOL | WHM
Hidden inside of an elegant form is a beautiful soft glow of LED illumination that encircles a surprising hollow core. Aperture is available in three formats, small, large and extra-large.
INSTALLATION:
Easy to install, adjust and level triple aircraft cable mounting.
LIGHT SOURCE:
Aperture features a custom LED light engine that is available with a standard phase or 0-10V dimming driver. Emergency option available.
EXTERIOR FINISH:
White, Anthracite or Gold polyester powder coating with highly reflective matte white polyester powder coating inside.
INTERIOR FINISH:
Highly reflective matte white polyester powder coating.
_Structure finish: ANTE | GOL | WHM
_Shade finish: ANTE | GOL | WHM
_nLight Air Enabled™
_Available light sources
LED.27.HO.DV
49W, LED HO 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.DP
34W, LED 2700K (Very Warm) PHASE DIMMING 120V
LED.27.DV
34W, LED 2700K (Very Warm) 0-10V DIMMING 120-277V
LED.27.NLIGHT
34W, LED 2700K (Very Warm) NLight Wired 120-277V
LED.27.NLTAIR2
34W, LED 2700K (Very Warm) NLight Air2 120-277V
LED.30.HO.DV
49W, LED HO 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.DP
34W, LED 3000K (Warm) PHASE DIMMING 120V
LED.30.DV
34W, LED 3000K (Warm) 0-10V DIMMING 120-277V
LED.30.NLIGHT
34W, LED 3000K (Warm) NLight Wired 120-277V
LED.30.NLTAIR2
34W, LED 3000K (Warm) NLight Air2 120-277V
LED.35.HO.DV
49W, LED HO 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.DP
34W, LED 3500K (Natural) PHASE DIMMING 120V
LED.35.DV
34W, LED 3500K (Natural) 0-10V DIMMING 120-277V
LED.35.NLIGHT
34W, LED 3500K (Neutral) NLight Wired 120-277V
LED.35.NLTAIR2
34W, LED 3500K (Neutral) NLight Air2 120-277V
LED.40.HO.DV
49W, LED HO 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.DP
34W, LED 4000K (Neutral) PHASE DIMMING 120V
LED.40.DV
34W, LED 4000K (Neutral) 0-10V DIMMING 120-277V
LED.40.NLIGHT
34W, LED 4000K (Neutral) NLight Wired 120-277V
LED.40.NLTAIR2
34W, LED 4000K (Neutral) NLight Air2 120-277V

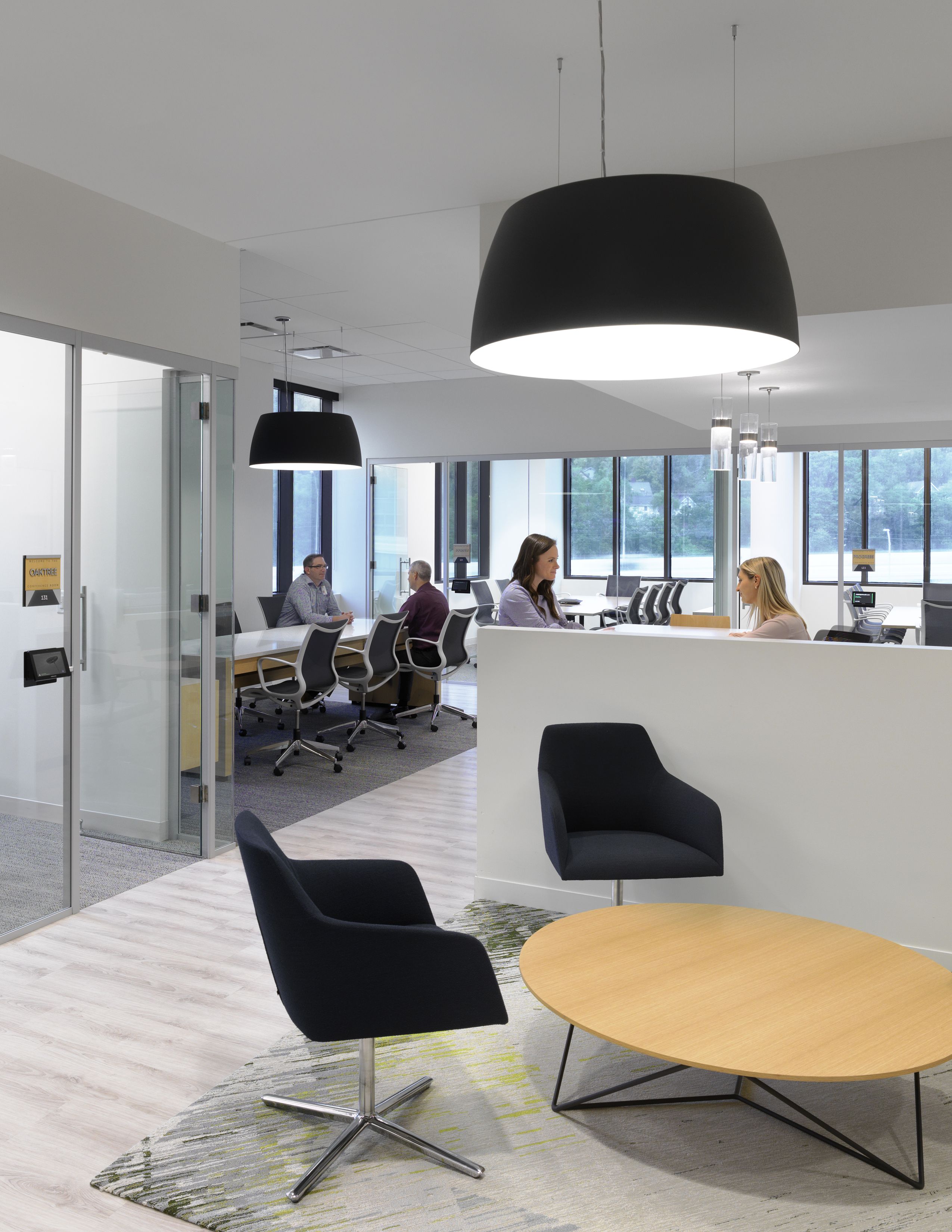

_Projects Featuring Aperture
